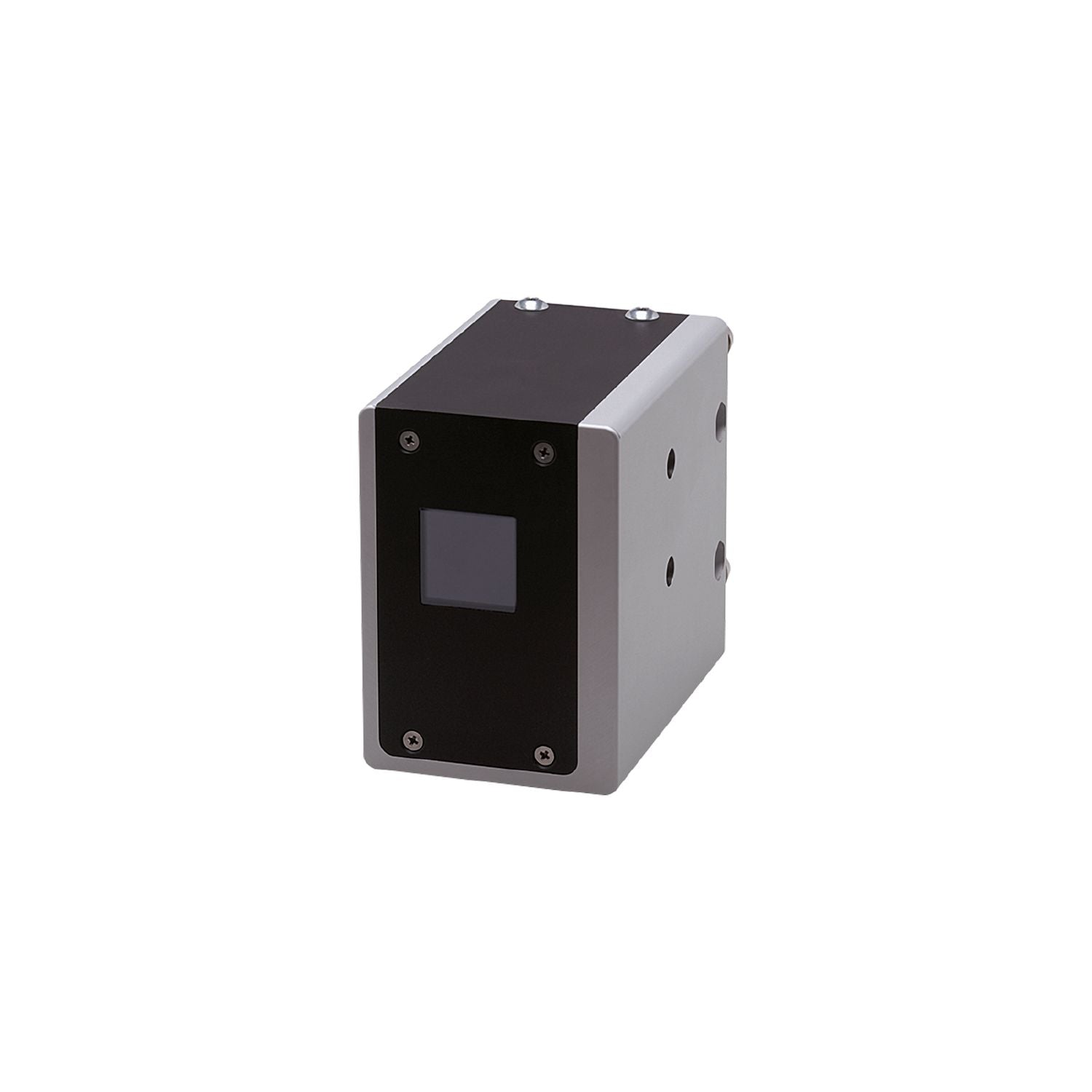

IFM E21248 - Cooling boxes and protective housings for distance sensors COOLING BOX O1D

Use for ambient temperatures up to 180 °C.
Robust metal housing with integrated cooling circuit.
Water or air cooling possible.
Reliable protection against very harsh environmental conditions.
For optical distance sensors type O1D

Design	protective housing with an active cooling system for types O1D
Pressure rating [bar]	10

Operating conditions

Ambient temperature [°C]	-10...180

Weight [g]	1270.5
Dimensions [mm]	112 x 70 x 108
Materials	housing: aluminium uncoloured anodised; cover: aluminium black anodised; bezel: aluminium black anodised; front pane: float glass; Cable gland: brass nickel-plated; nozzle: brass nickel-plated; Sealing: FKM

Accessories

Items supplied	socket head screws: 2 x M4 x 45 hexagon nuts: 2

Pack quantity	1 pcs.

Diagrams and graphsifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21248-00 — 07.10.2016 —
