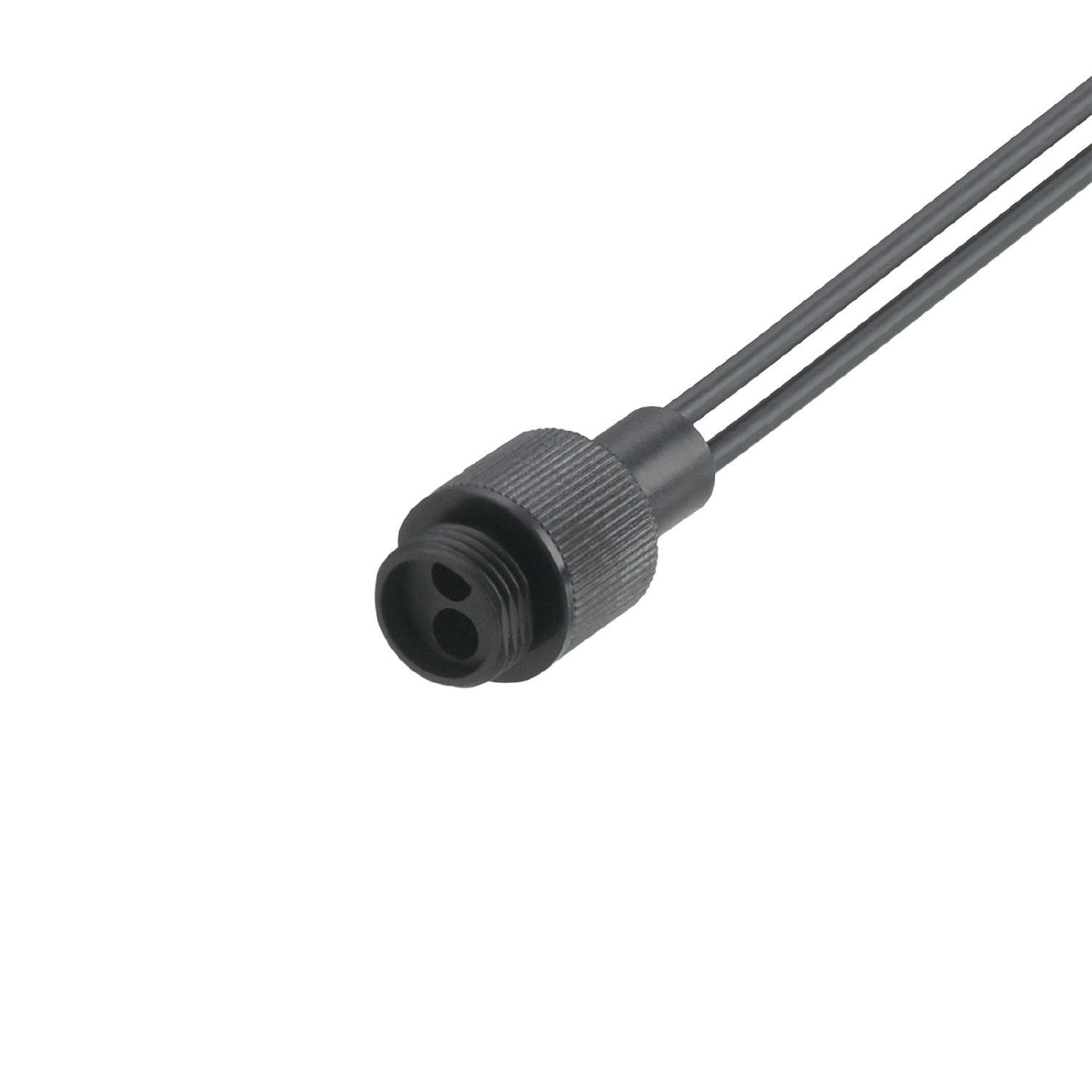

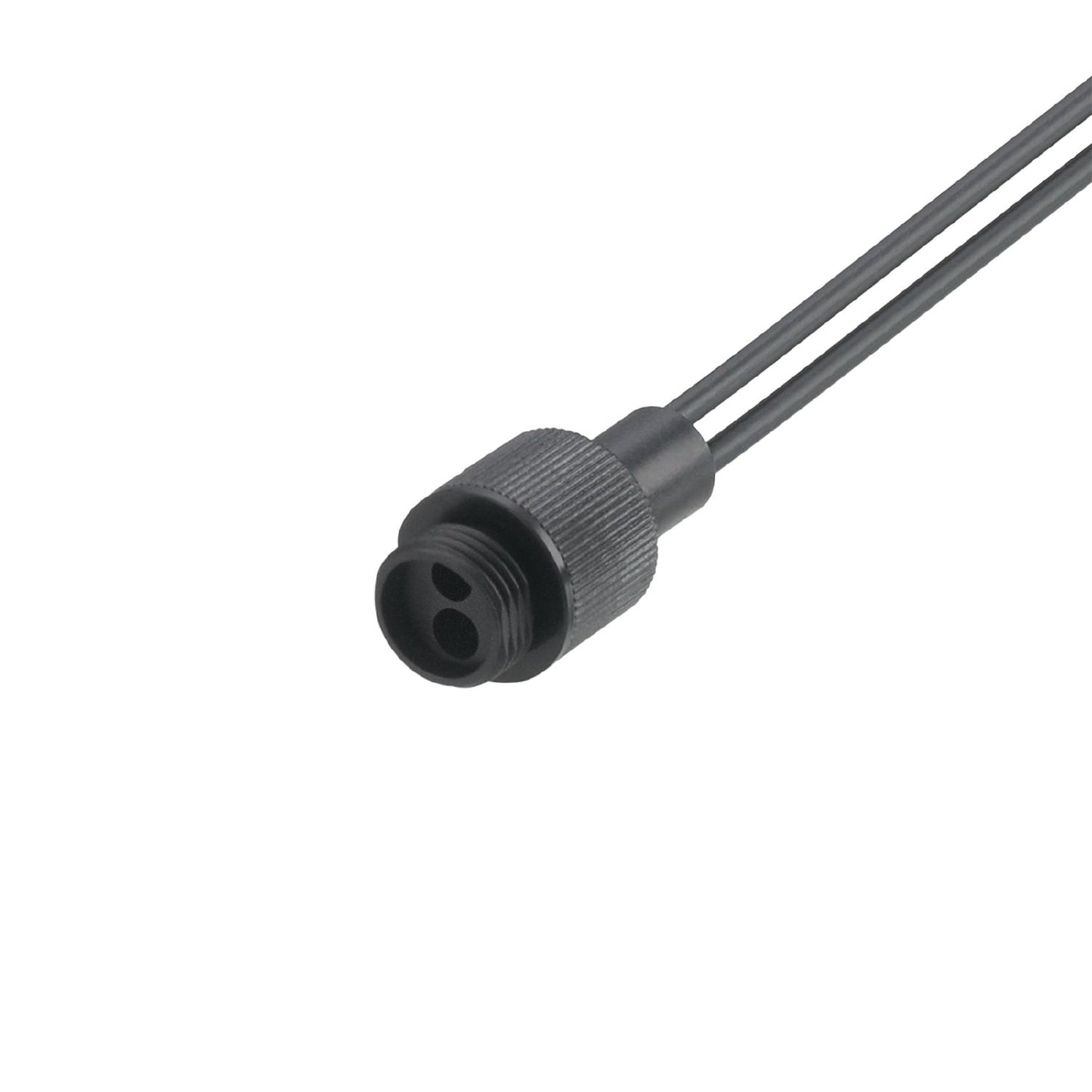

IFM E21327 - Adapter for fibre optics ADAPTER FOR FIBER OPTICS

Easy, quick and inexpensive fixing.
For the adaptation of fibre optics to fibre-optic amplifiers

Design	for fibre optics M11

Operating conditions

Ambient temperature [°C]	-25...60

Weight [g]	30.9
Total length [mm]	450;(wirable)
Min. bending radius [mm]	30
Fibre arrangement
Core diameter [mm]	1.0
External diameter [mm]	2.2
Materials	Adapter: ABS; PPE; POM
Fibre material	PMMA
Fibre sheath material	PE

Accessories

Accessories (optional)	Cutter for fibre optics, E20600

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21327-00 — 12.08.2022 —
