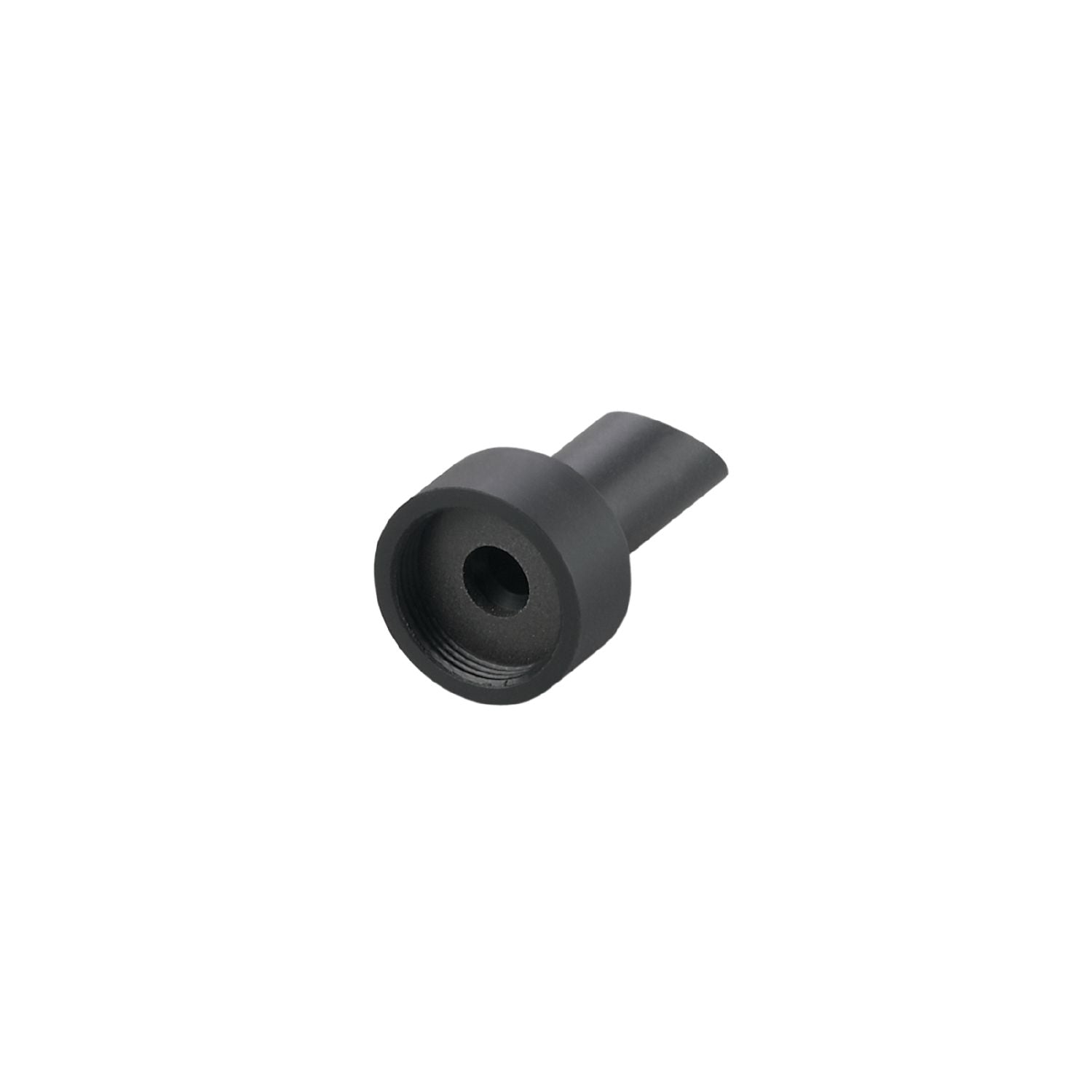

Sound Tube for focusing the sound. Increased sensor diaphragm protection
Design
for all ifm ultrasonic sensors with M30 thread and maximum range of 3.5 m
Weight [g]
24.5
Materials
POM
Sealing
Gasket
Pack quantity
1 pcs.
Diagrams and graphs
standard sound beam with sound tube
medium sound beam with sound tube
narrow sound beam with sound tube
1
distance
2
Detection zone
3
switch-on/switch-off graph
4
Target
5
50% of the target in the detection zone
6
switch point
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E23007-00 — 10.11.2020 —
