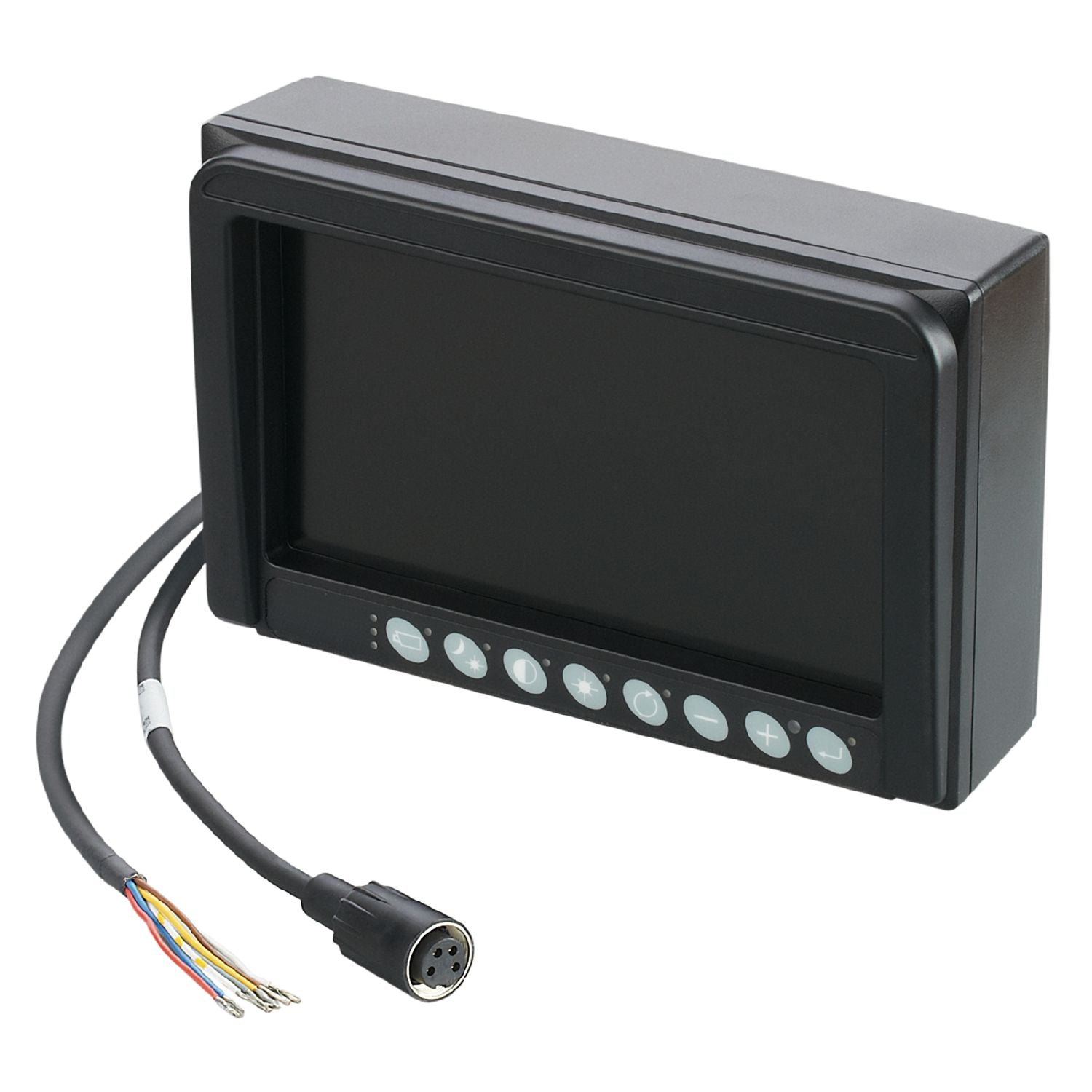

IFM E2M231 - monitor with one analogue video input MONITOR ANALOGUE VIDEO INPUT/1 PORT

Application	Monitor for up to 1 O2M2xx / O3M2xx camera

Operating voltage [V]	12...32 DC;(± 10%)
Overvoltage protection	yes
Power supply for camera [mA]	2000;(± 10%)

Inputs

Video input	1 Vtt, 75 Ω, PAL 50 Hz, 4,43 MHz color sub carr

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...125
Storage humidity [%]	< 75;(relative humidity)
Shelf life [MON]	24
Protection	IP 67

Tests / approvals

Shock resistance	15,3 G(rms) Frequency range 24...2000 Hz PSD 0,04...0,10 g²/Hz

Weight [g]	1202.5
Materials	housing: ABS black; fixture: aluminium black

Displays / operating elements

Display type	colour display
Display size	7"

Remarks	Spannungsbereich auf dem Typenschild beachten Ältere Versionen des Gerätes verwenden einen Spannungsbereich von 18...30 VDC (Revisionsnr. AA)
Pack quantity	1 pcs.

Electrical connection - socket

Connection	Cable: 2 m
Connection	Connector: 1 x M16; coding: A
