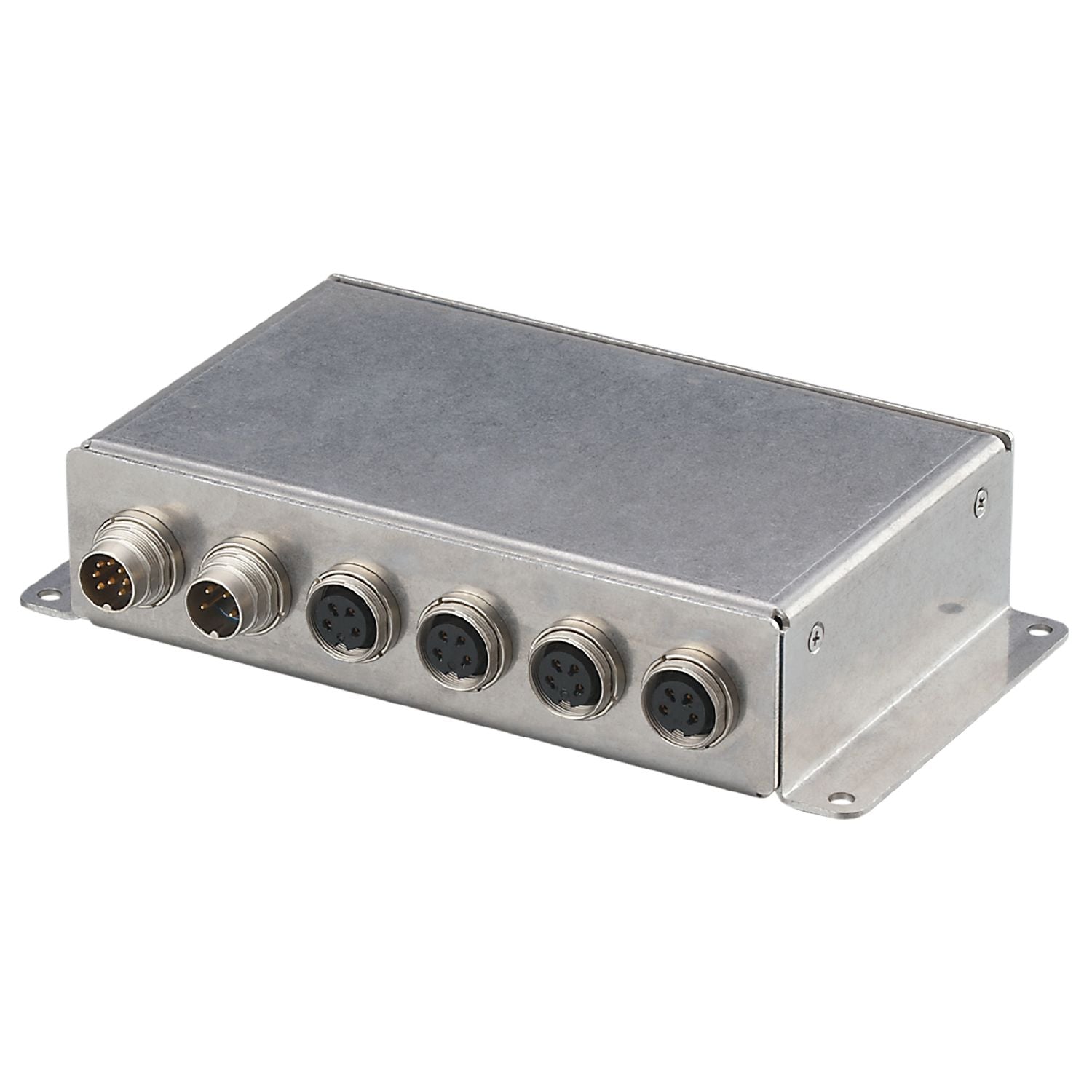

Video splitter for up to four camera images. With nine different display types including bird view for a round-about view of four camera images. Universal use due to analogue video output. Robust fully potted housing for use in mobile machines
Image resolution [px]
680 x 480
Operating voltage [V]
10...32 DC
Current consumption [mA]
< 770
Overvoltage protection
yes
Detection zone
Image resolution [px]
680 x 480
Operating conditions
Ambient temperature [°C]
-40...85
Storage temperature [°C]
-40...125
Storage humidity [%]
< 75;(relative humidity)
Shelf life [MON]
24
Protection
IP 67;(ISO 20653)
Tests / approvals
EMC
DIN EN 61000-6-4
industrial environments
DIN EN 61000-6-2
industrial environments
Shock resistance
50 g
Vibration resistance
Frequency range 24...2000 Hz
(15.3 x 9.81 m/s²)rms
PSD (g²/Hz)
0.04...0.1
Weight [g]
1569.5
Materials
housing: stainless steel (316 / 1.4401)
Accessories
Items supplied
Protective covers
Pack quantity
1 pcs.
Electrical connection - ..C4
Connector: 4 x M16; coding: A
Electrical connection - INPUT
Connector: 1 x M16; coding: A
Electrical connection - OUTPUT
Connector: 1 x M16; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M250-01 — 09.01.2017 —
