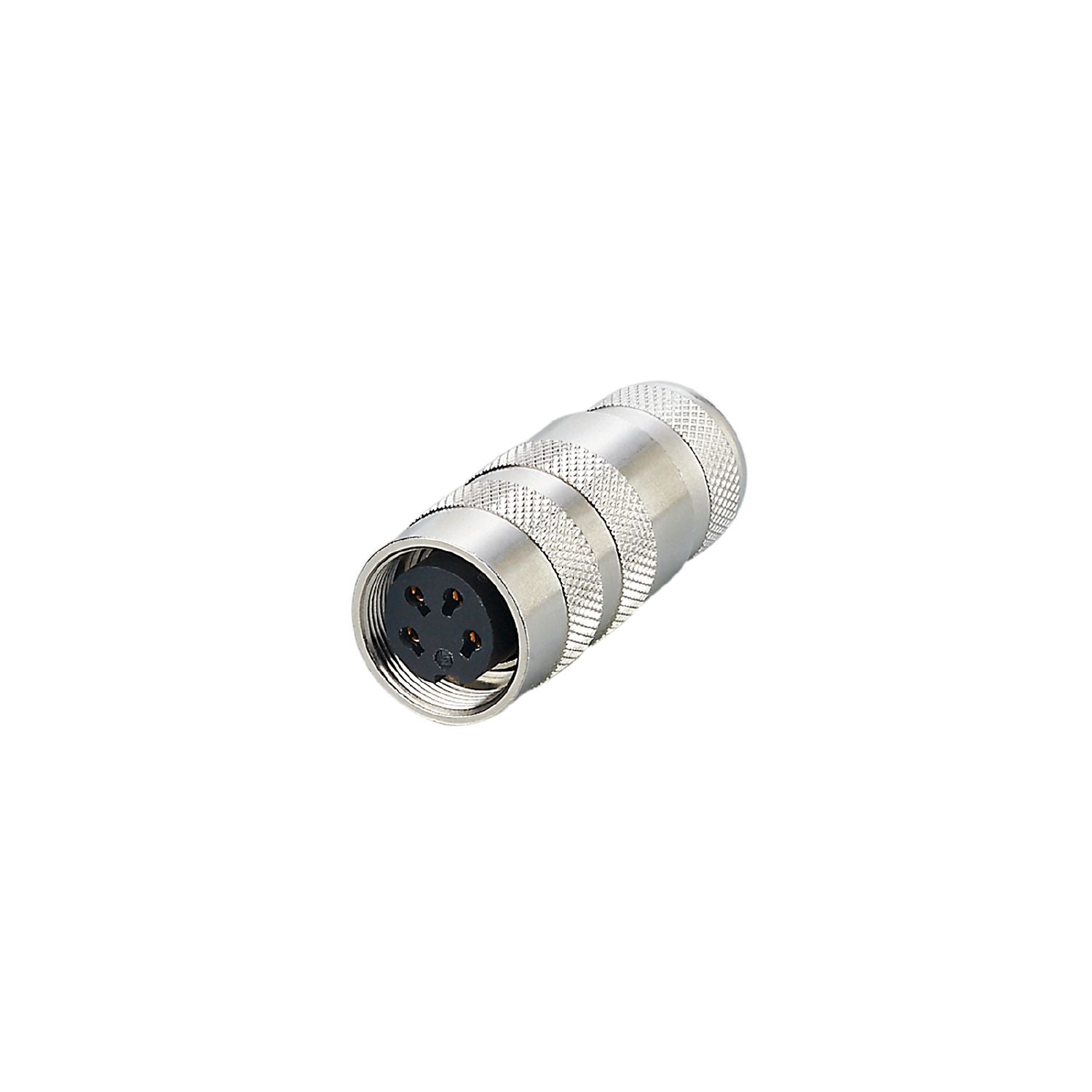

IFM E2M261 - Wirable socket WIRABLE SOCKET M16 4P FEMALE

Special feature	Gold-plated contacts

Operating voltage [V]	< 250 DC
Protection class	III
Max. current load total [A]	6

Operating conditions

Ambient temperature [°C]	-30...95
Protection	IP 67
Pollution degree	1

Weight [g]	42.9
Materials	housing: brass nickel-plated; Sealing: PBT
Moulded-body material	brass, nickel-plated
Sealing material	PBT

Pack quantity	1 pcs.

Electrical connection - socket

Connection	4 x 0.75 mm²; Cable sheath: Ø 4.1...7.8 mm
Connection	Connector:M16, straight; Moulded body: brass, nickel-plated; Sealing: PBT; Contacts: gold-plated
