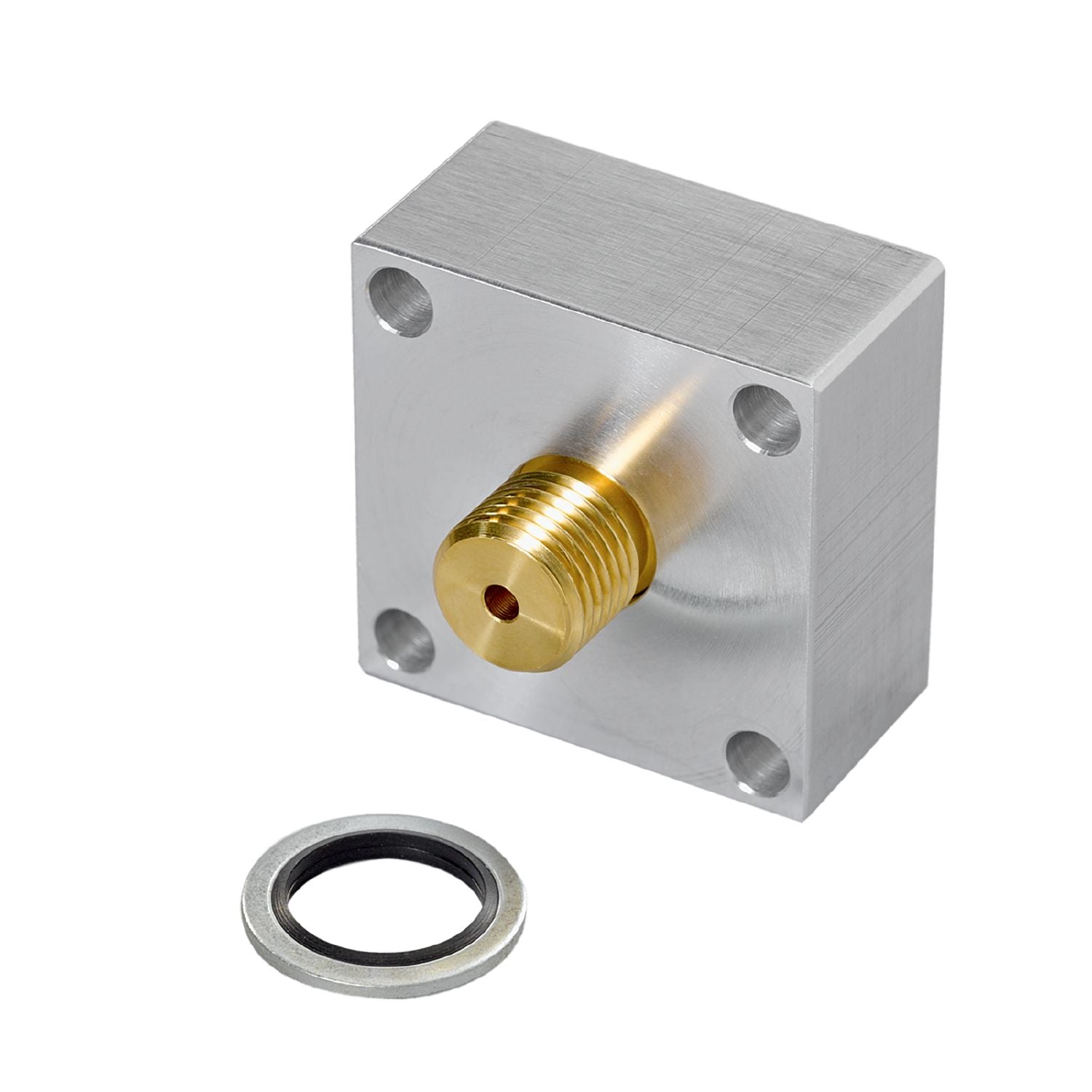

IFM E30003 - Flange adapter for process sensors FLSH ADAPT PX 31,1

Quick and easy mounting.
High pressure rating.
Robust design for use in harsh industrial environments.
Good sealing due to O-ring

Pressure rating [bar]	200

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	119
Materials	Sealing: NBR; flange: aluminium; hollow screw: brass
Sensor connection	G 1/4
Process connection	flange

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30003-00 — 26.06.2013 —
