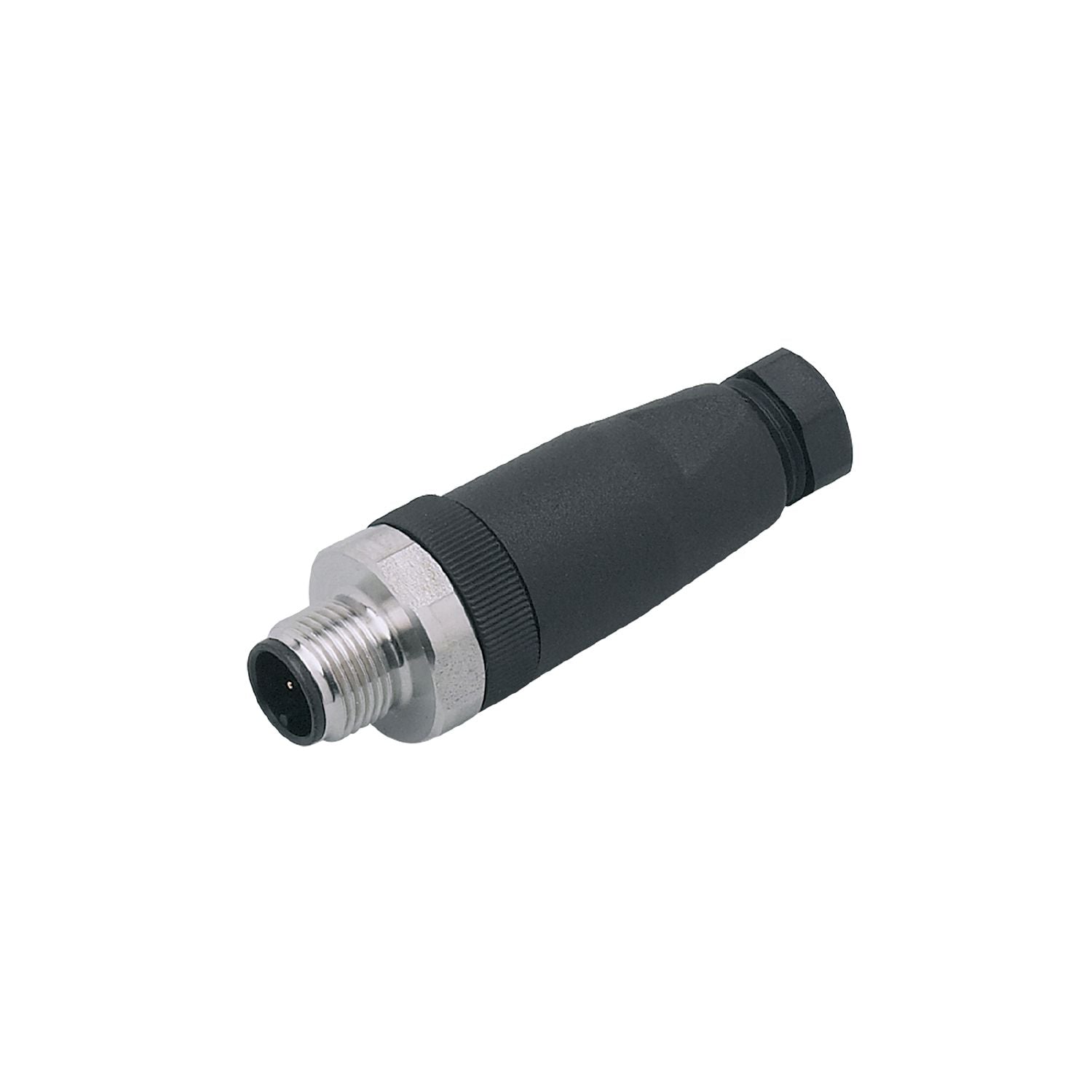

IFM E30019 - Wirable plug SSTGH040VASFPKG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Special feature	Gold-plated contacts

Operating voltage [V]	10...55 DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	23
Dimensions [mm]	20 x 20 x 52
Materials	PA
Moulded-body material	PA
Material nut	stainless steel (1.4571/316Ti )

Pack quantity	1 pcs.

Electrical connection

	terminals: ...0.75 mm²; Cable sheath: Ø 4...6 mm

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA; Locking: stainless steel (1.4571/316Ti ); Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30019-00 — 06.03.2003 —
