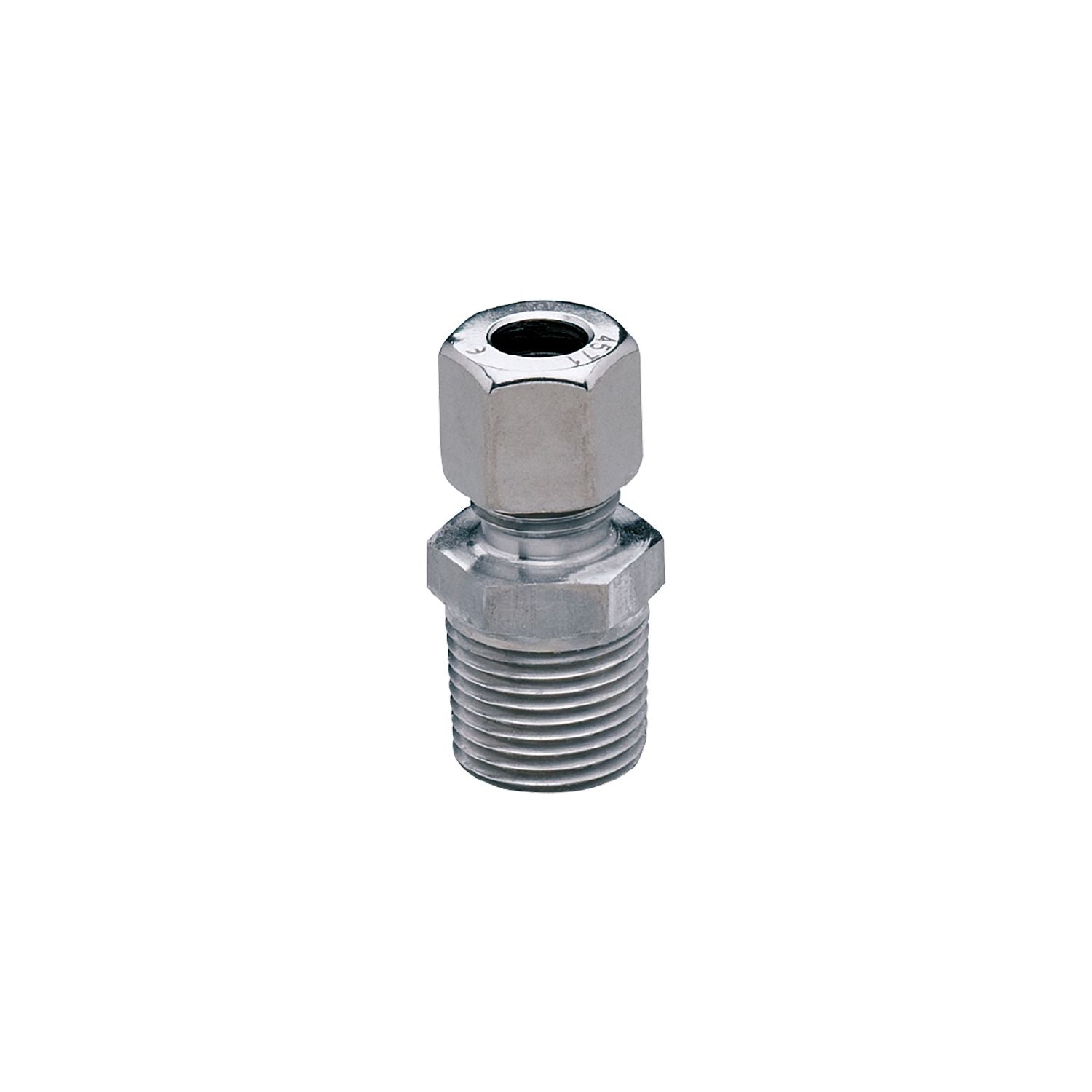

IFM E30024 - Progressive ring fitting PROGRESSIVE RG FITTING D10 NPT

Quick and easy mounting of temperature sensors.
User-friendly setting of the requested immersion depth of the sensor.
Robust design for use in harsh industrial environments.
High pressure rating

Installation	Progressive ring fitting
Pressure rating [bar]	50

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	84.9
Materials	stainless steel (1.4571/316Ti )
Sensor connection	Ø 10 mm
Process connection	threaded connection 1/2" NPT

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30024-01 — 07.08.2012 —
