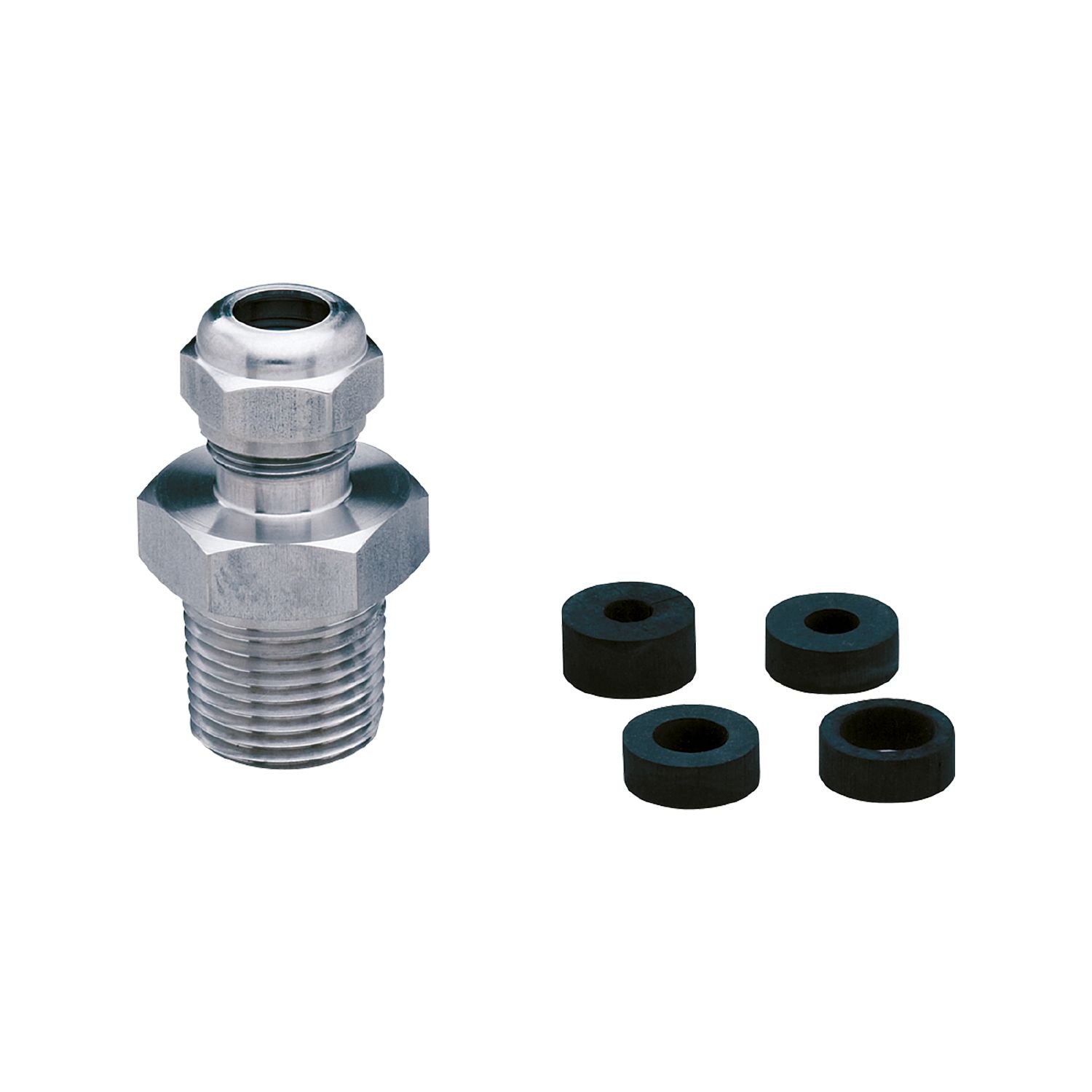

IFM E30025 - Clamp fitting for process sensors CLAMP FITTING 1/2NPT

For the installation of temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Stable fixing by screwing in.
Use in liquids and gases.
Easy adjustment of the immersion depth of the sensor

Design	for temperature sensors
Application	for industrial applications
Installation	Clamp fitting
Media	liquids and gases
Pressure rating [bar]	1

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	98.4
Materials	stainless steel (1.4305 / 303); FKM
Sensor connection	Ø 6 mm / Ø 8 mm / Ø 10 mm
Process connection	threaded connection 1/2" NPT

Accessories

Items supplied	O-rings: 3 x Ø 10 mm, 8 mm, 6 mm, closed O-rings: 1, slotted

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30025-00 — 10.11.2014 —
