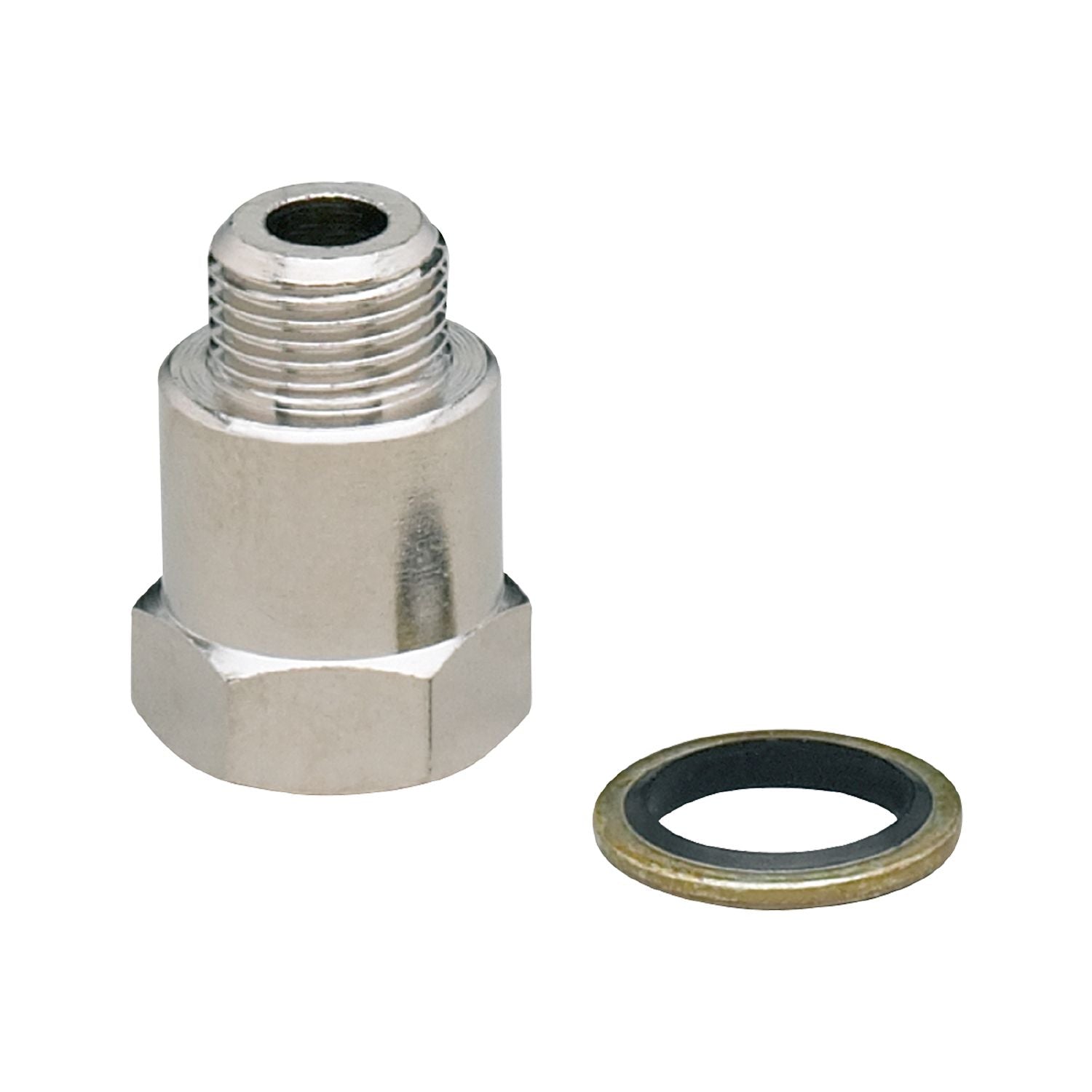

IFM E30075 - Thread extension THREAD EXTENSION G1/8

For extending the threads of process sensors.
Robust design for use in harsh industrial environments.
Requested sealing ring supplied with the unit.
Stable and secure hold for the sensor.
Quick and easy mounting and fixing
Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	56.5
Materials	brass nickel-plated; Sealing: NBR
Sensor connection	G 1/8
Process connection	threaded connection G 1/8

Accessories

Items supplied	O-rings: 1

Pack quantity	4 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30075-00 — 20.05.2003 —
