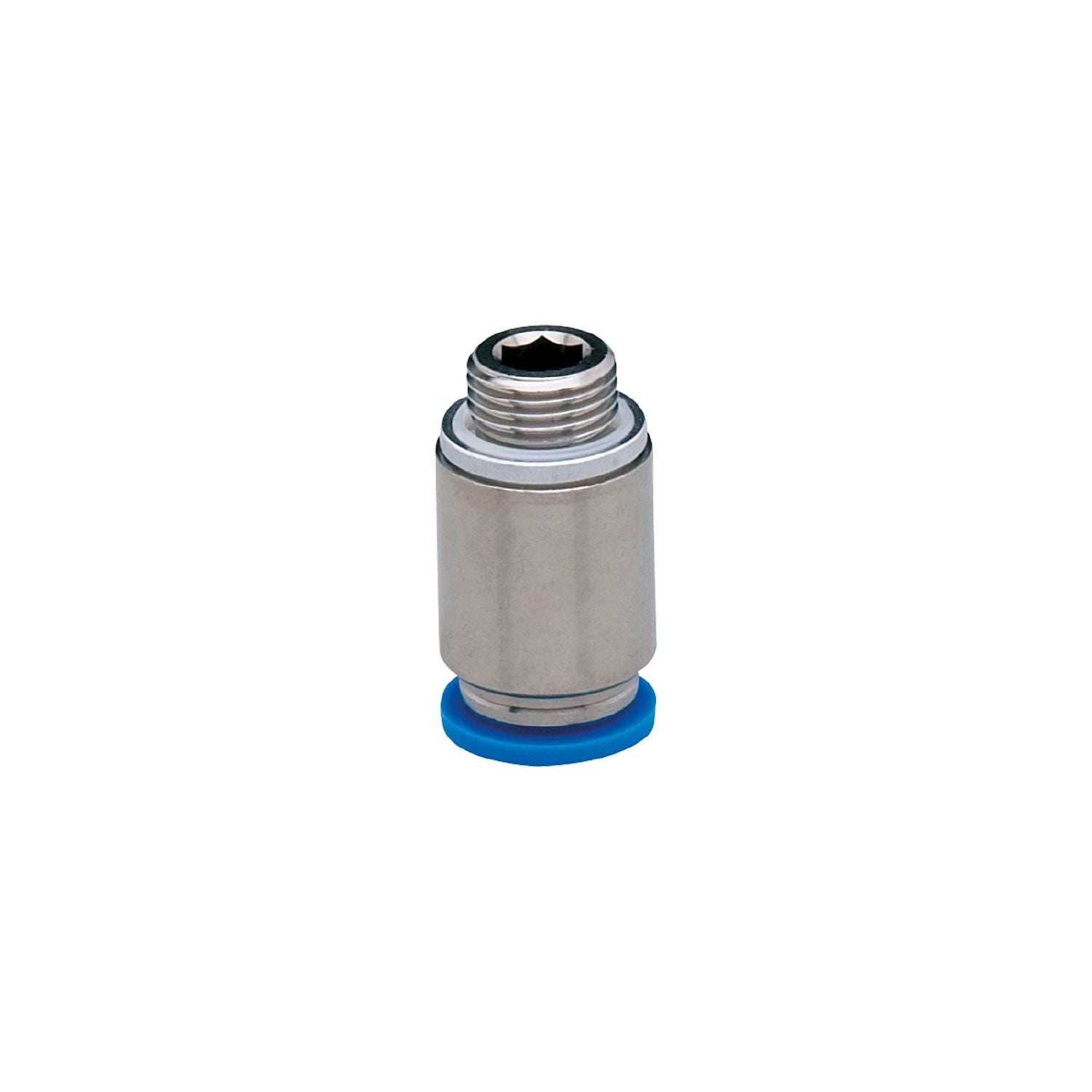

IFM E30077 - Pneumatic push-in air fitting PLUG CONNECTION QS-G1/8-8

User-friendly fitting in pneumatic applications.
Safe fixing of the tube.
Good sealing due to O-ring.
Suited for compressed air and vacuum

Design	for tube Ø 8 mm

Weight [g]	47.8
Materials	steel; PBT; brass; aluminium
Sensor connection	threaded connection G 1/8 external thread
Process connection	clamp adapter Ø 8 mm

Pack quantity	4 pcs.
