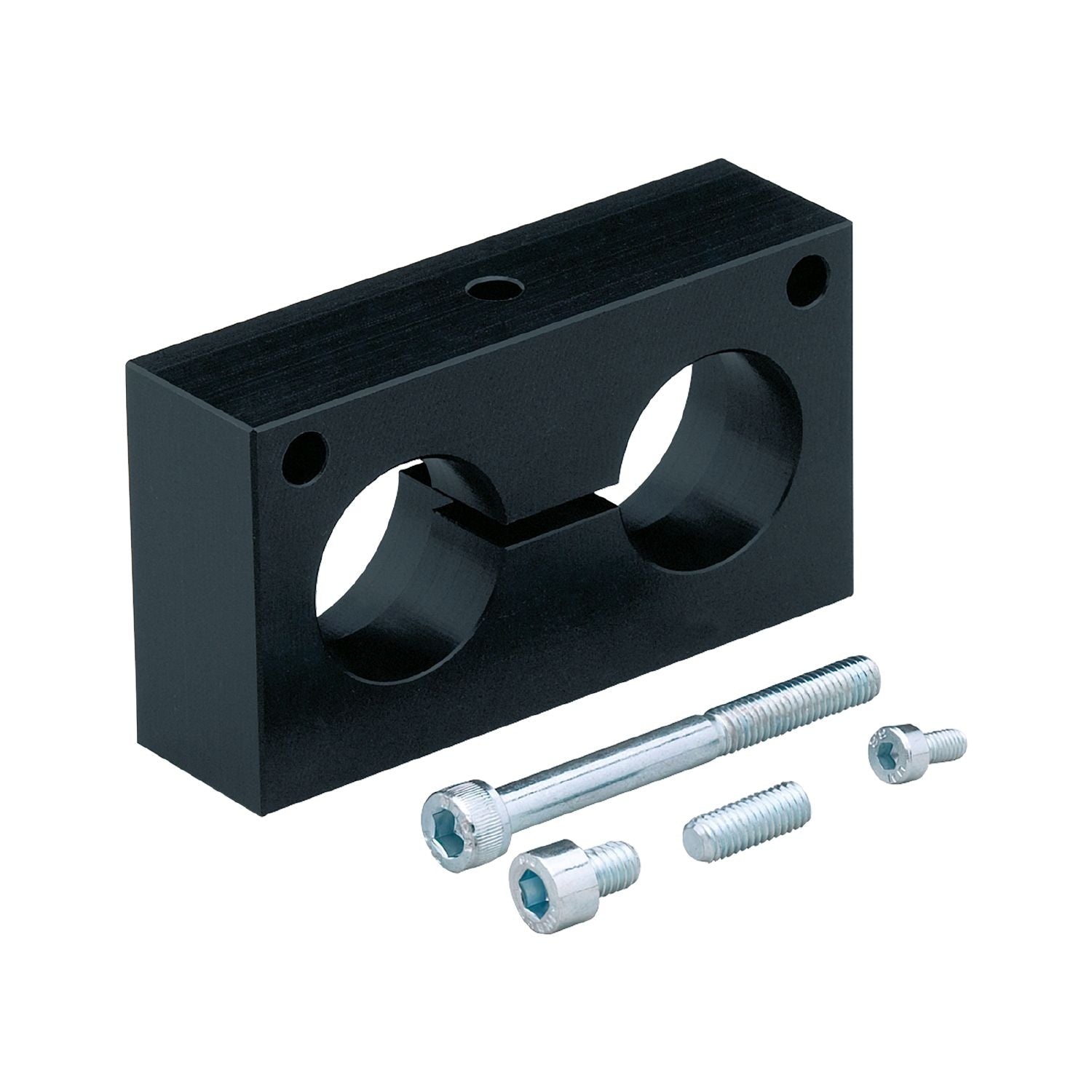

IFM E30078 - 2-way mounting device for process sensors MOUNTIG DEVICE 2 WAY

For mounting cylindrical sensors.
Easy, quick and inexpensive fixing.
Reliable fixing by clamping with two screws

Design	for fluid sensors

Weight [g]	124.5
Materials	POM

Accessories

Items supplied	head cap screw: 1 x M6 x 60, ISO 4762 head cap screw: 1 x M4 x 8, ISO 4762 head cap screw: 1 x M6 x 8, ISO 4762 set screw: 1 x M6 x 16, DIN 913

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30078-00 — 26.06.2013 —
