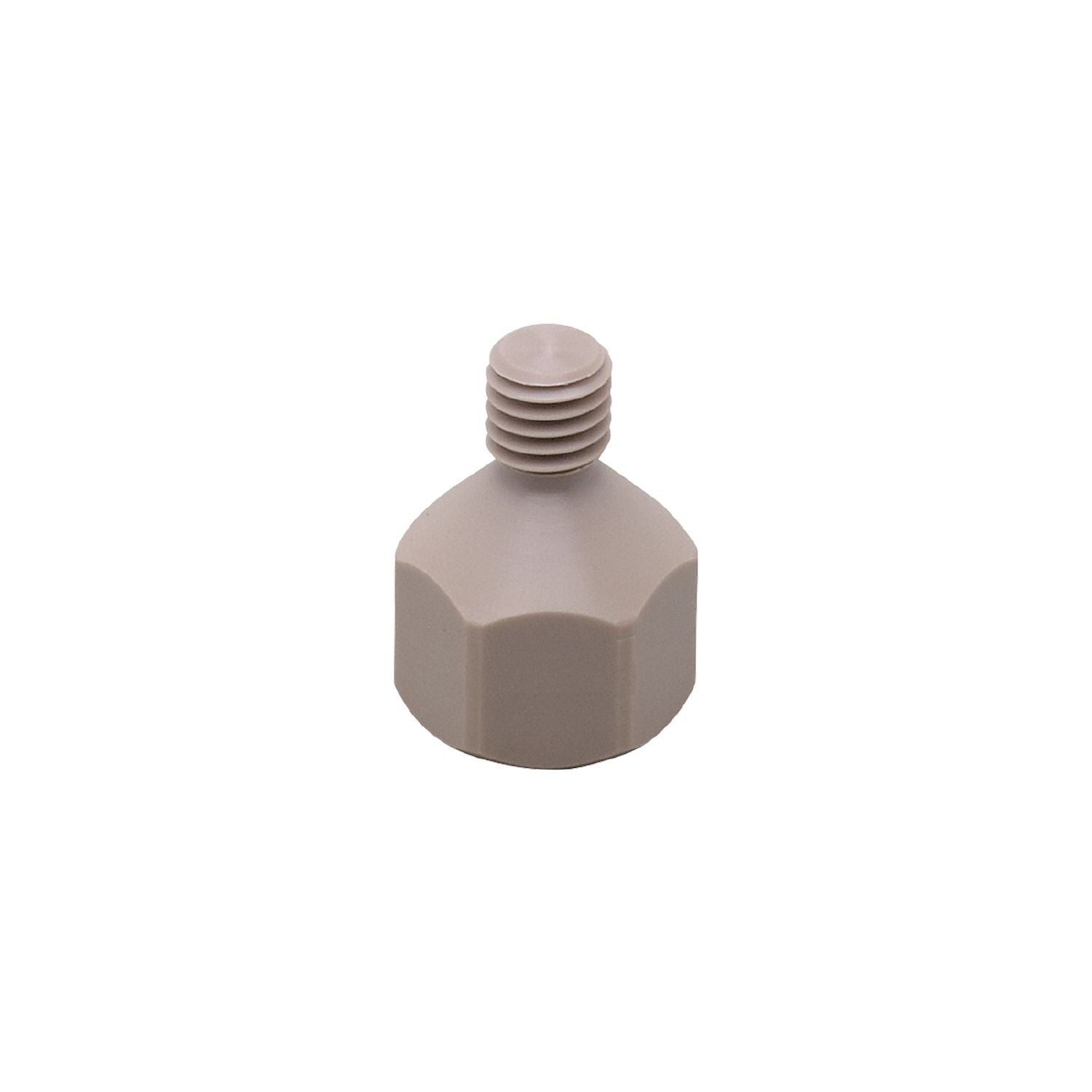

IFM E30132 - Screw-in adapter for vibration sensors PEEK-ADAPTER

Reliable mounting on the machine surface.
For use with non-standard ground

Design	for vibration sensors VSA001, VSA101, VSA201

Operating conditions

Ambient temperature [°C]	-30...260
Note on ambient temperature	briefly: 300 °C

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	8.2
Dimensions [mm]	M8
Thread designation	M8
Materials	PEEK
Process connection	threaded connection

Remarks	When necessary, secure the thread with industrially compatible glue, e.g. DELO - ML 5249
Pack quantity	1 pcs.
