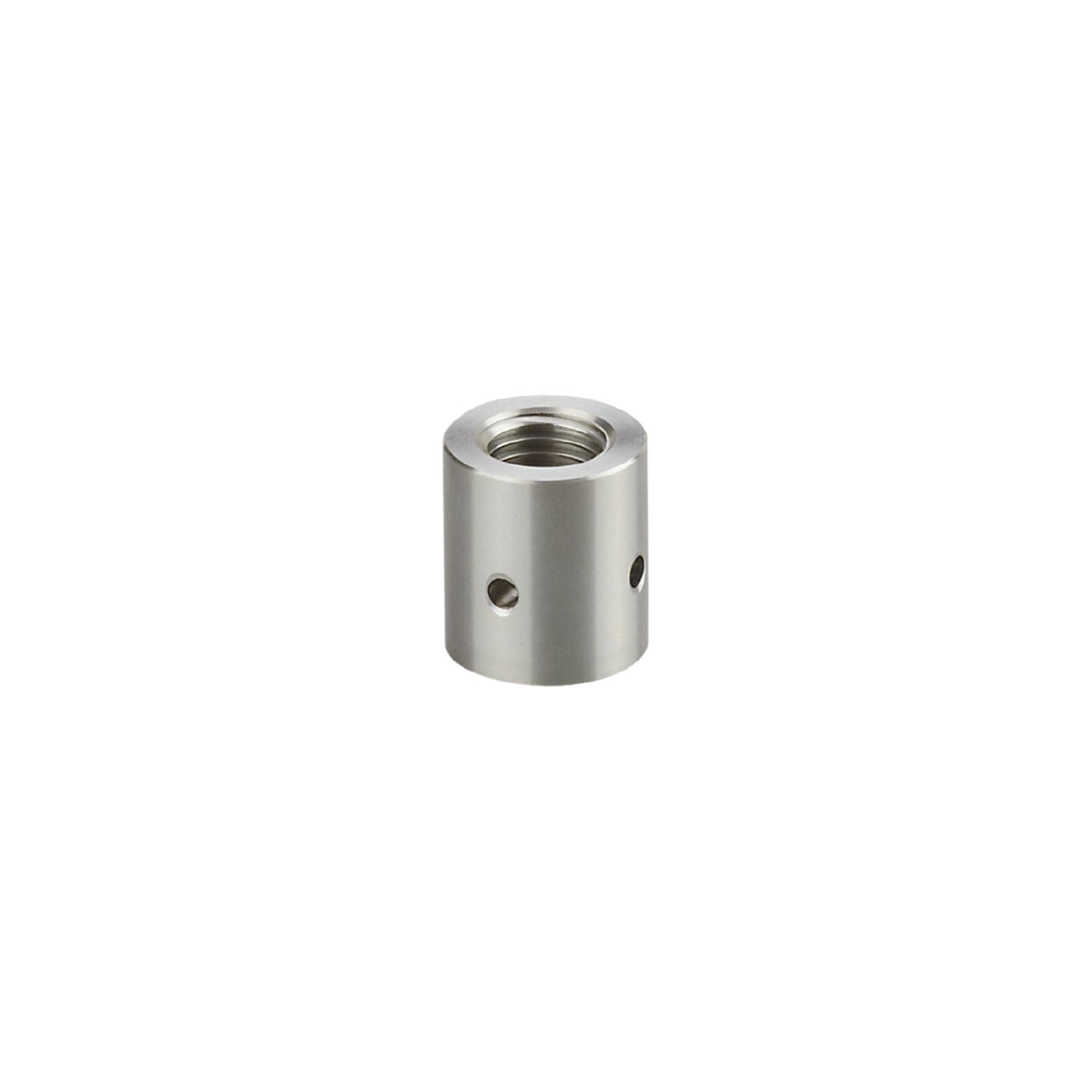

IFM E30152 - Welding adapter for process sensors ADAPT M12-WELDING 3A ACCESSORY

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments

Design	with leakage port
Medium temperature [°C]	< 250
Pressure rating [bar]	50

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	32.35
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	5...20
Sensor connection	M12 x 1,5 sealing cone
Process connection	welding adapter Ø 19 mm

Pack quantity	1 pcs.
