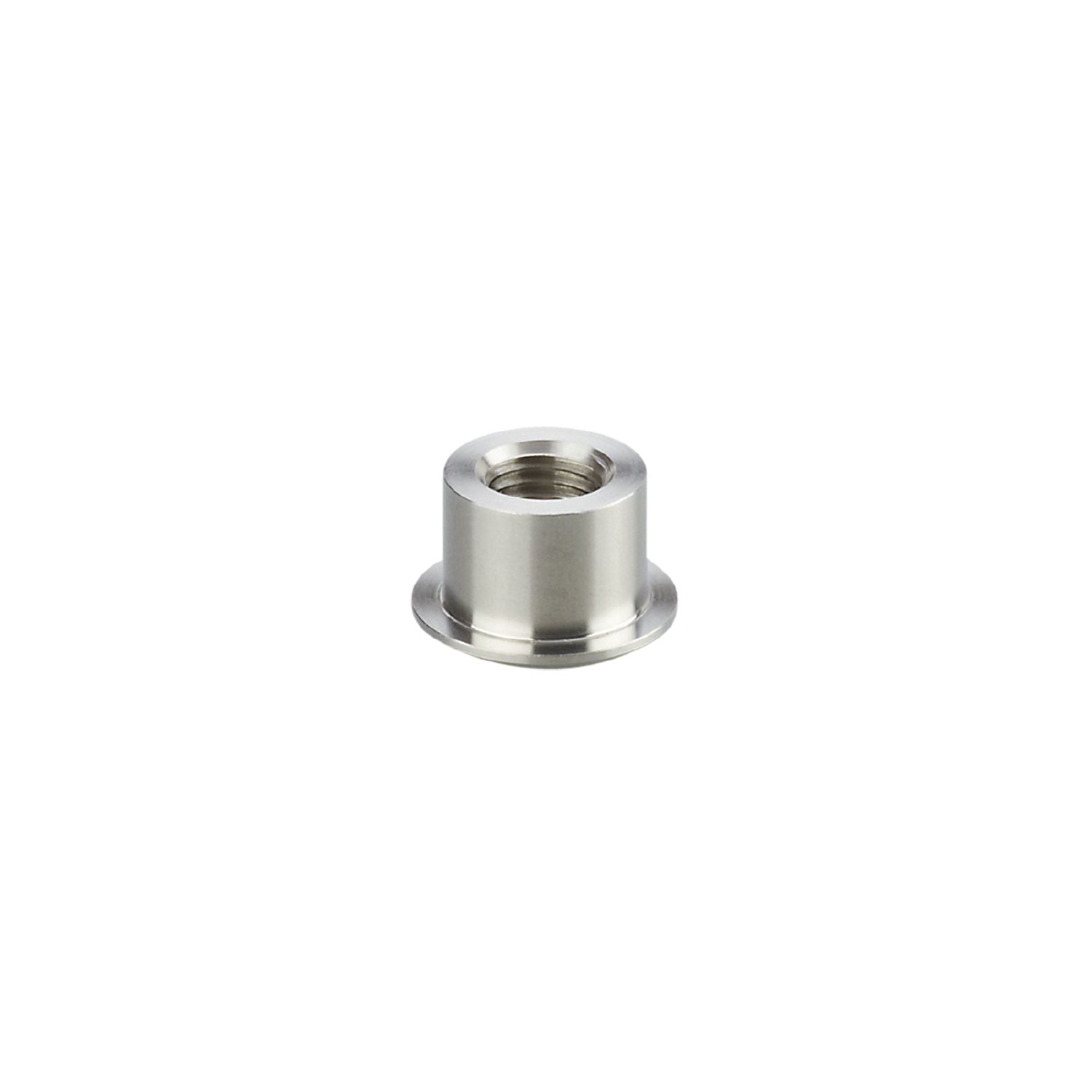

IFM E30153 - Welding adapter for process sensors ADAPT M12-WELDING SHOULDER ACCESSORY

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments

Medium temperature [°C]	< 250
Pressure rating [bar]	50

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	36.2
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	5...20
Sensor connection	M12 x 1,5 sealing cone
Process connection	welding adapter Ø 25 mm

Pack quantity	1 pcs.
