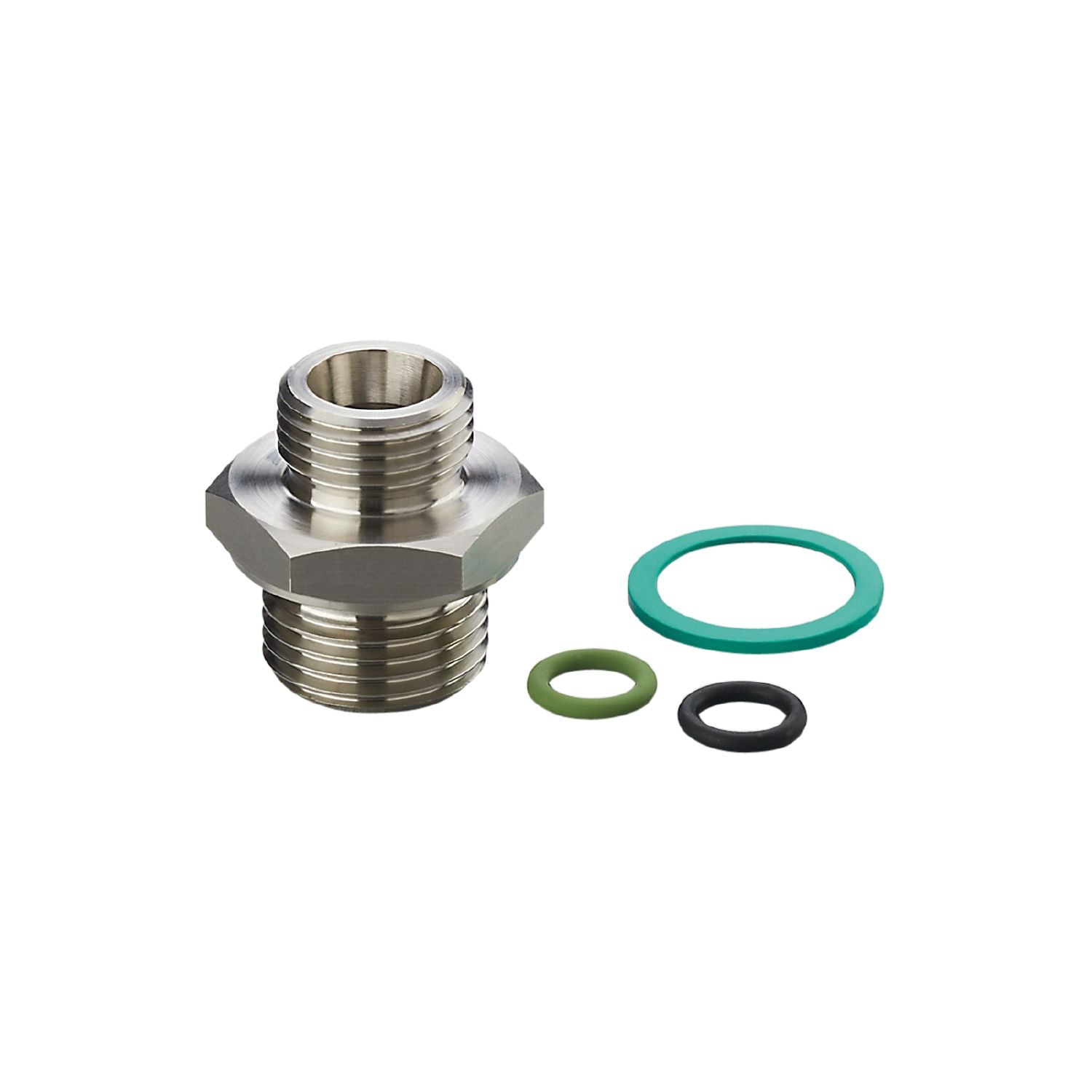

IFM E30418 - Screw-in adapter for process sensors ADAPT TN/G1/2/VA/O-RG

For the installation of temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Very high pressure rating.
Stable fixing by screwing in

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	300

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	61.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M18 x 1,5 internal thread
Process connection	threaded connection G 1/2
Insertion depth [mm]	21;(measuring probe SID, SFD, TN)

Accessories

Items supplied	O-ring: 1, FKM O-ring: 1, EPDM Gasket: 1, FKM

Pack quantity	1 pcs.
