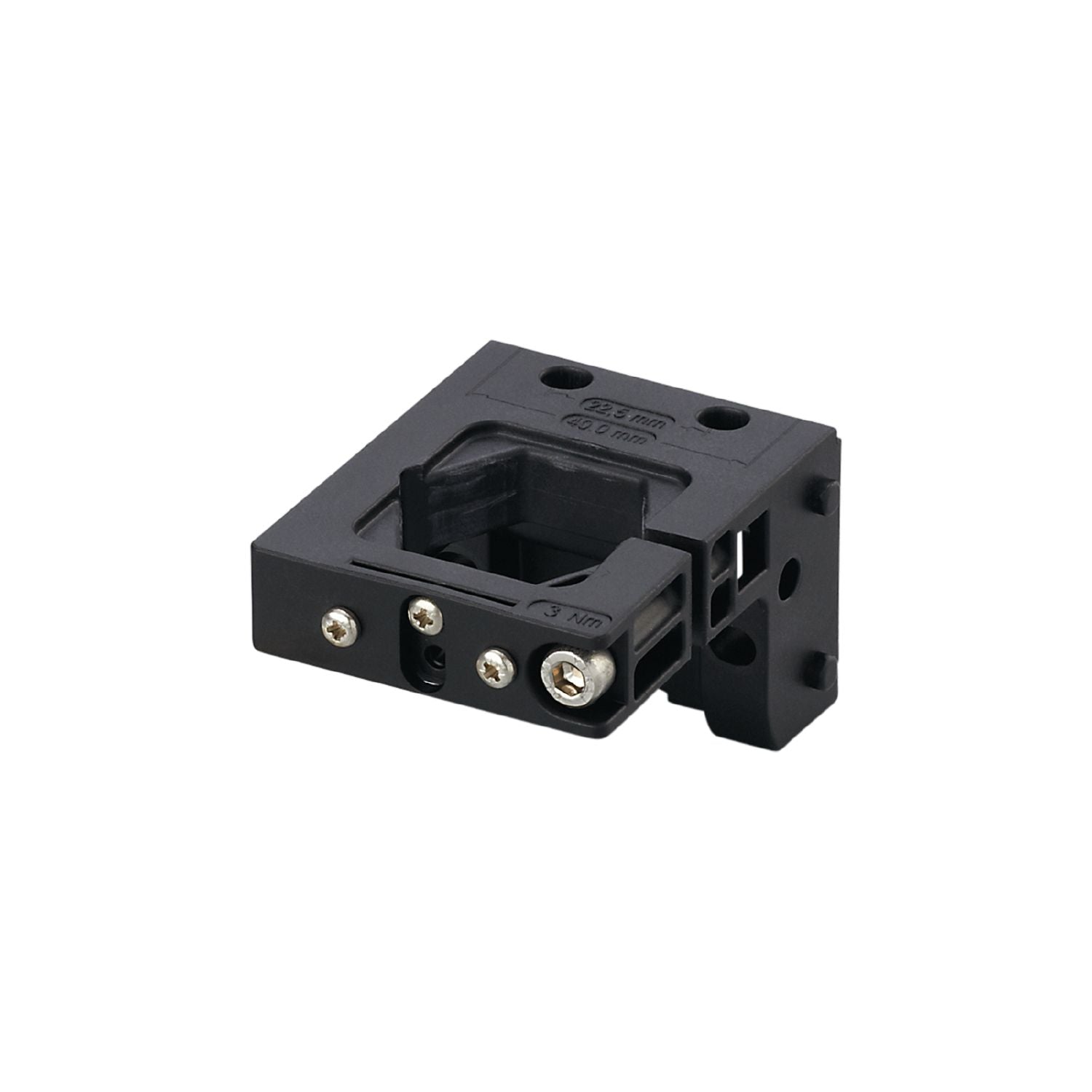

IFM E30421 - Angle bracket UNIVERSAL MOUNTING BRACKET

For free-standing mounting and wall mounting of pressure sensors.
Easy, quick and inexpensive fixing.
Robust design for use in harsh industrial environments.
Secure hold for the sensor

Weight [g]	55.5
Dimensions [mm]	40 x 50 x 64
Materials	PA 6.6-GF25-M15

Accessories

Items supplied	socket head screw: 1 x M5 x 40 square nut: 1 x M5 recess self-tapping screws : 3 x 3 mm

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30421-00 — 06.05.2014 —
