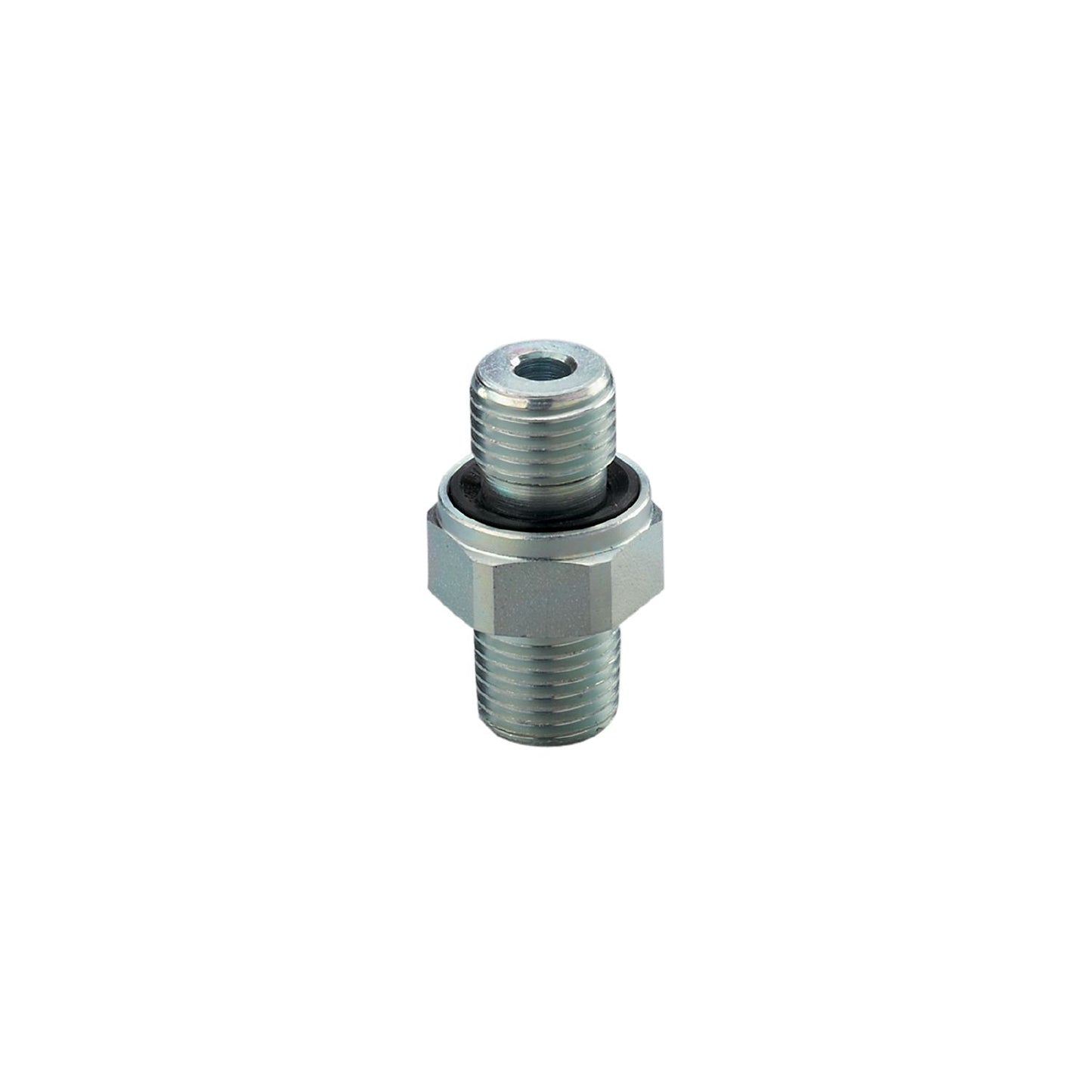

IFM E30427 - Screw-in adapter for process sensors ADAPT G1/4 A - R1/4

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
High pressure rating

Pressure rating [bar]	400

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	43.9
Materials	steel (1.0718 / 12L13); Process connection sealing: FKM (DIN 3869)
Sensor connection	G 1/4
Process connection	threaded connection R 1/4

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30427-01 — 02.09.2016 —
