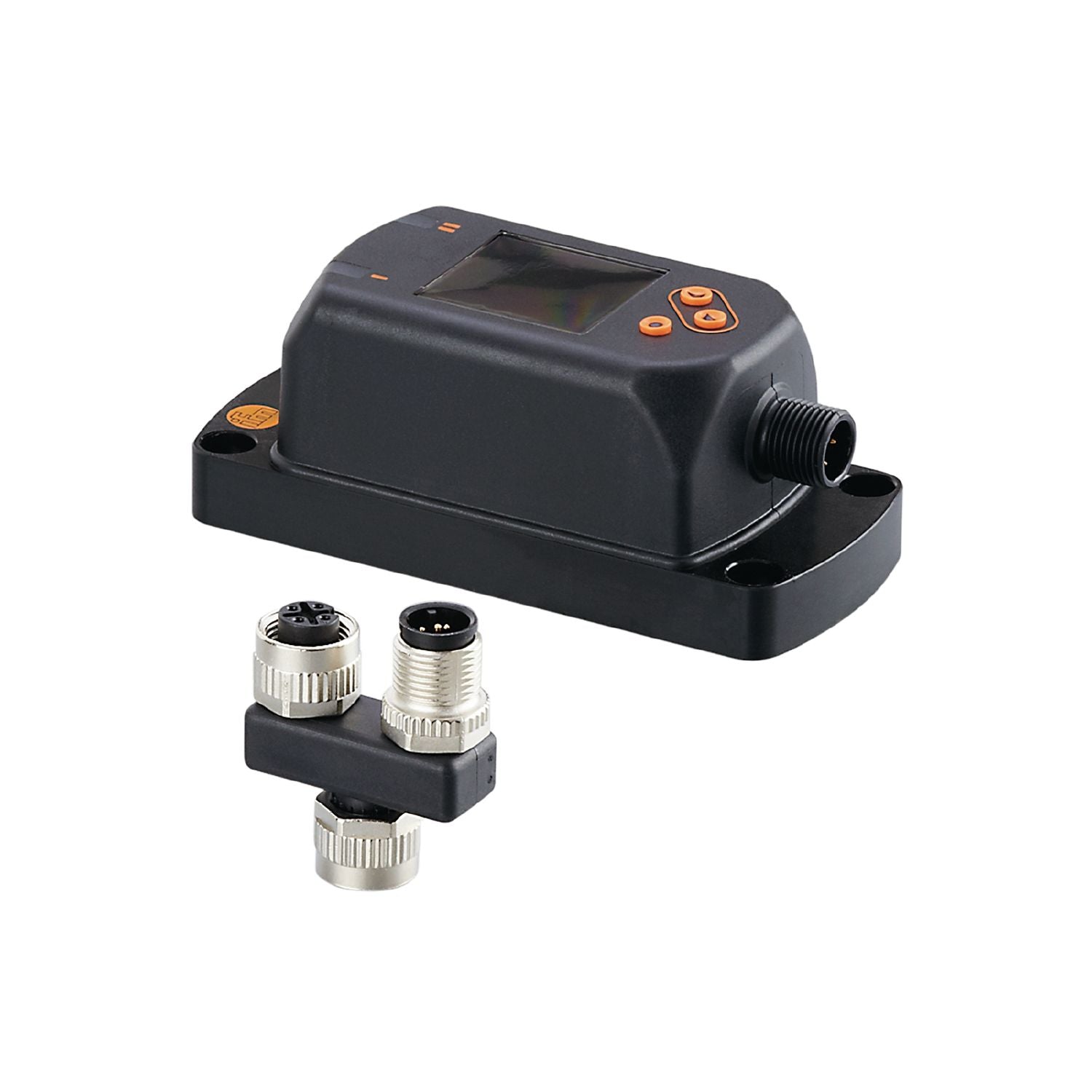

IFM E30430 - IO-Link display IO-LINK INLINE DISPLAY 1,44"

For displaying up to four process values.
Brightness, orientation and background colour adaptable.
Supplied with Y-splitter

Special feature	Gold-plated contacts
Application	display of all process values of a connected sensor

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 47
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes

Software / programming

Parameter setting options	display, indication

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	no
Required master port type	A
Min. process cycle time [ms]	11.2
Supported DeviceIDs	Type of operation DeviceID default 694

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...80
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4
Shock resistance	DIN EN 60068-2-27 5 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 5 g (10...50 Hz)
MTTF [years]	397

Weight [g]	204
Materials	stainless steel (1.4404 / 316L); PC; PBT-GF30; PPS; FKM

Displays / operating elements

Display	colour display 1,44", 128 x 128 pixels 2 x LED, yellow

Accessories

Items supplied	Y-splitters:, E12481

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; Contacts: gold-plated
