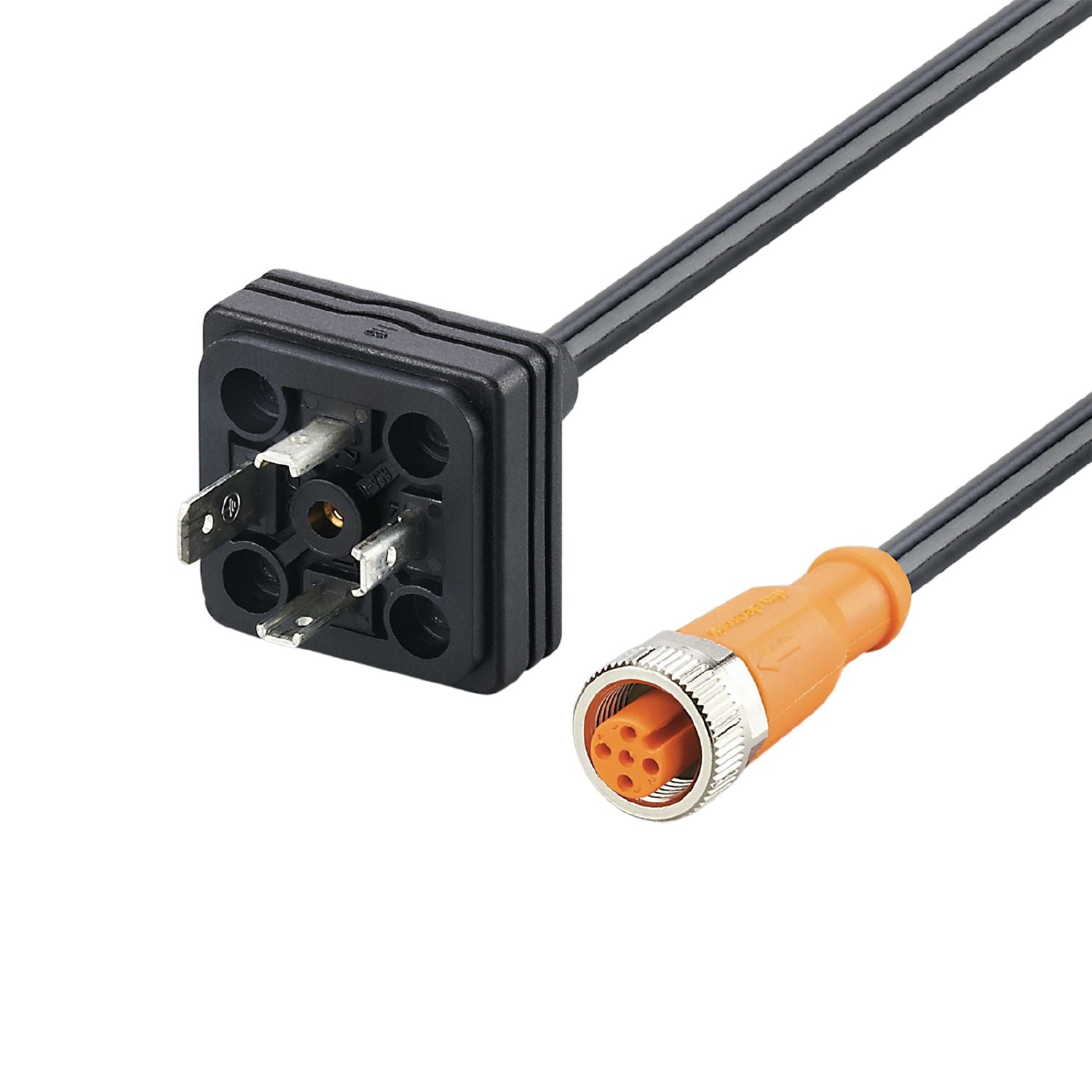

IFM E30436 - Jumper cable with valve plug PLUG M12 - DIN VALVE FORM A

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Robust rectangular connector

Special feature	Free from silicone; Halogen-free
Free from silicone	yes

Operating voltage [V]	< 50 AC / < 60 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65

Weight [g]	66.7
Moulded-body material	TPU
Material nut	brass, nickel-plated
Sealing material	FKM

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x valve type A DIN, straight; Moulded body: TPU, black; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

Connection	Cable: 0.4 m, PUR, Halogen-free, black, Ø 5.5 mm; 5 x 0.50 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Tightening torque: 0.6...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30436-00 — 05.11.2020 —
