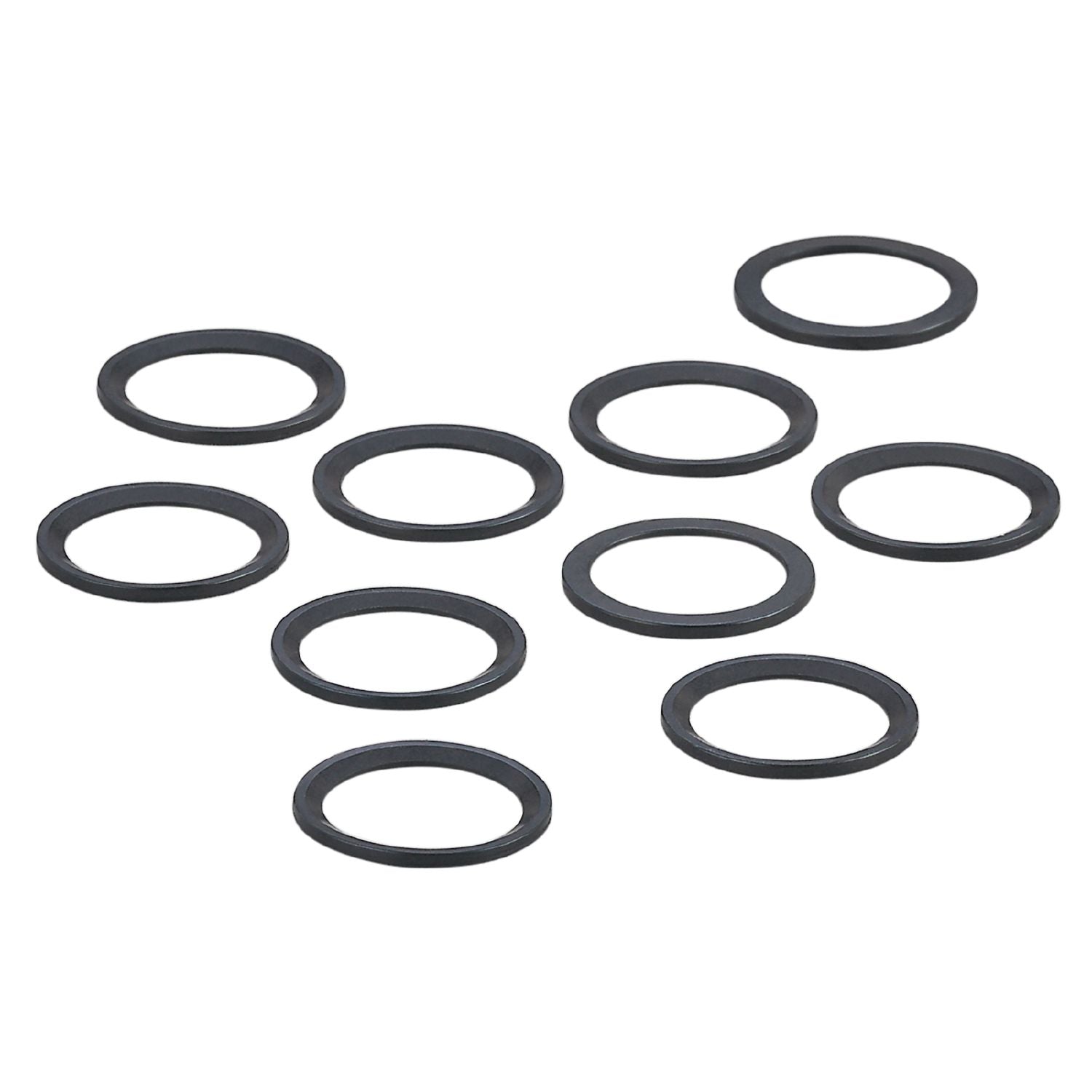

IFM E30451 - Gasket SEAL RING EPDM G1/2

For reliably sealing tanks, containers and pipes.
For use in combination with process sensors

Design	for units with process connection G ½

Operating conditions

Ambient temperature [°C]	-40...130

Tests / approvals

Standard	DIN EN ISO 1179-2

Weight [g]	4.05
Inside diameter [mm]	18.5
External diameter [mm]	23.9
Materials	EPDM

Pack quantity	10 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30451-00 — 07.01.2019 —
