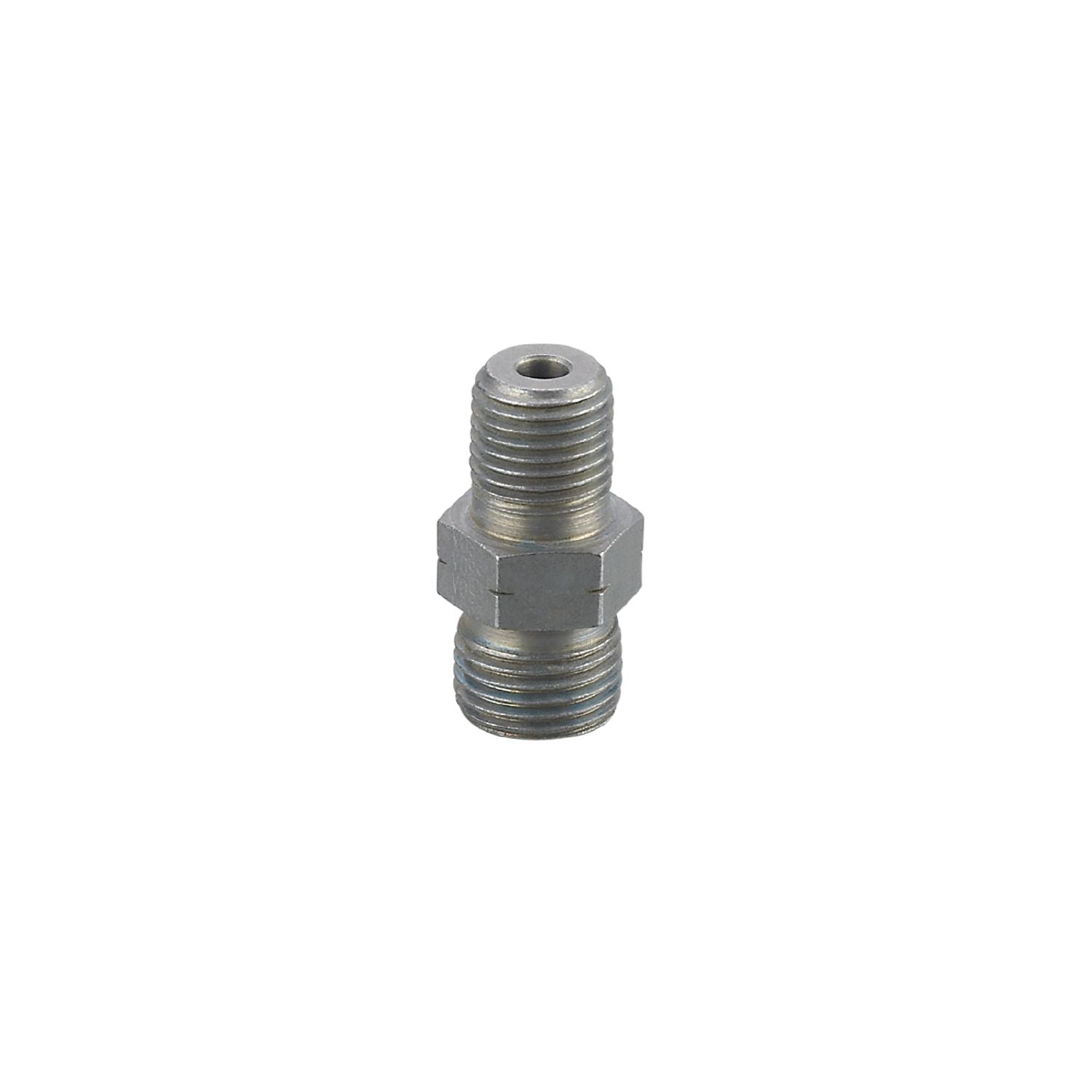

IFM E30462 - Screw-in adapter for process sensors ADAPT PX M16 x 1,5 - 1/4 NPT

Enables mounting of progressive ring fitting adapters on even surfaces.
Enables orientation of the sensor.
High pressure rating.
Corrosion-resistant Zn-Ni coating

Application	oil hydraulics applications
Installation	for mounting on an even surface;(for installation with E30464)
Pressure rating [bar]	630

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	39
Materials	steel (1.0718 / 12L13); Zn-Ni coating
Sensor connection	M16 x 1,5 for progressive ring adapter; taper seal:S8
Process connection	threaded connection 1/4" NPT external thread

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30462-00 — 16.04.2019 —
