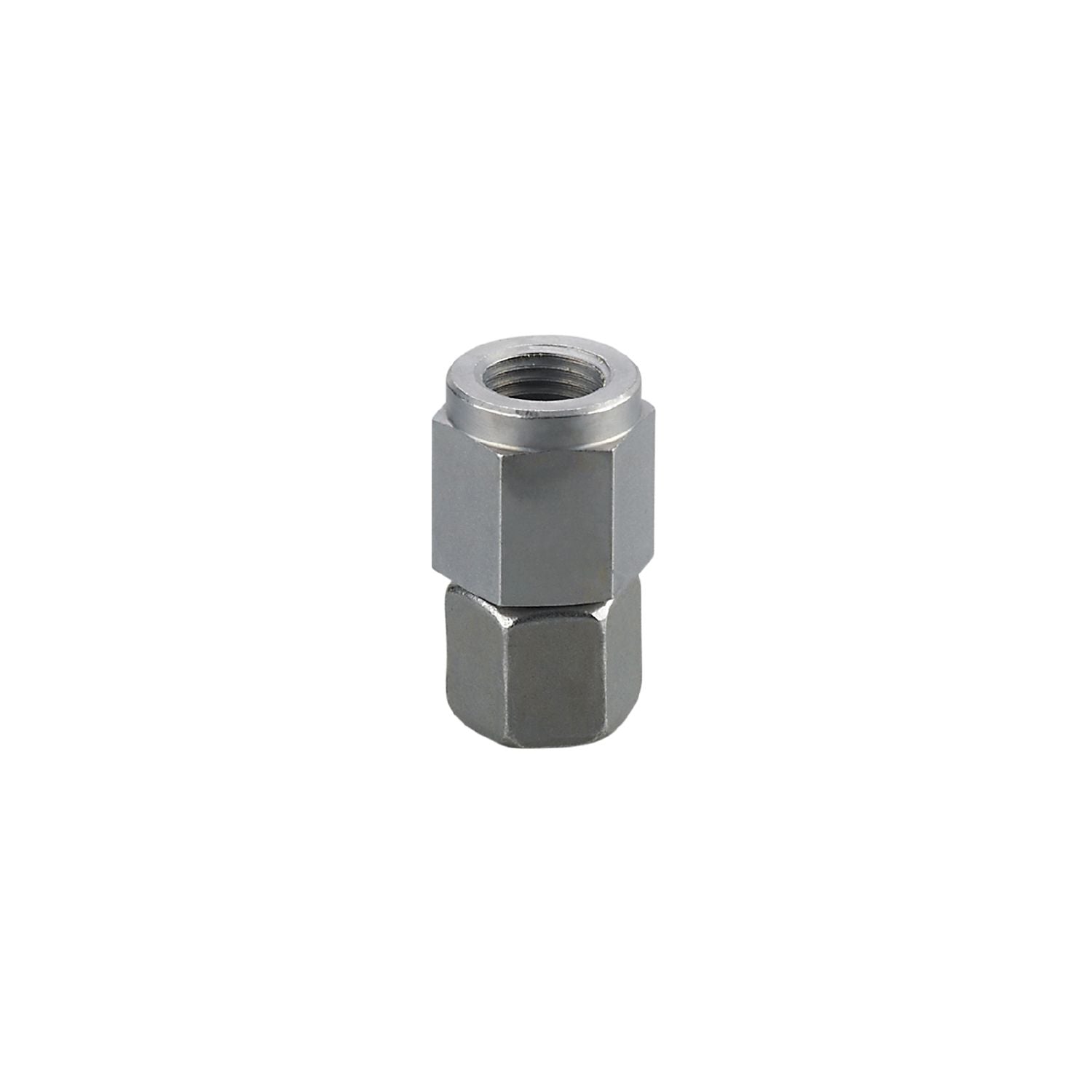

IFM E30463 - Screw-in adapter for process sensors ADAPT PX G1/4 I - Dichtkegel L8

Suitable for mounting on pipes or even surfaces.
High pressure rating.
Corrosion-resistant Zn-Ni coating

Application	oil hydraulics applications; Enables orientation of the sensor
Installation	for pipe mounting;(Conduit adapter M14 x 1,5 required)
Pressure rating [bar]	315

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	60
Materials	steel (1.0718 / 12L13); stainless steel (1.4305 / 303); steel (1.0216); FKM; Zn-Ni coating
Sensor connection	G 1/4 external thread
Process connection	threaded connection M14 x 1,5 internal thread taper seal:L8
Sealing	double-edge sealing ring

Pack quantity	1 pcs.
