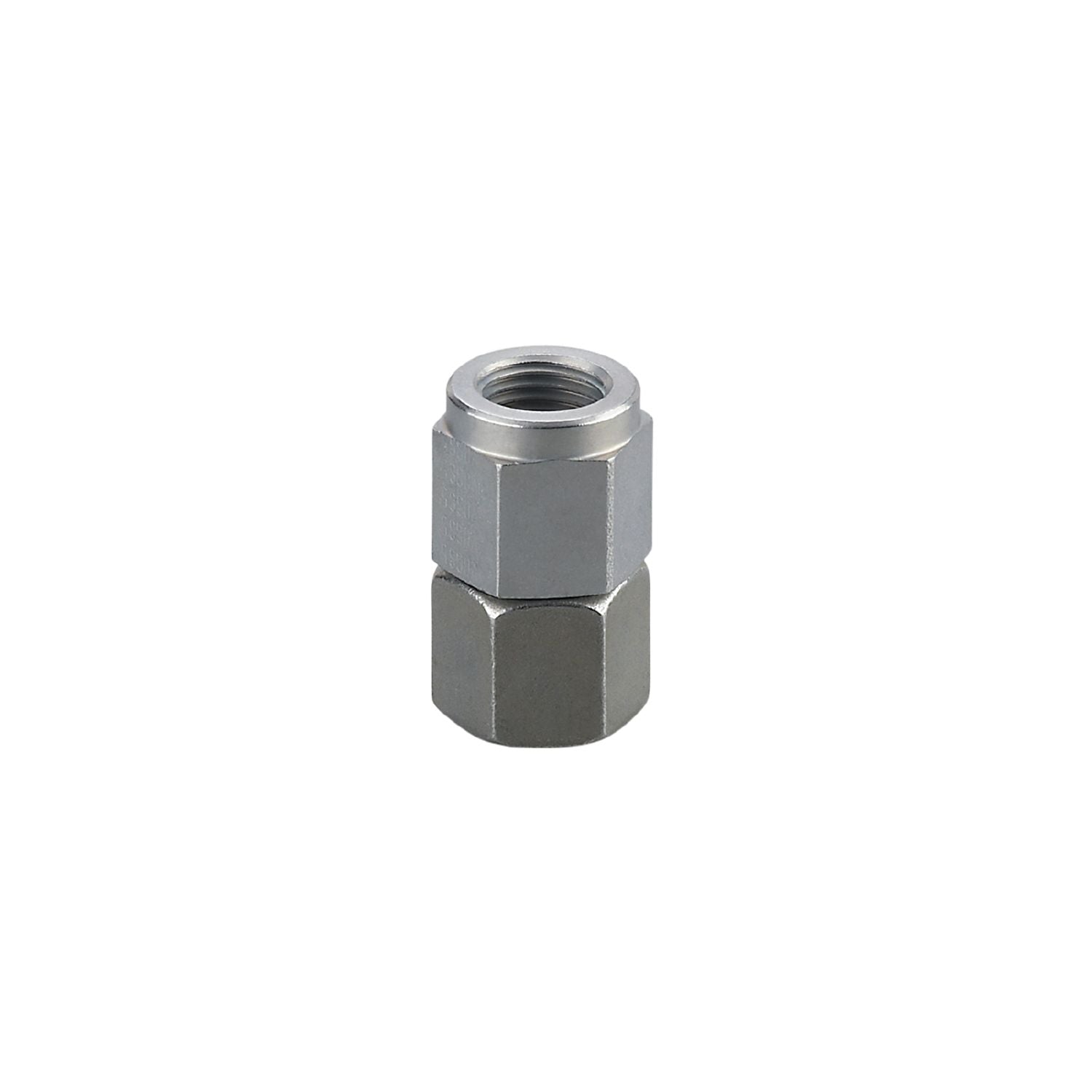

IFM E30464 - Screw-in adapter for process sensors ADAPT PX G1/4 I - Dichtkegel S8

Suitable for mounting on pipes or even surfaces.
High pressure rating.
Corrosion-resistant Zn-Ni coating

Application	oil hydraulics applications; Enables orientation of the sensor
Installation	for pipe mounting; for mounting on an even surface;(for pipe mounting M16 x 1,5 pipe adapter required; for mounting on an even surface further screw-in adapters required)
Pressure rating [bar]	630

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	61
Materials	steel (1.0718 / 12L13); stainless steel (1.4305 / 303); steel (1.0216); FKM; Zn-Ni coating
Sensor connection	G 1/4 external thread
Process connection	threaded connection M16 x 1,5 internal thread taper seal:S8
Sealing	double-edge sealing ring

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30464-00 — 16.04.2019 —
