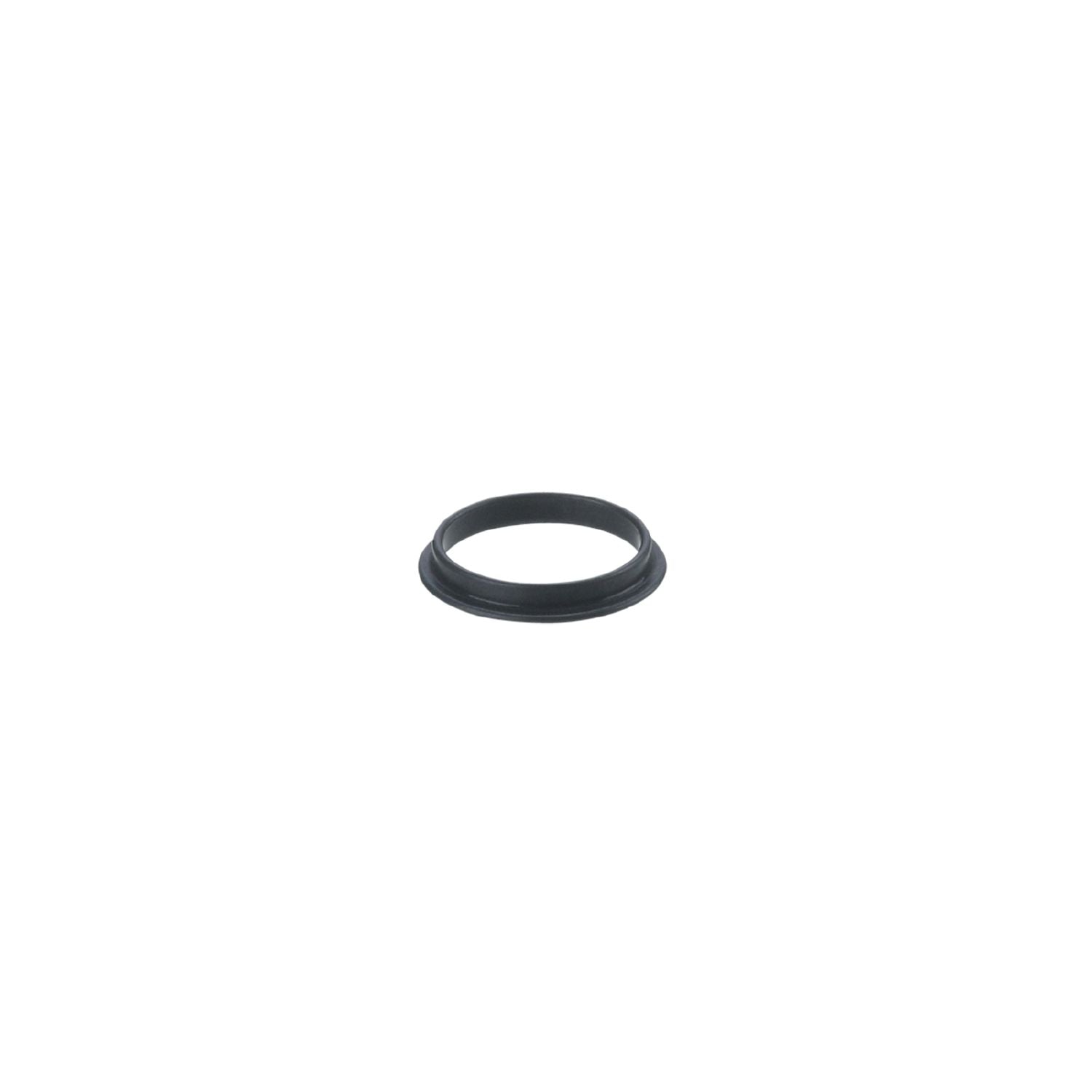

IFM E30522 - Gasket SEAL RING G1/2 FKM

Reliable axial and radial sealing.
For use in combination with process sensors

Design	for units with process connection G ½

Operating conditions

Ambient temperature [°C]	-25...200

Tests / approvals

Standard	DIN EN ISO 1179-2

Weight [g]	7.65
Inside diameter [mm]	18
External diameter [mm]	23
Materials	FKM

Pack quantity	1 pcs.
