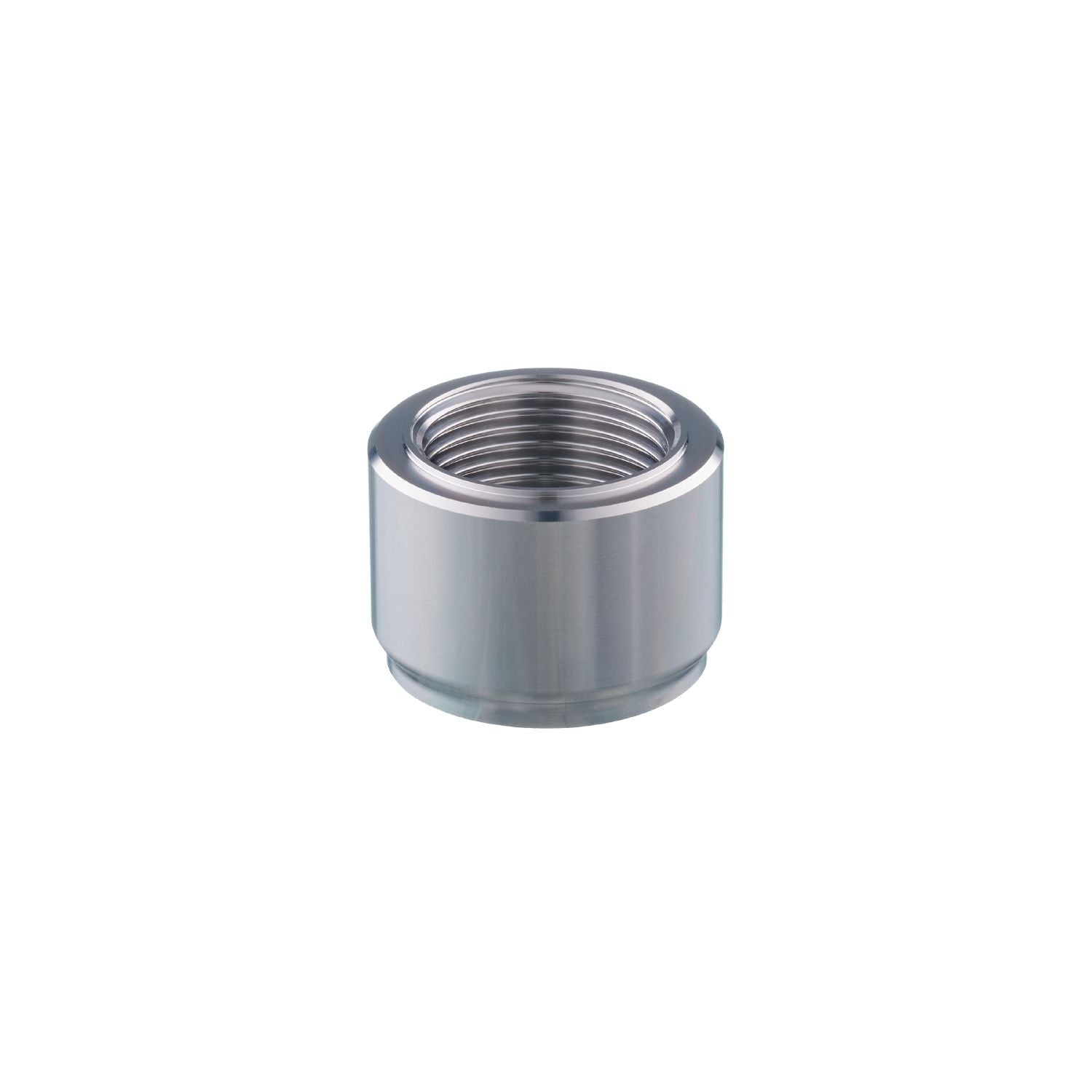

IFM E30541 - Welding adapter for process sensors WELDING ADAPT G1 PIPE 38X1,5 H3,5

Welding adapter for process sensors.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating.
For use in industrial environments

Design	for pipes
Pressure rating [bar]	40
Note on pressure rating	for the connection sensor - adapter professional welding according to operating instructions

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	214.6
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1 sealing cone
Process connection	welding adapter Ø 45 mm
Surface characteristics Ra/Rz of the wetted parts	Ra<0.8 / Rz 4

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30541-00 — 15.01.2024 —
