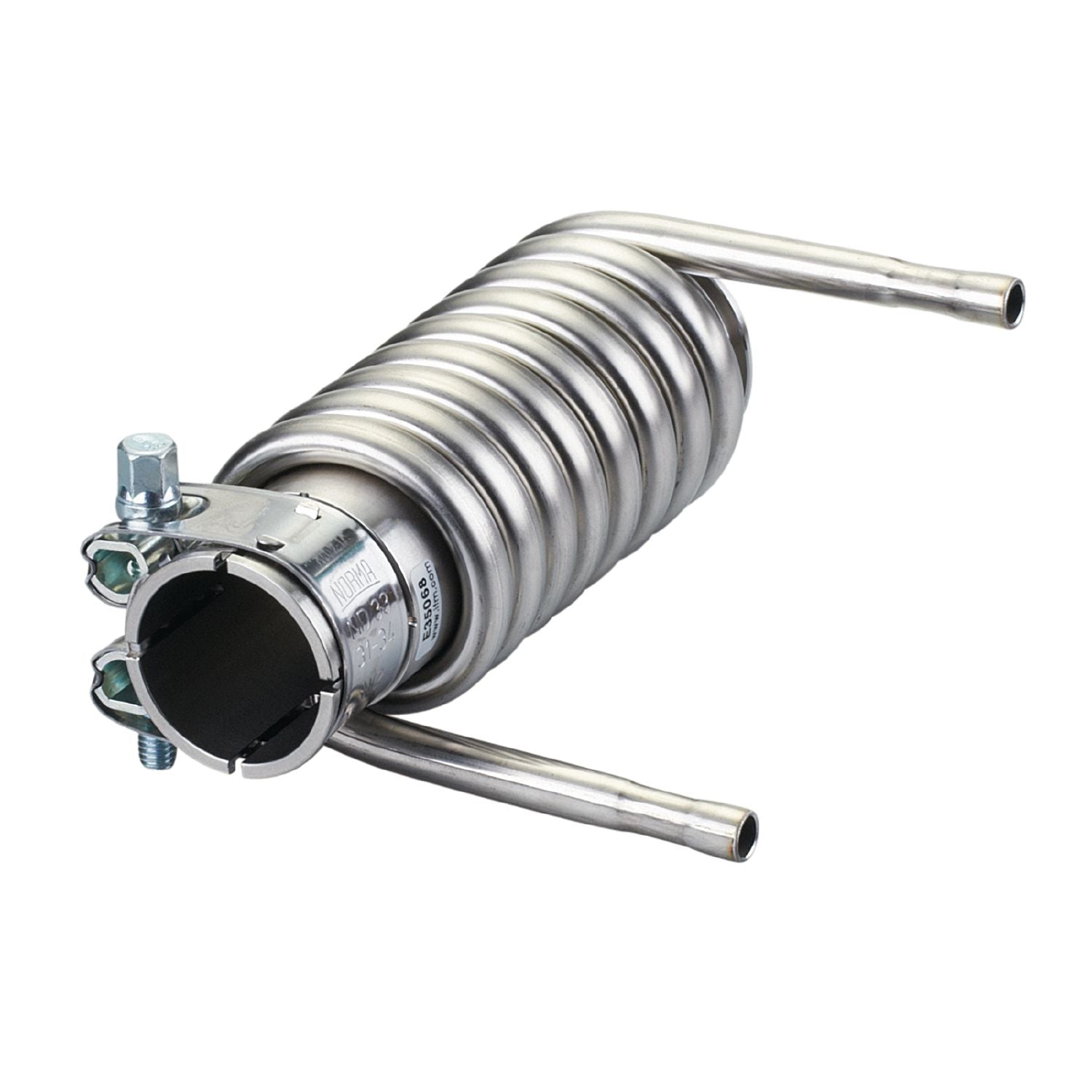

IFM E35068 - Cooling jacket for infrared temperature sensors COOLING JACKET

For operation of infrared temperature sensors at high temperatures.
For an efficient sensor cooling.
Operation with water or compressed air as coolant.
High pressure rating

Design	for infrared temperature sensors TWxxxx, M30
Installation	sensor cooling (air or water);(TW)
Pressure rating [bar]	6

Weight [g]	493.5
Materials	stainless steel (1.4301 / 304)

Pack quantity	1 pcs.

Diagrams and graphs

	A Installation B cooling performance inside temperature as a function of the outside temperature Tw = cooling water temperature 1 L/min 1: inside temperature [°C] 2: outside temperature [°C]
