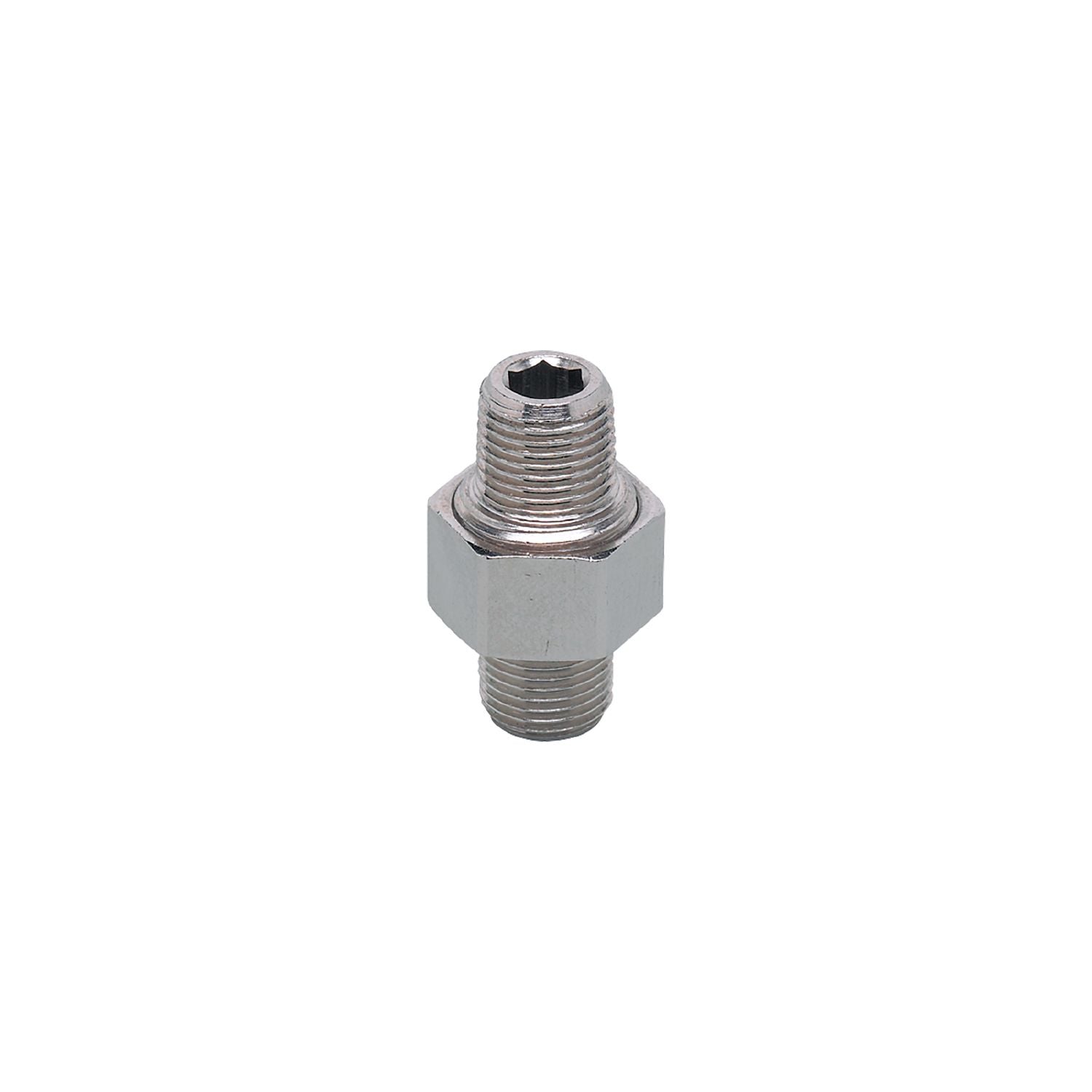

IFM E37350 - Screw-in adapter for process sensors ROTATABLE DOUBLE NIPPLE

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
Stable fixing by screwing in.
Use in liquids and gases.
High pressure rating

Installation	rotatable
Pressure rating [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	20.3
Type of mounting	rotatable
Materials	brass nickel-plated
Sensor connection	R 1/8
Process connection	threaded connection R 1/8

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37350-00 — 10.10.2008 —
