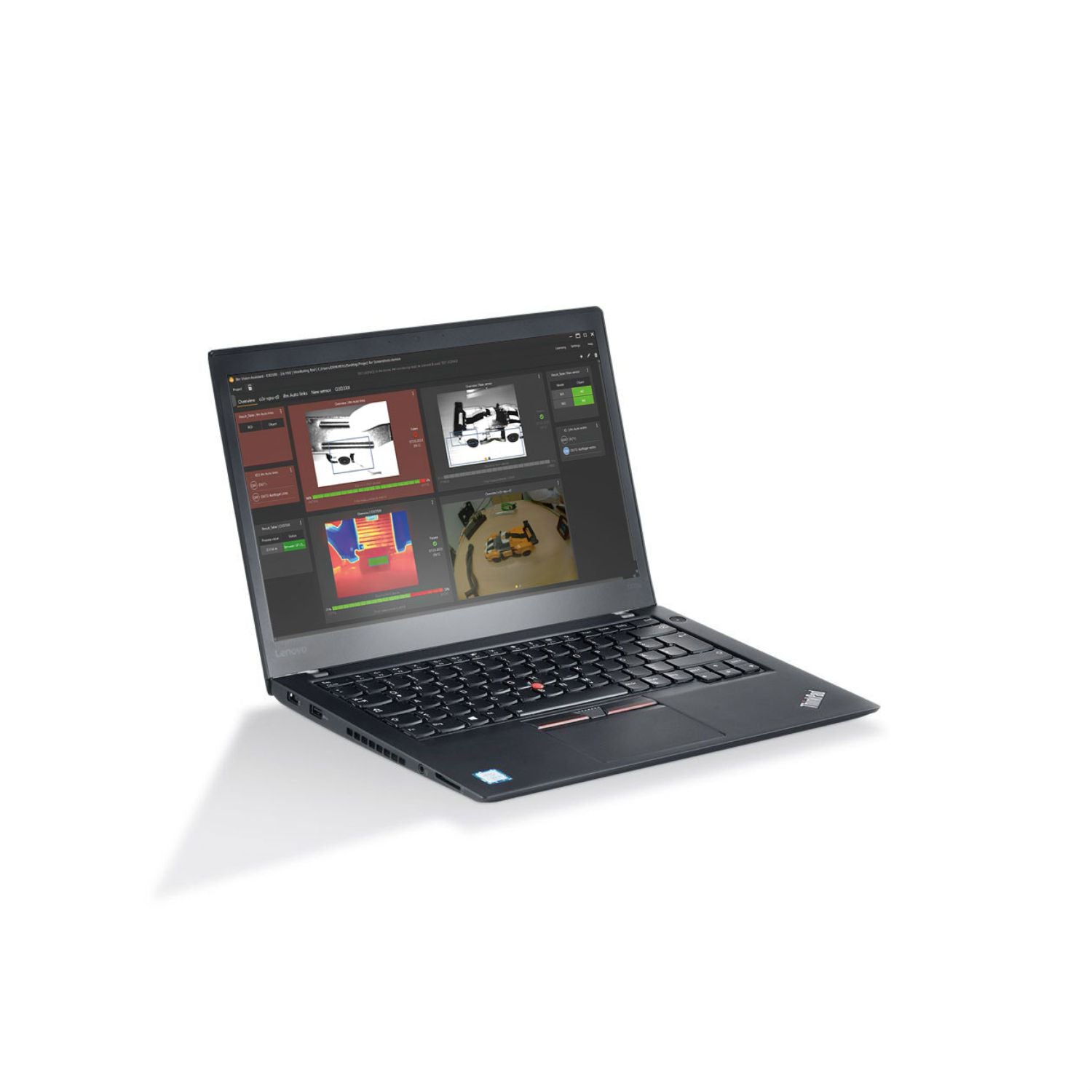

Clear visualisation of images and data from the vision sensors on a dashboard. Deviations from the target state can be quickly detected and their cause identified. Easy integration of new and existing sensors through network search. Easy process analysis and trend detection thanks to automated image and data history
Application
for stand-alone operation on a single-user PC
Application
diagnostics of ifm vision devices
Device management
Simple detection of devices via network search or IP addressing
User interface
dynamically adjustable dashboards within the Vision Assistant
tabular representation of many vision devices
simultaneous display of images and process values
Software / programming
Language
German; English; French; Italian; Spanish; Portuguese; Chinese; Japanese; Korean
Data carrier
download
Type of licence
basic licence includes 6 connections
Licence class
full version
System requirements
Min. graphic resolution
1024 x 768
Required device interface
LAN Adapter - RJ45
Network card
Ethernet 1 Gbit
Network protocol
Ethernet TCP/IP, UDP/IP
Operating system
Microsoft Windows 10
Additionally required software
Vision Assistant 2.6.x
Weight [g]
0.001
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E3D310-00 — 14.04.2023 —
