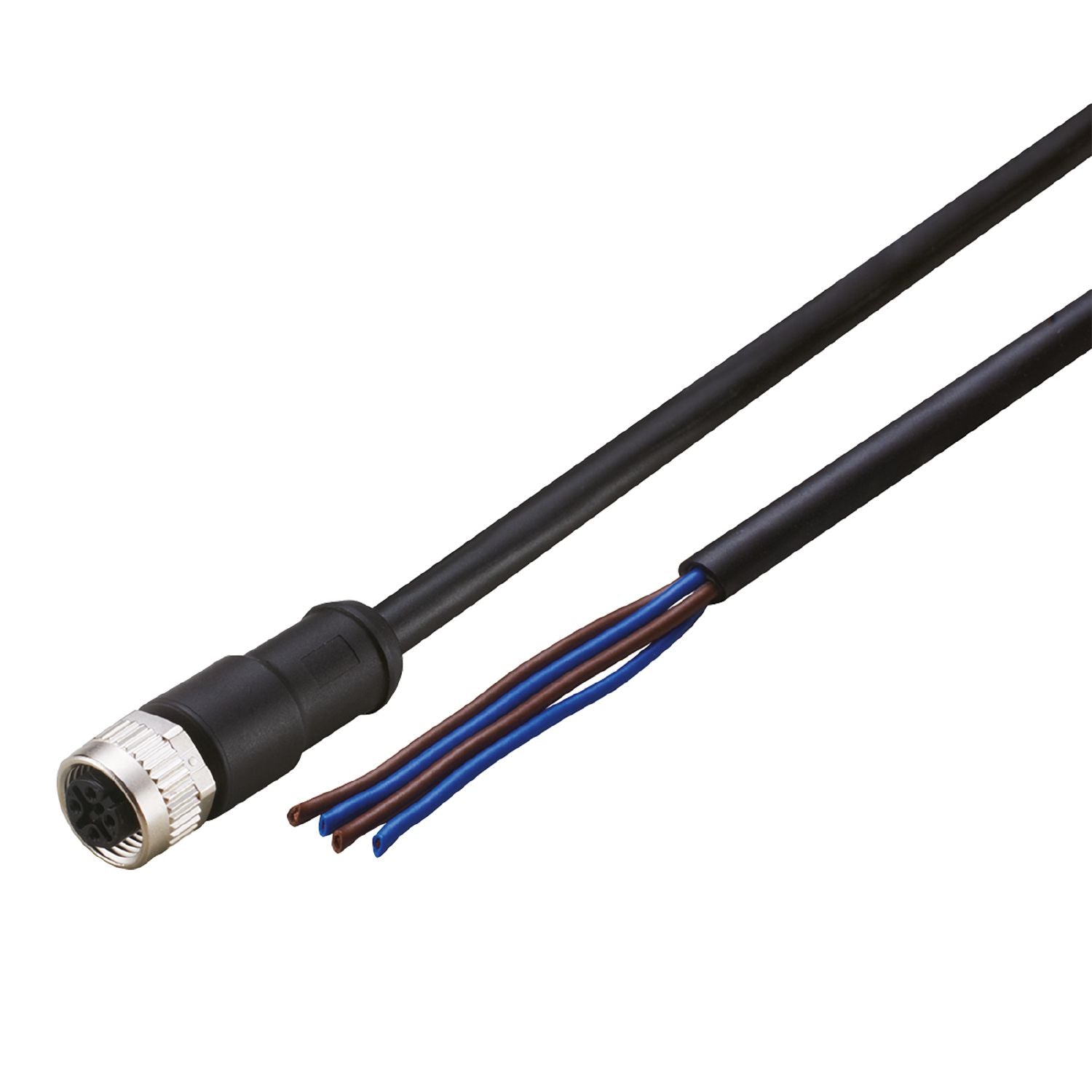

IFM E3M131 - Connecting cable with socket POWER SUPPLY CABLE O3M ILLUMINATION 2M

Reliable connection of mobile cameras with video output.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments

Special feature	Gold-plated contacts; Drag chain suitability

Operating voltage [V]	< 25 AC / < 60 DC

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 68

Weight [g]	134.6
Dimensions [mm]	15.5 x 15.5 x 43.9
Materials	PUR
Moulded-body material	PUR
Material nut	diecast zinc
Drag chain suitability	yes
Drag chain suitability	bending radius for fixed installation ≥ 30 mm

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, black, Ø 6 mm; 4 x 0.75 mm²

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated
