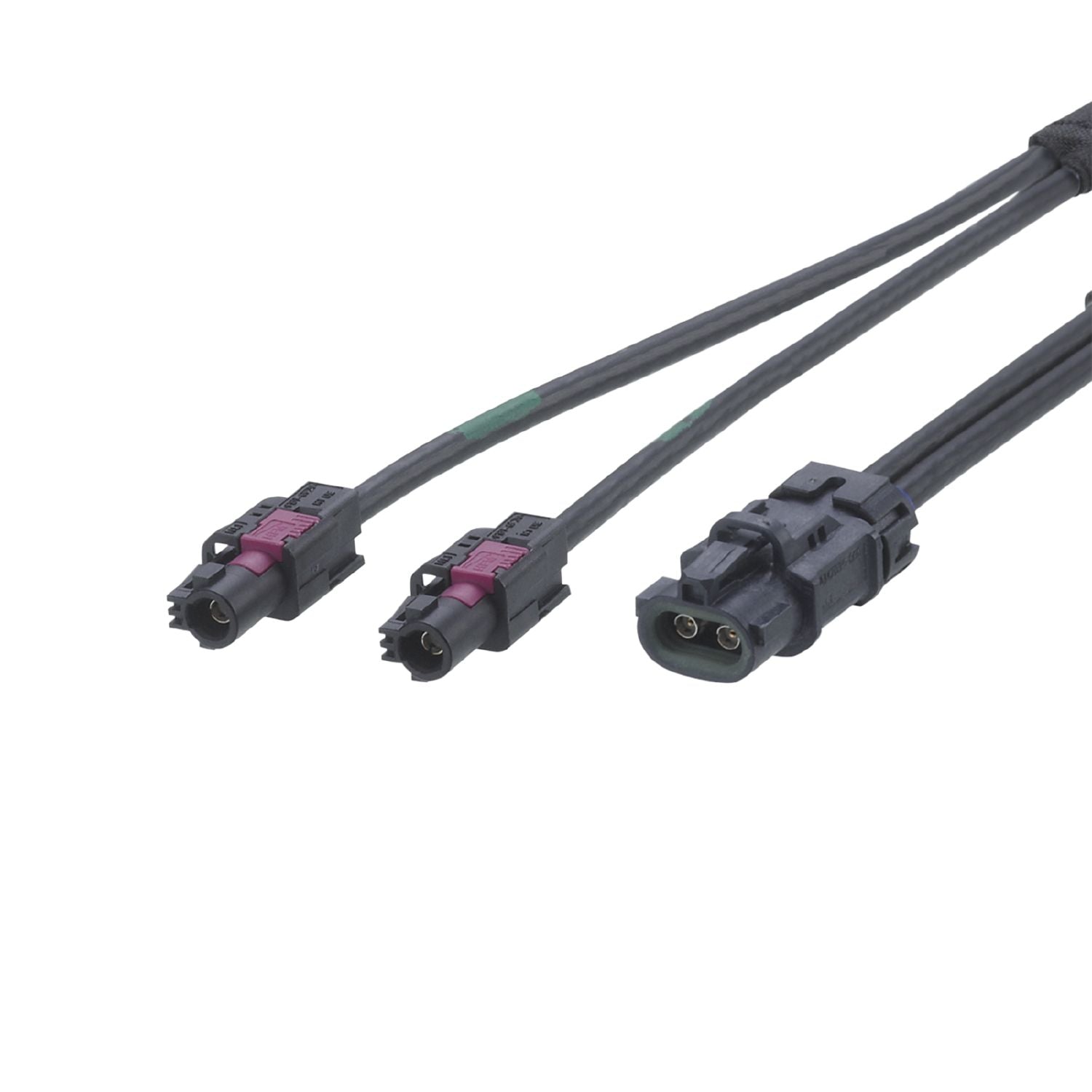

IFM E3R101 - Connection cable HFM Y CABLE 2 X S/S/M S/D/M A 1,0M

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Damping [dB/m]	1.6
Internal resistance (Ri) [Ω]	50;( ± 3 %)

Operating conditions

Ambient temperature [°C]	-10...60
Ambient temperature (moving) [°C]	-10...60
Protection	IP 54

Weight [g]	88.307
Min. bending radius [mm]	16.5;(single; 15 x 3,3 mm min. 10 x cable diameter)
Materials	housing: : PBT-GF20

Pack quantity	1 pcs.

Electrical connection - 2D/3D camera

	Connector: 1 x HFM-Dual, straight

Electrical connection

	Cable: 1 m, black, Ø 3.3 mm

Electrical connection - Video Processing Unit

	Connector: 2 x HFM-Single, straight
