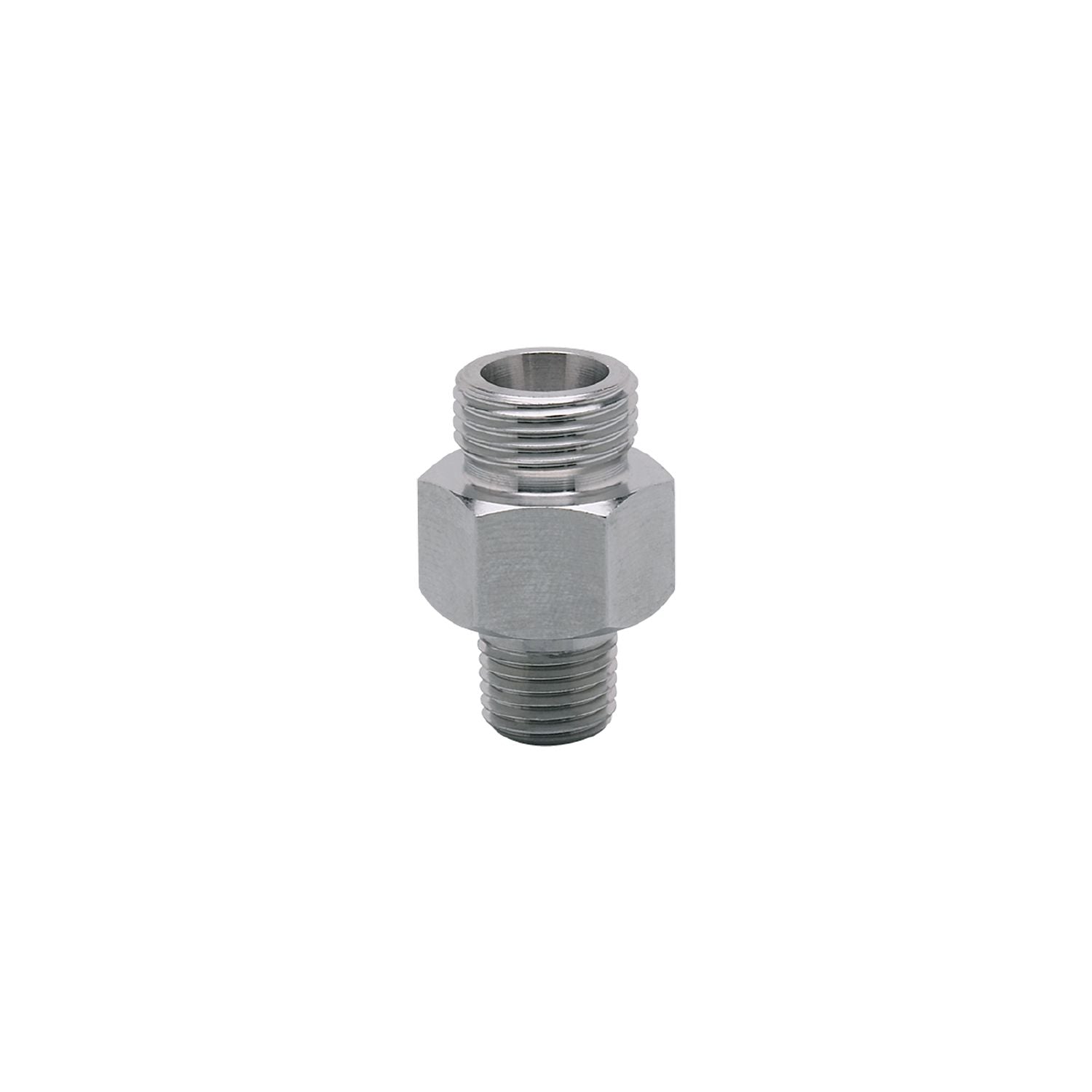

IFM E40099 - Screw-in adapter for process sensors Adapter SI1/G1/4/VA

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Suitable for liquids and gases.
Very high, reliable overload pressure rating.
Robust stainless steel design for use in harsh industrial environments

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	100

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	60.6
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M18 x 1,5 internal thread
Process connection	threaded connection G 1/4
Insertion depth [mm]	13.5;(measuring probe SID, SFD, TN)

Accessories

Items supplied	sealings: 1, AFM

Remarks	In applications >30 bar use a suitable high-pressure adapter. In drinking water applications, replace the supplied gaskets by gaskets suitable for the application.
Pack quantity	1 pcs.
