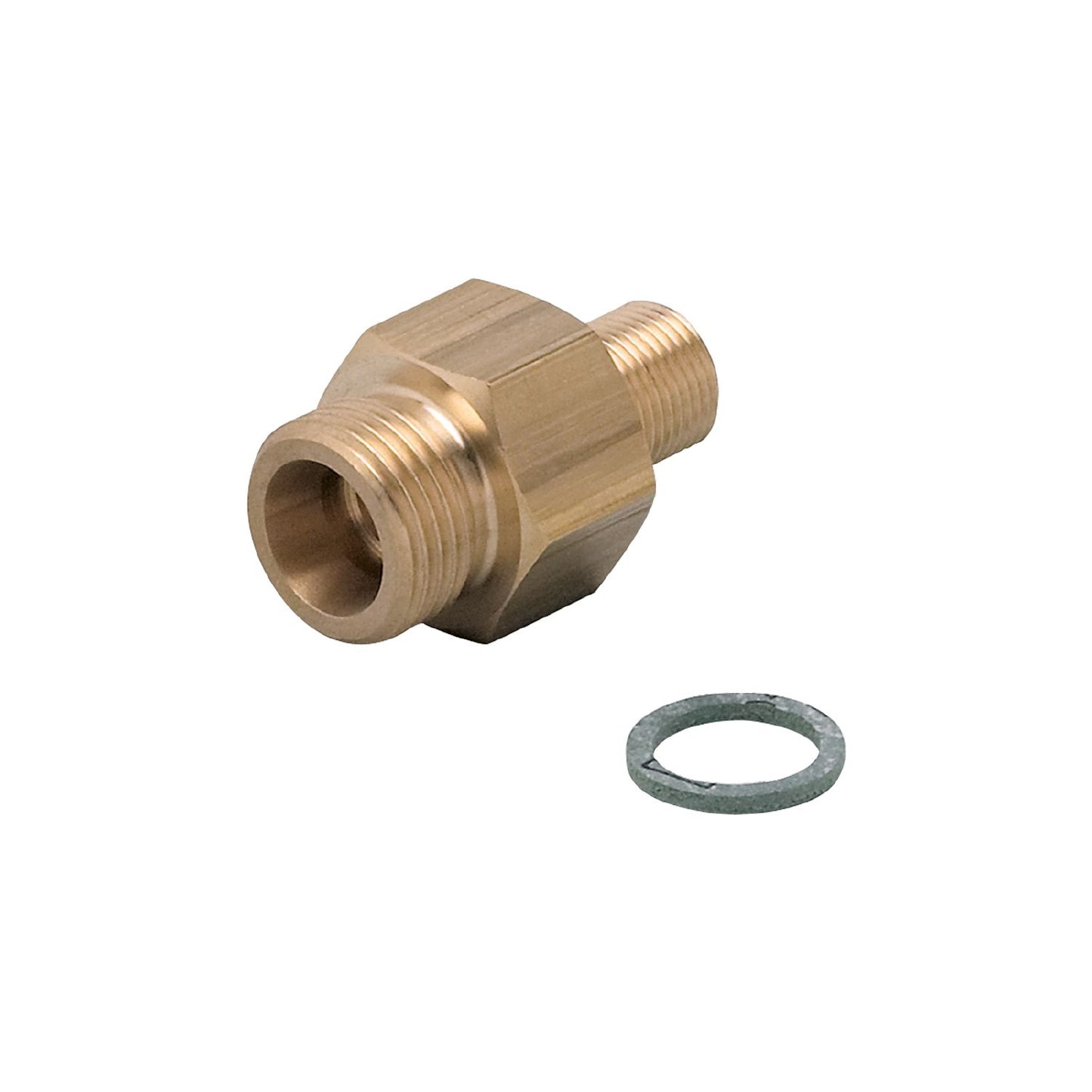

IFM E40100 - Screw-in adapter for process sensors Adapter SI0/M12x1/MS

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Suitable for liquids and gases.
High permissible overload pressure rating.
Robust design for use in harsh industrial environments

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	30

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	59.1
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	brass (2.0401)
Sensor connection	M18 x 1,5 internal thread
Process connection	threaded connection M12 x 1
Insertion depth [mm]	13.5;(measuring probe SID, SFD, TN)

Accessories

Items supplied	sealings: 1, AFM

Remarks	In applications >30 bar use a suitable high-pressure adapter.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40100-00 — 10.11.2014 —
