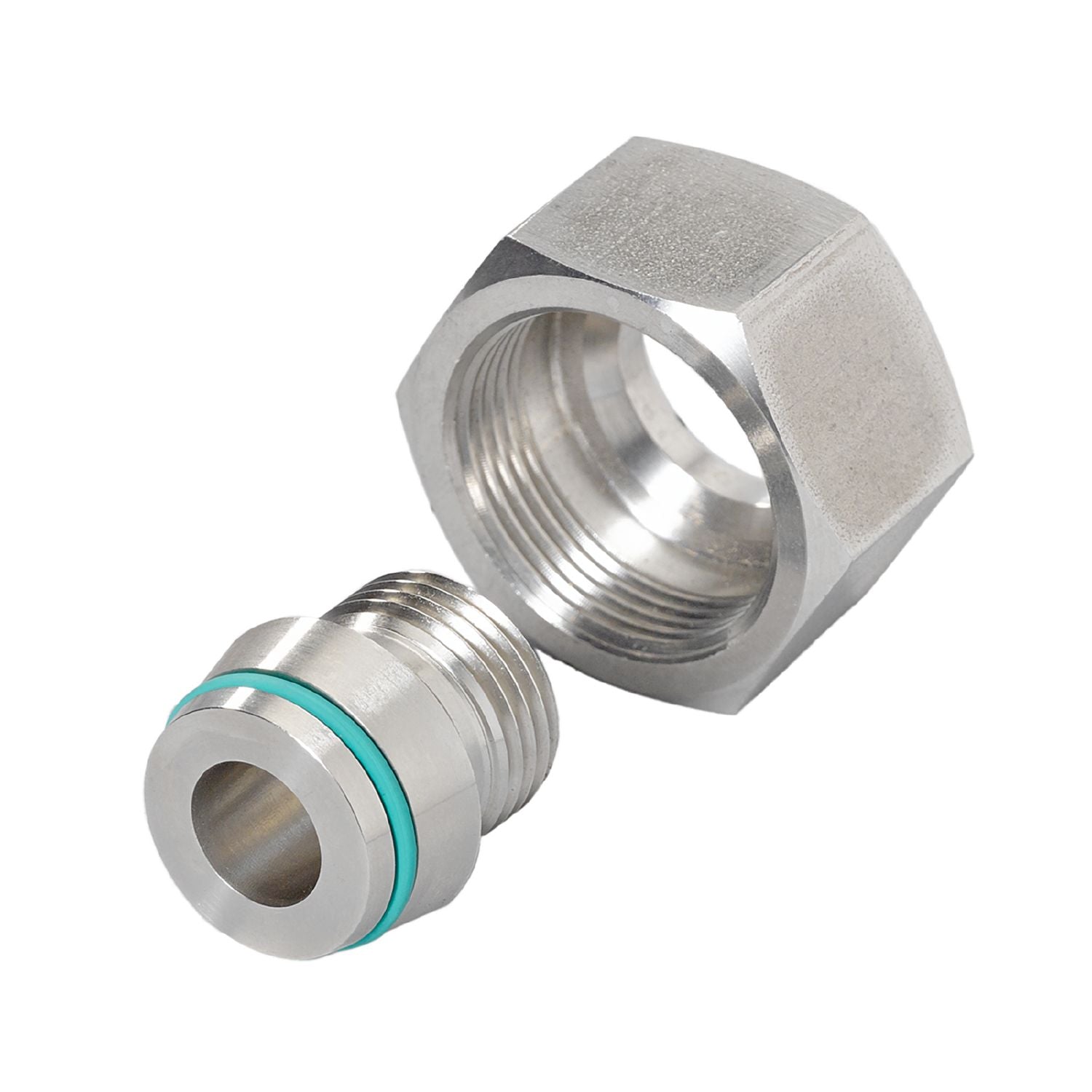

IFM E40104 - Screw-in adapter for process sensors ADAPTER SIL18

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Suitable for liquids and gases.
Very high, reliable overload pressure rating.
Robust stainless steel design for use in harsh industrial environments

Application	for industrial applications
Installation	for mounting in T-pieces
Media	liquids and gases
Pressure rating [bar]	300

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	94.8
Type of mounting	for mounting in T-pieces
Materials	Lock nut: stainless steel (1.4571/316Ti ); Adapter: stainless steel (1.4404 / 316L); O-ring: FKM 70 Shore A
Sensor connection	M18 x 1,5
Process connection	threaded connection M26 x 1,5
Insertion depth [mm]	28.5;(measuring probe SID, SFD, TN)

Pack quantity	1 pcs.
