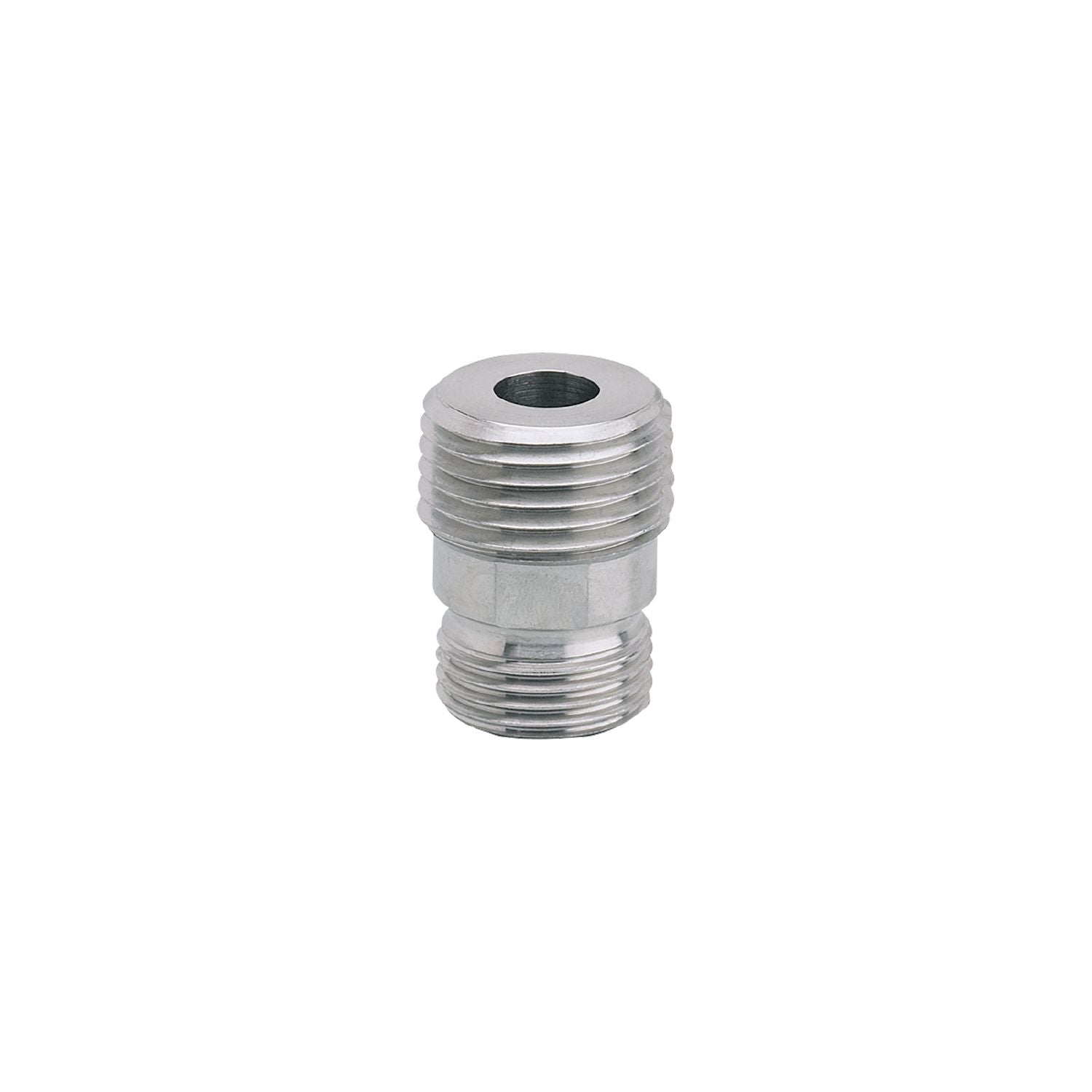

IFM E40107 - Screw-in adapter for process sensors Adapter SI/1 - 1/2NPT

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Suitable for liquids and gases.
Very high, reliable overload pressure rating.
Robust stainless steel design for use in harsh industrial environments

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	300
MAWP (for applications according to CRN) [bar]	303

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	39
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M18 x 1,5 internal thread
Process connection	threaded connection 1/2" NPT
Insertion depth [mm]	23;(measuring probe SID, SFD, TN)

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40107-01 — 10.11.2014 —
