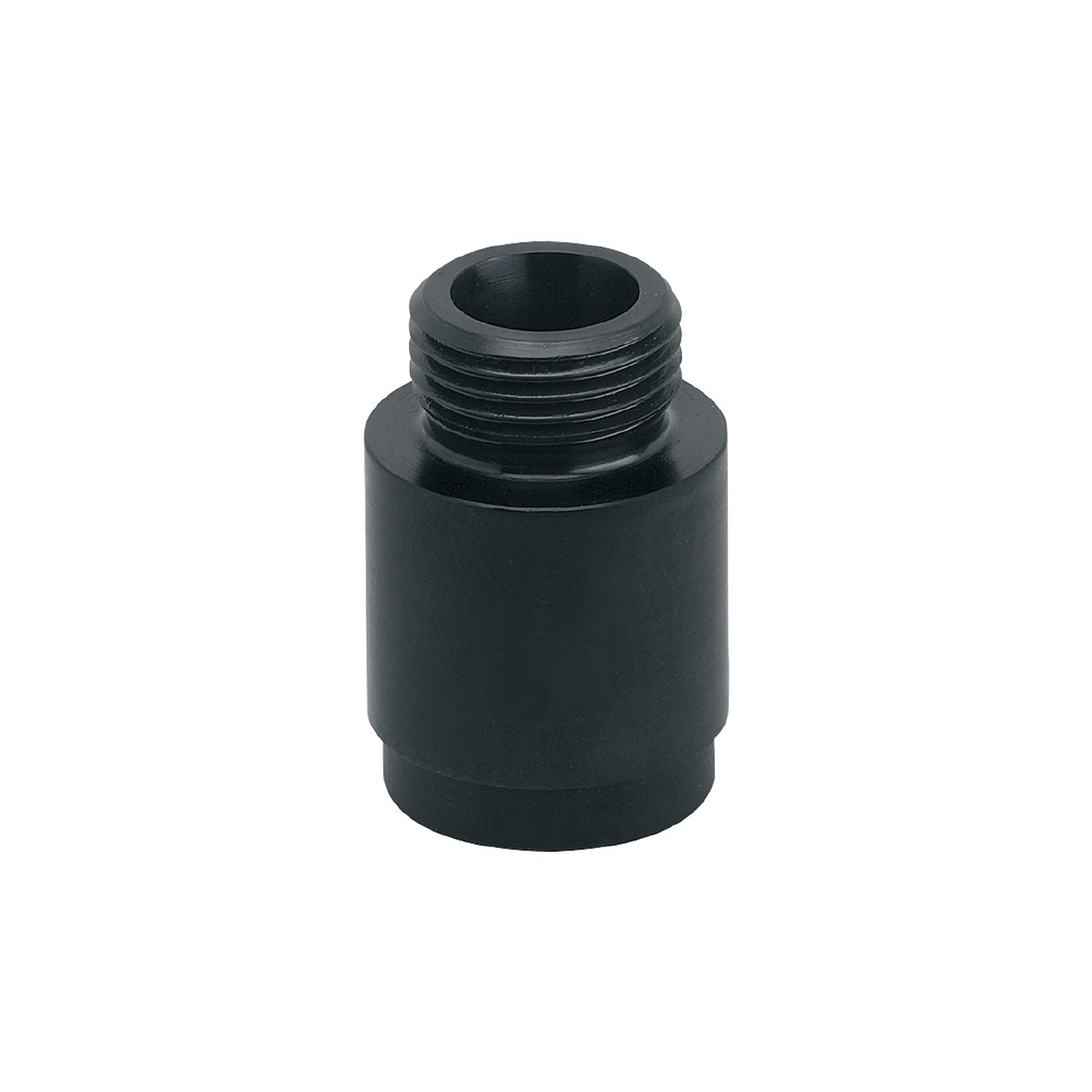

IFM E40113 - Welding adapter for process sensors WELDING ADAPTER SI

Welding adapter for process sensors.
For use in industrial environments.
Robust design for use in harsh industrial environments.
High pressure rating

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	300

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	77.3
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	steel (1.0570 / S355J2) bronzed
Sensor connection	M18 x 1,5 internal thread
Process connection	welding adapter Ø 22 mm
Insertion depth [mm]	15;(measuring probe SID, SFD, TN)

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40113-00 — 10.11.2014 —
