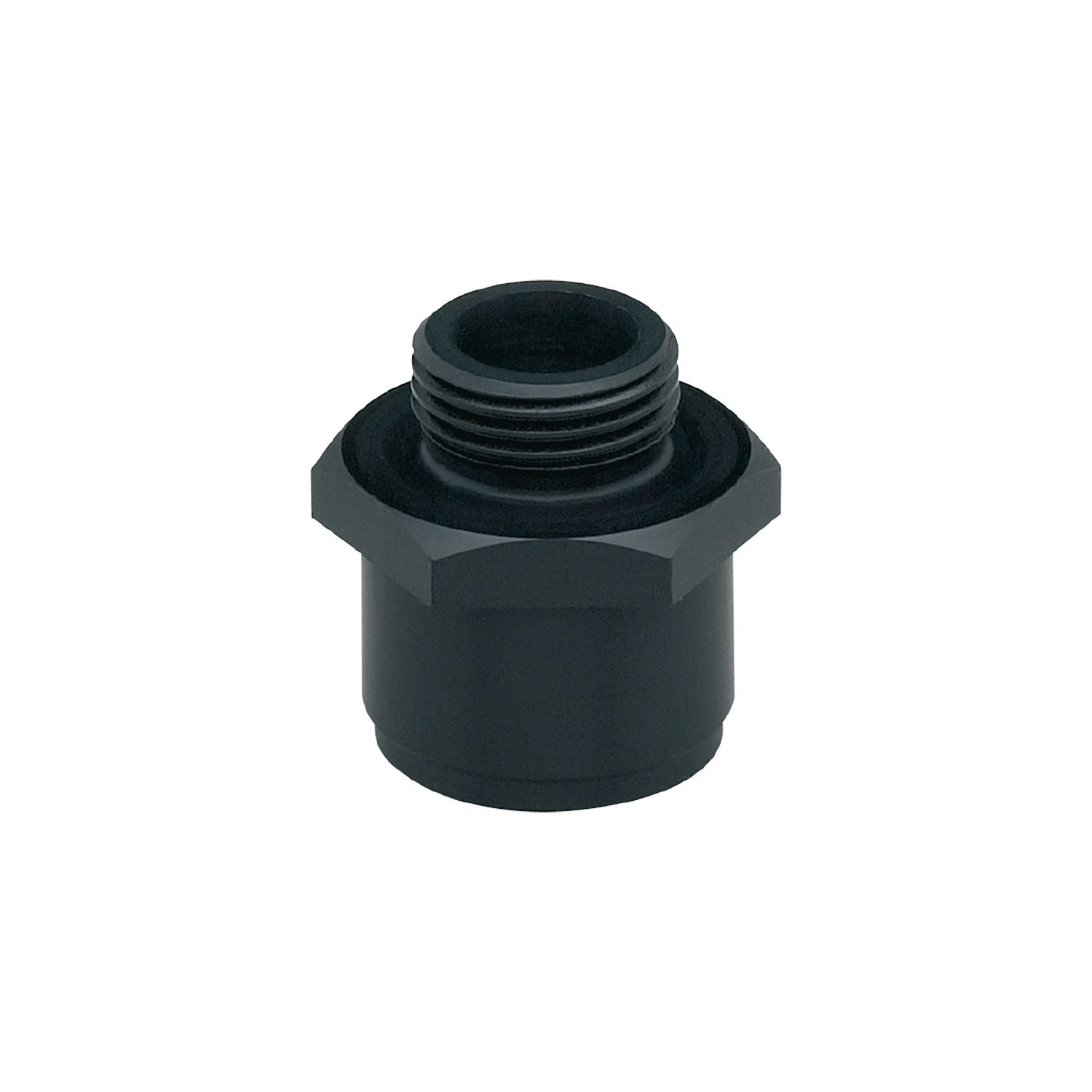

IFM E40138 - Welding adapter for process sensors ADAPT /S./2/X/WELD PE

Welding adapter for process sensors.
Easy, quick and secure mounting.
Suitable for liquids and gases.
For use in industrial environments

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	10

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	11.2
Materials	PE
Sensor connection	M18 x 1,5 internal thread
Process connection	welding adapter Ø 23 mm
Insertion depth [mm]	21;(measuring probe SID, SFD, TN)

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40138-00 — 11.11.2014 —
