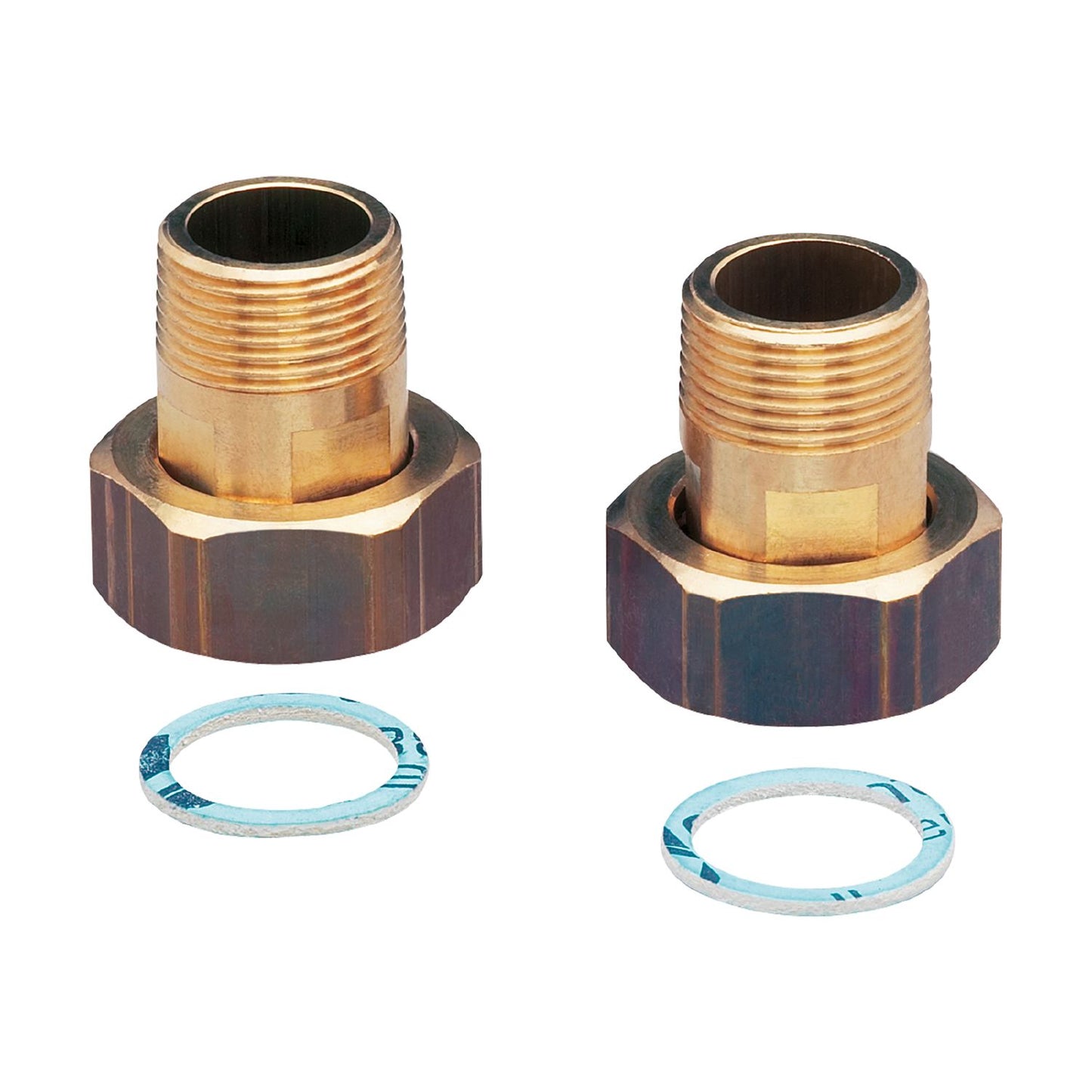

IFM E40153 - Mounting adapter for flow sensors ADAPTER G1-R3/4/MS

For the installation of flow sensors in pipes.
Easy, quick and secure mounting.
Suitable for ultrasonic sensors and magnetic-inductive sensors.
Requested sealings supplied with the unit.
Robust design for use in harsh industrial environments

Design	for flow sensors Typ SM8, SU8
Pressure rating [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	346.5
Materials	brass
Sensor connection	G 1
Process connection	threaded connection R 3/4

Accessories

Items supplied	sealings: 2, Centellen

Pack quantity	2 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40153-01 — 06.03.2003 —
