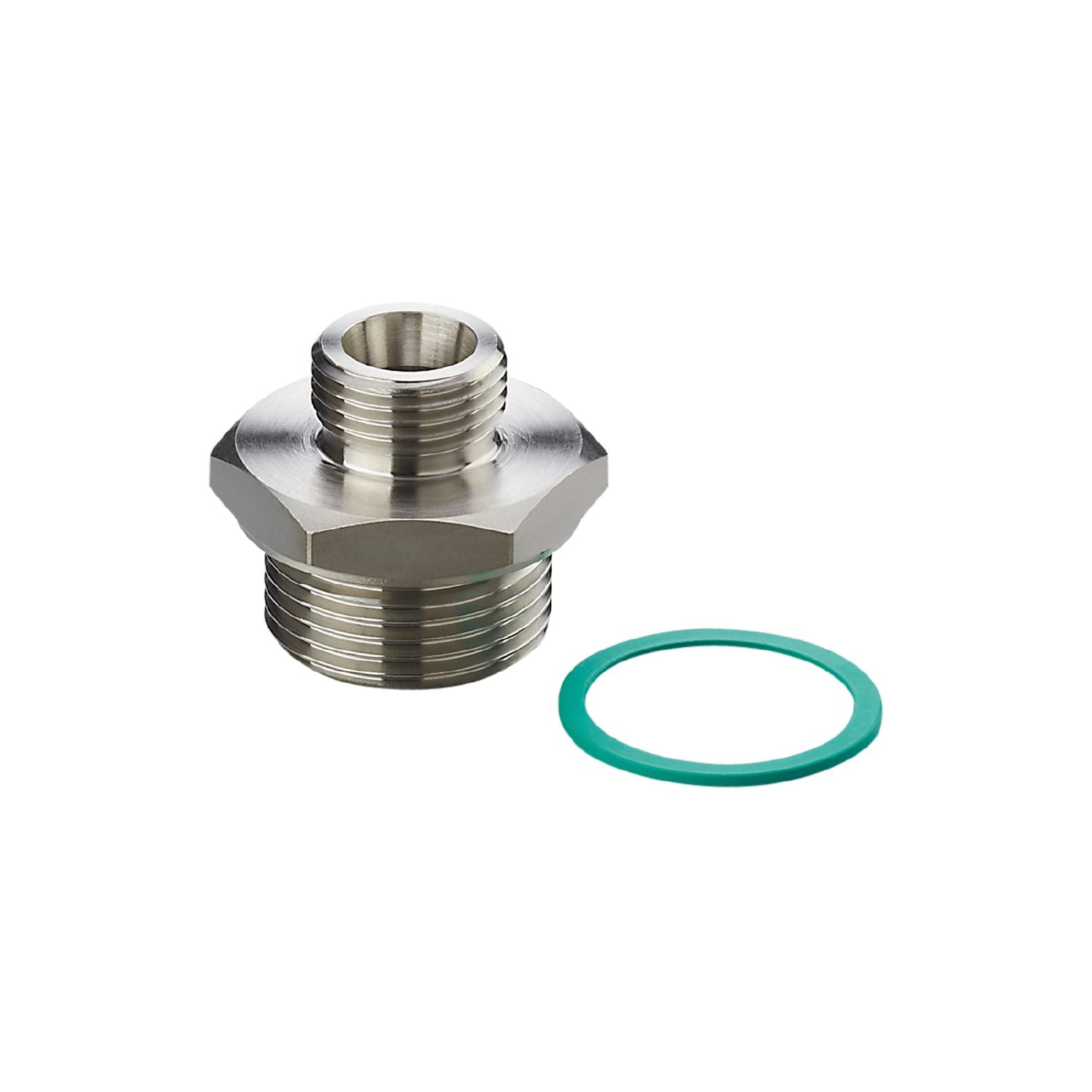

IFM E40238 - Screw-in adapter for process sensors ADAPT SI/G3/4/VA

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Suitable for liquids and gases.
High permissible overload pressure rating.
Robust stainless steel design for use in harsh industrial environments

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	300

Weight [g]	90.7
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M18 x 1,5 internal thread
Process connection	threaded connection G 3/4
Insertion depth [mm]	21;(measuring probe SID, SFD, TN)

Accessories

Items supplied	O-ring: 1, FKM

Pack quantity	1 pcs.
