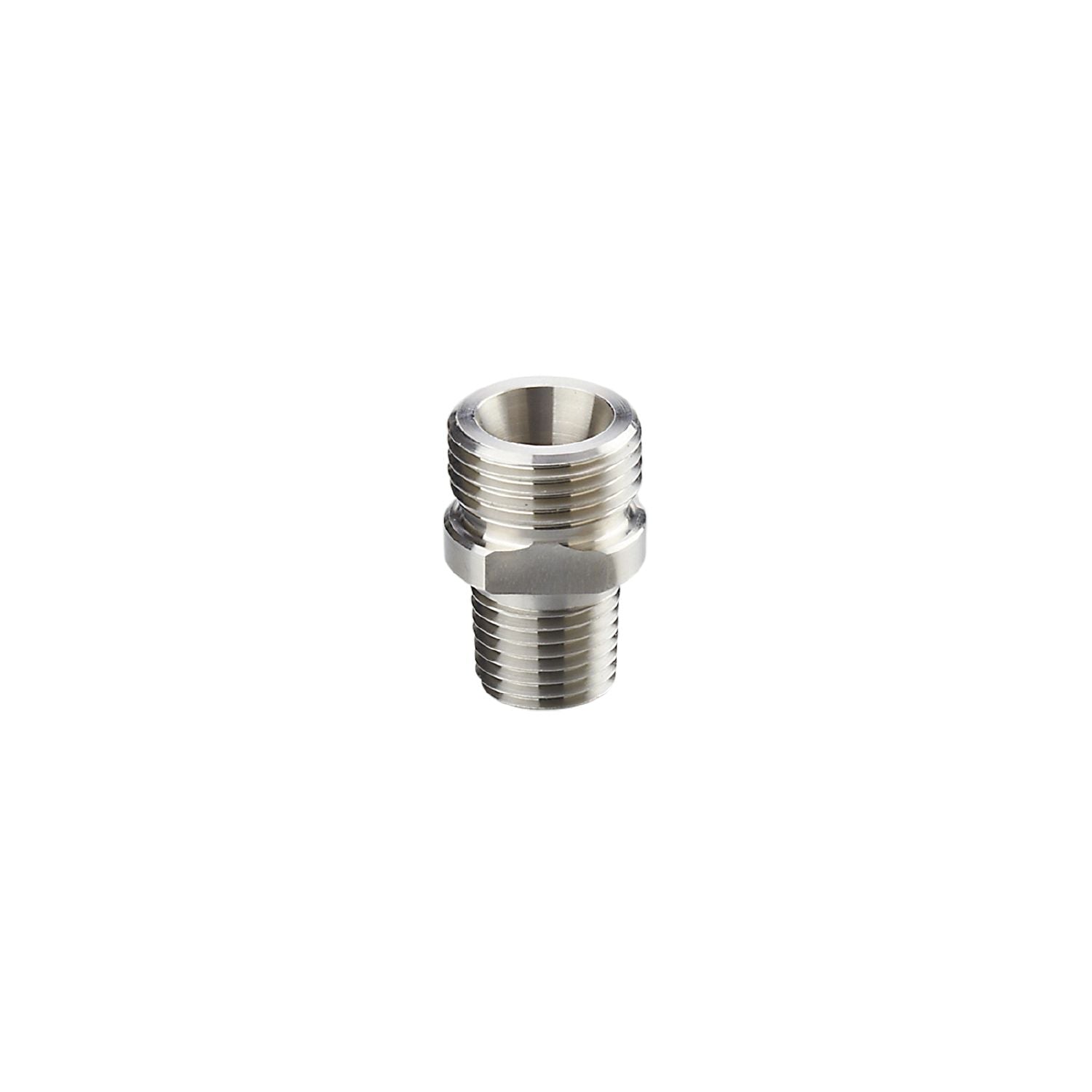

IFM E40242 - Screw-in adapter for process sensors ADAPT /SI/1 - 1/4NPT

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Suitable for liquids and gases.
Very high, reliable overload pressure rating.
Robust stainless steel design for use in harsh industrial environments

Media	liquids and gases
Pressure rating [bar]	300

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	21.2
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M18 x 1,5
Process connection	threaded connection 1/4" NPT

Pack quantity	1 pcs.
