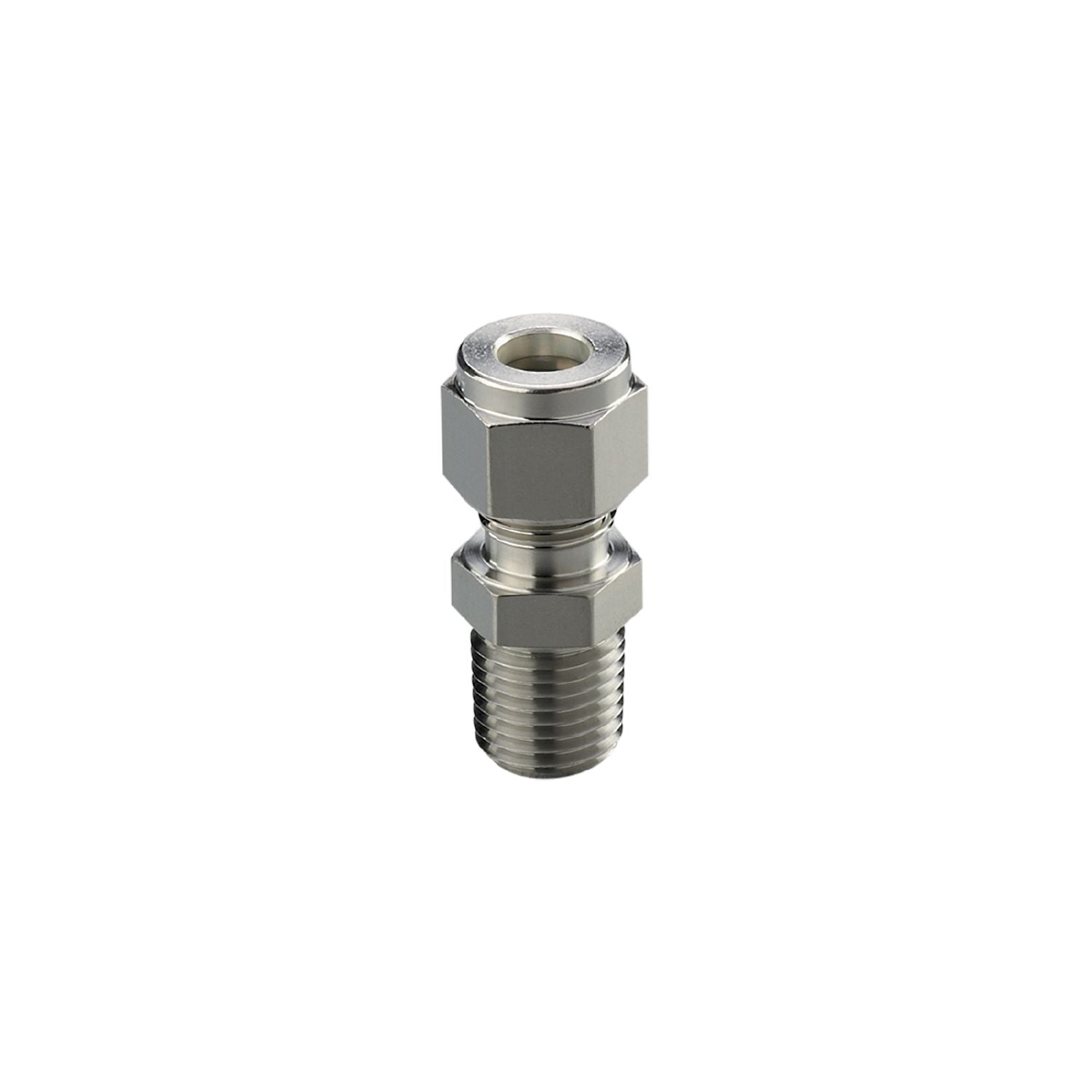

IFM E40262 - Progressive ring fitting COMPRESSION FITTING 1/4 NPT

For a quick and easy mounting of temperature sensors.
User-friendly setting of the requested immersion depth of the sensor.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Installation	Progressive ring fitting
Pressure rating [bar]	50
MAWP (for applications according to CRN) [bar]	50

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	38.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	Ø 8 mm
Process connection	threaded connection 1/4" NPT

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40262-00 — 05.11.2015 —
