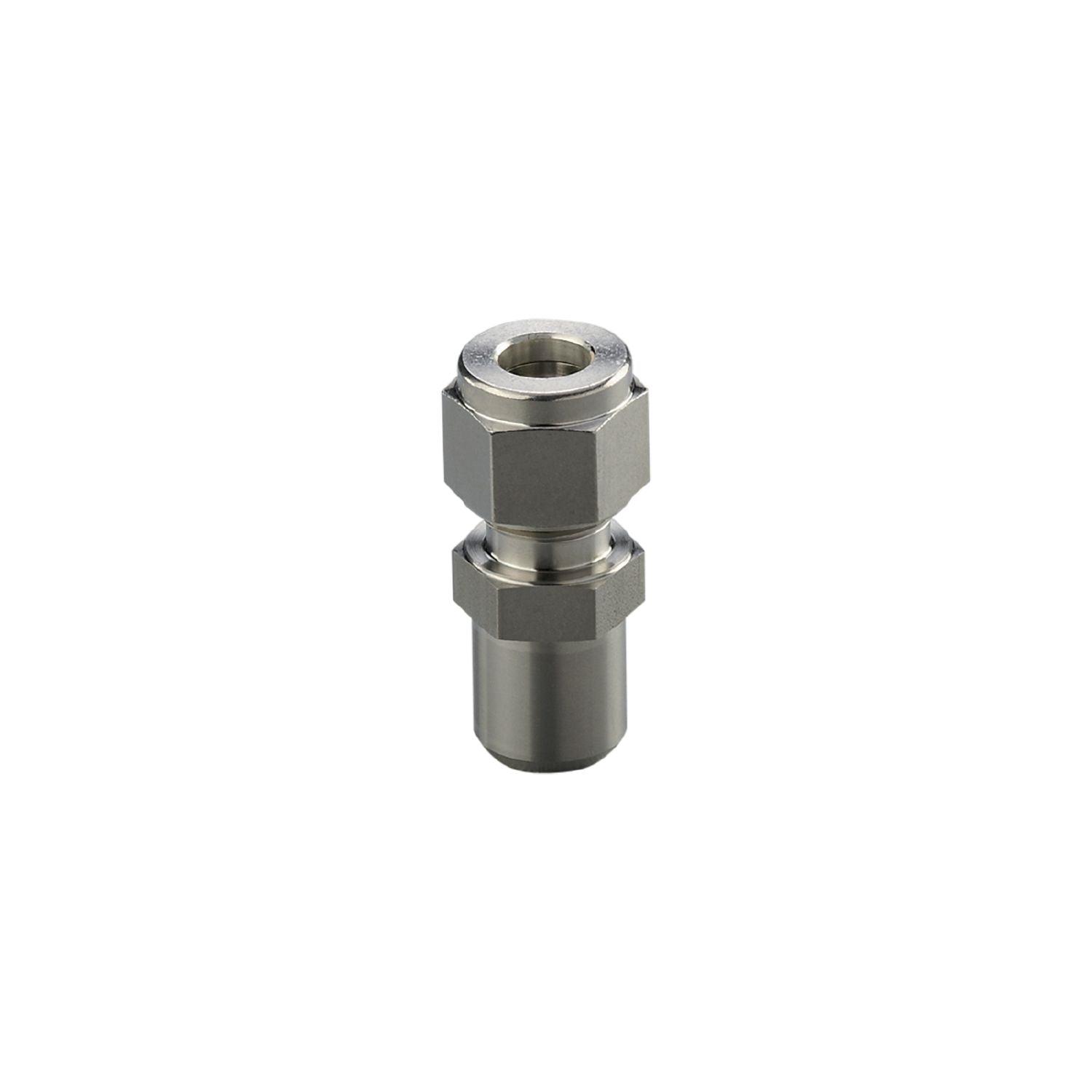

IFM E40265 - Welding adapter for process sensors WELDING ADAPT D8

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating.
Easy adjustment of the immersion depth of the sensor

Installation	Clamp fitting
Pressure rating [bar]	50

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	41.05
Dimensions [mm]	Ø 13.7
Materials	stainless steel (1.4404 / 316L)
Sensor connection	Ø 8 mm
Process connection	welding adapter Ø 13,7 mm

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40265-00 — 05.01.2016 —
