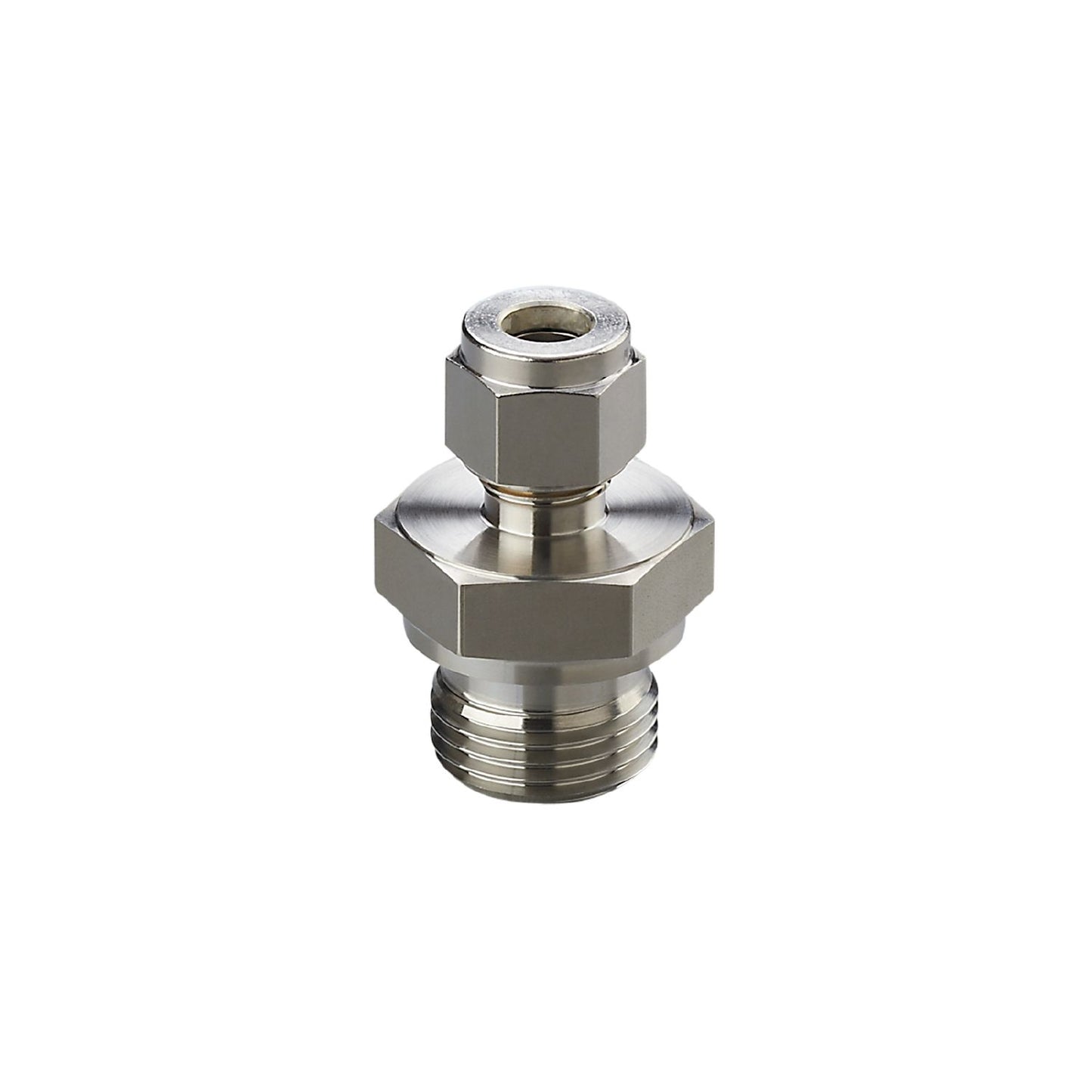

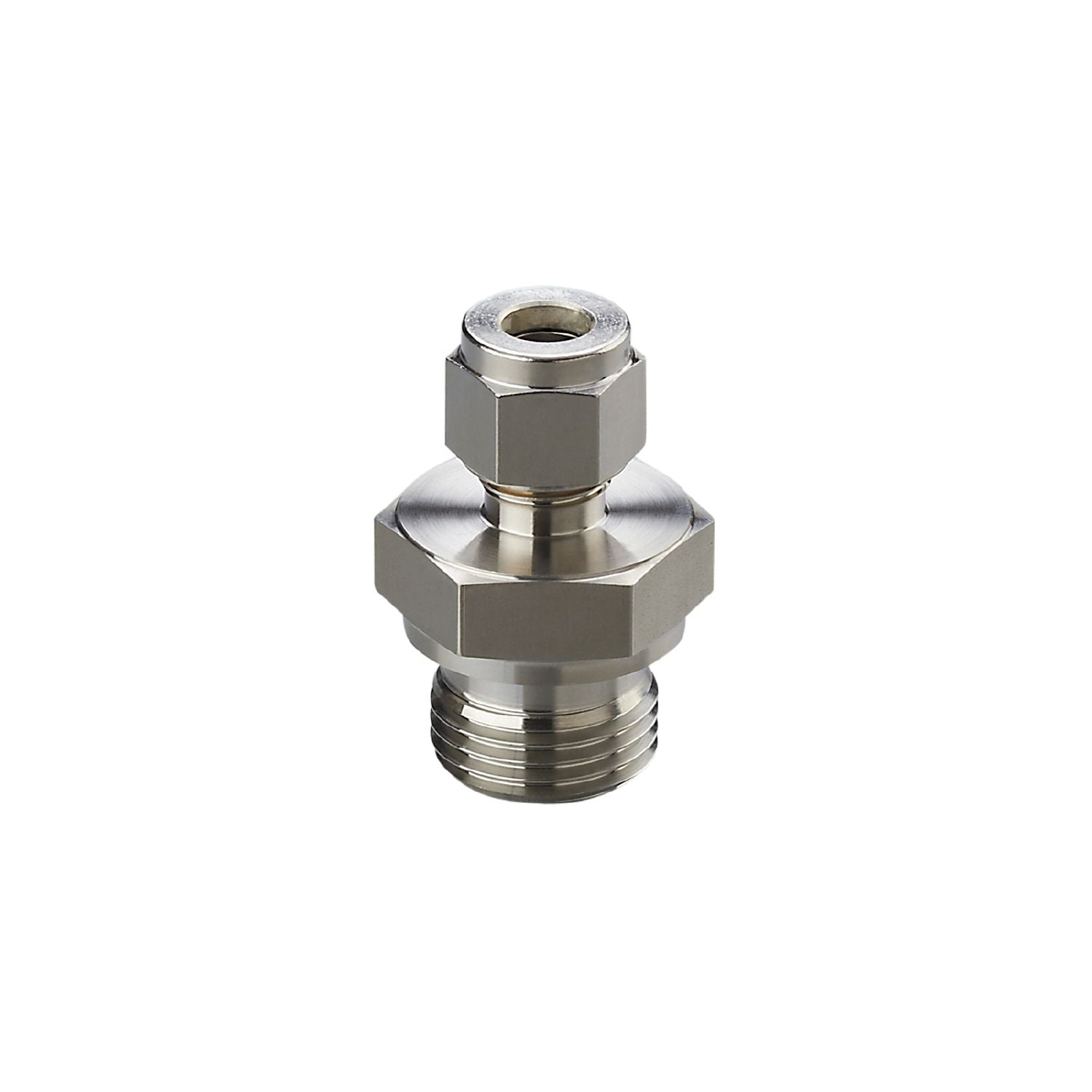

IFM E40267 - Progressive ring fitting COMPRESSION FITTING G1/2 METALLIC SEALIN

For a quick and easy mounting of temperature sensors.
User-friendly setting of the requested immersion depth of the sensor.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Installation	Progressive ring fitting
Pressure rating [bar]	50

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	93.5
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	100
Sensor connection	Ø 8 mm
Process connection	threaded connection G 1/2

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40267-00 — 09.03.2016 —
