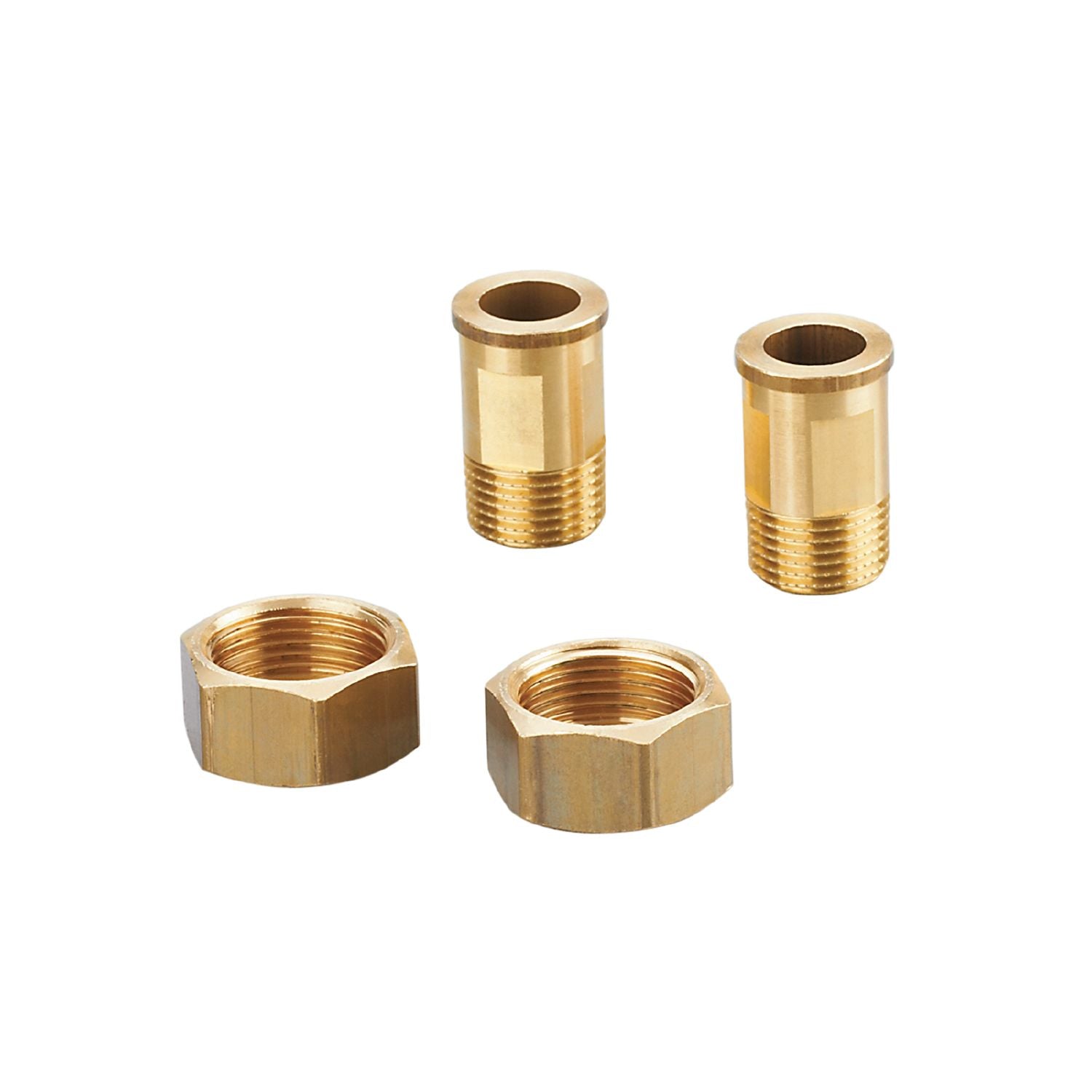

IFM E40440 - Mounting adapter for flow sensors ADAPTER G3/4-R1/2/MS/SV

For the installation of flow sensors in pipes.
Easy, quick and secure mounting.
High permissible overload pressure rating.
Robust design for use in harsh industrial environments

Design	for flow sensors Typ SV5x5x, SV6x5x

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	222
Materials	brass
Sensor connection	G 3/4
Process connection	threaded connection R 1/2

Pack quantity	2 pcs.
