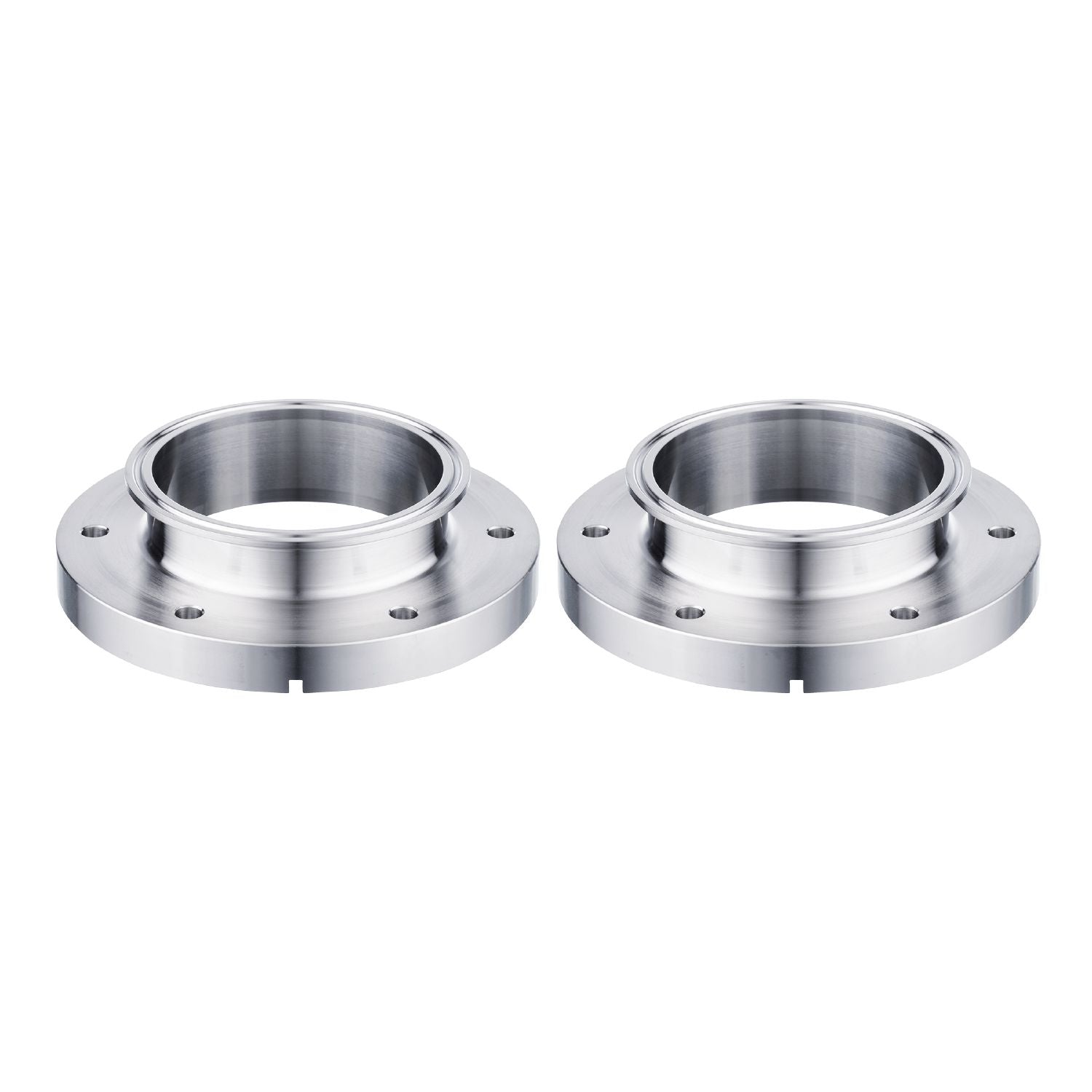

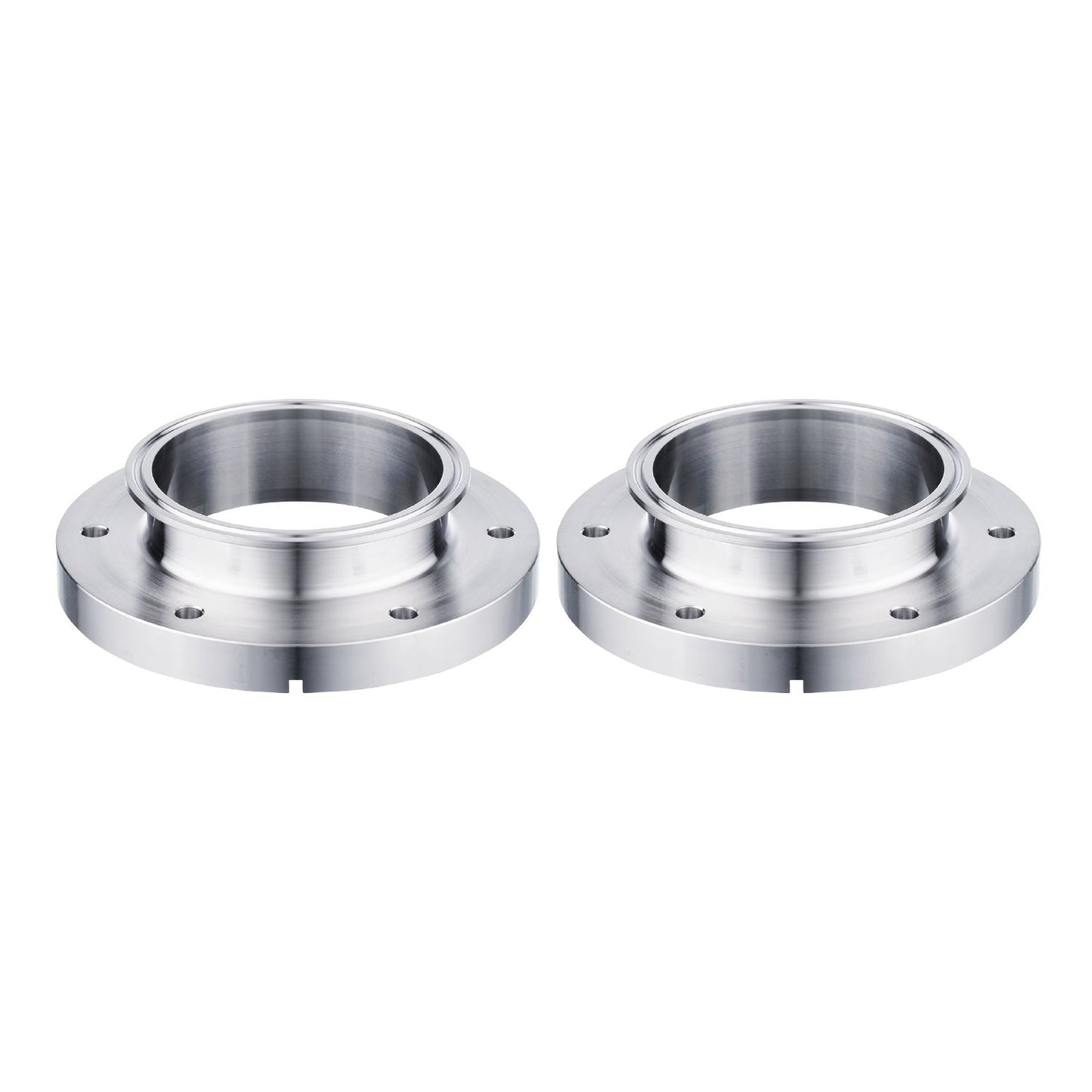

IFM E40486 - process adapter clamp ISO 2852 ADAPT ISO2852 DN100

Installation in combination with the hygienic flow meter (SMF series).
For installation in pipes.
Easy, quick and secure mounting.
Food-grade stainless-steel adapters.
Version with leakage port

Design	for volumetric flow meters SMF
Application	food and beverage industry; hygienic systems
Pressure rating	10 bar 1 MPa

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	5000
Materials	stainless steel (1.4404 / 316L)
Nominal diameter	DN100 (4“)
Sensor connection	ifm-specific device flange
Process connection	Clamp ISO 2852
Process connection suitable for pipe standard	(ISO 2037);(DIN EN 10357 Series D);(BS 4825 Part 1)
Surface characteristics Ra/Rz of the wetted parts	Ra ≤ 0.4 µm

Accessories

Items supplied	screws 12

Pack quantity	2 pcs.
