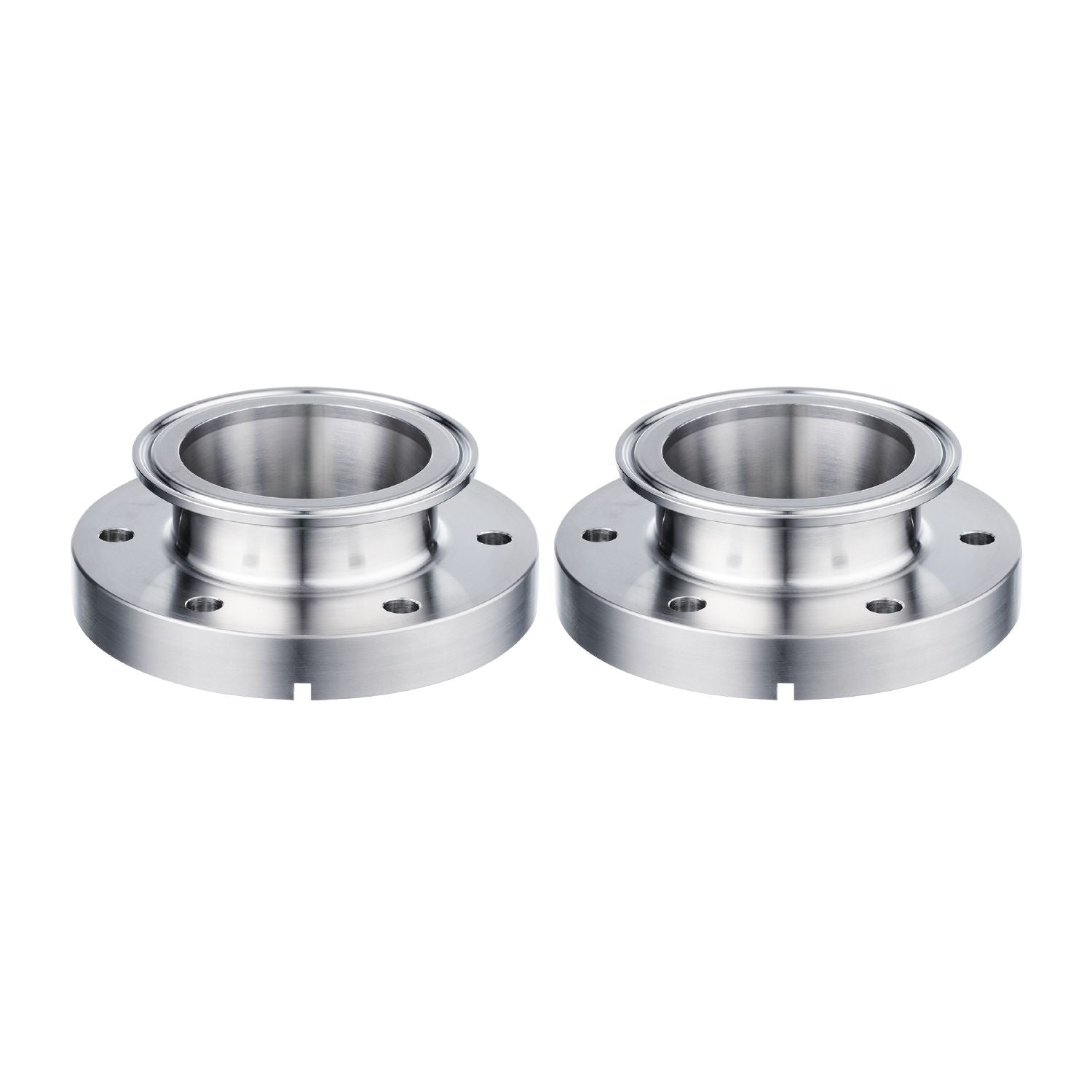

IFM E40494 - process adapter clamp DIN 32676 series A ADAPT DIN32676-A DN65

Installation in combination with the hygienic flow meter (SMF series).
For installation in pipes.
Easy, quick and secure mounting.
Food-grade stainless-steel adapters.
Version with leakage port

Design	for volumetric flow meters SMF
Application	food and beverage industry; hygienic systems
Pressure rating	16 bar 1.6 MPa

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	3685.7
Materials	stainless steel (1.4404 / 316L)
Nominal diameter	DN65 (2 1/2“)
Sensor connection	ifm-specific device flange
Process connection	Clamp DIN 32676 series A
Process connection suitable for pipe standard	(DIN EN 10357 series A);(DIN 11866 series A);(DIN 11850 series 2)
Surface characteristics Ra/Rz of the wetted parts	Ra ≤ 0.4 µm

Accessories

Items supplied	screws 12

Pack quantity	2 pcs.
