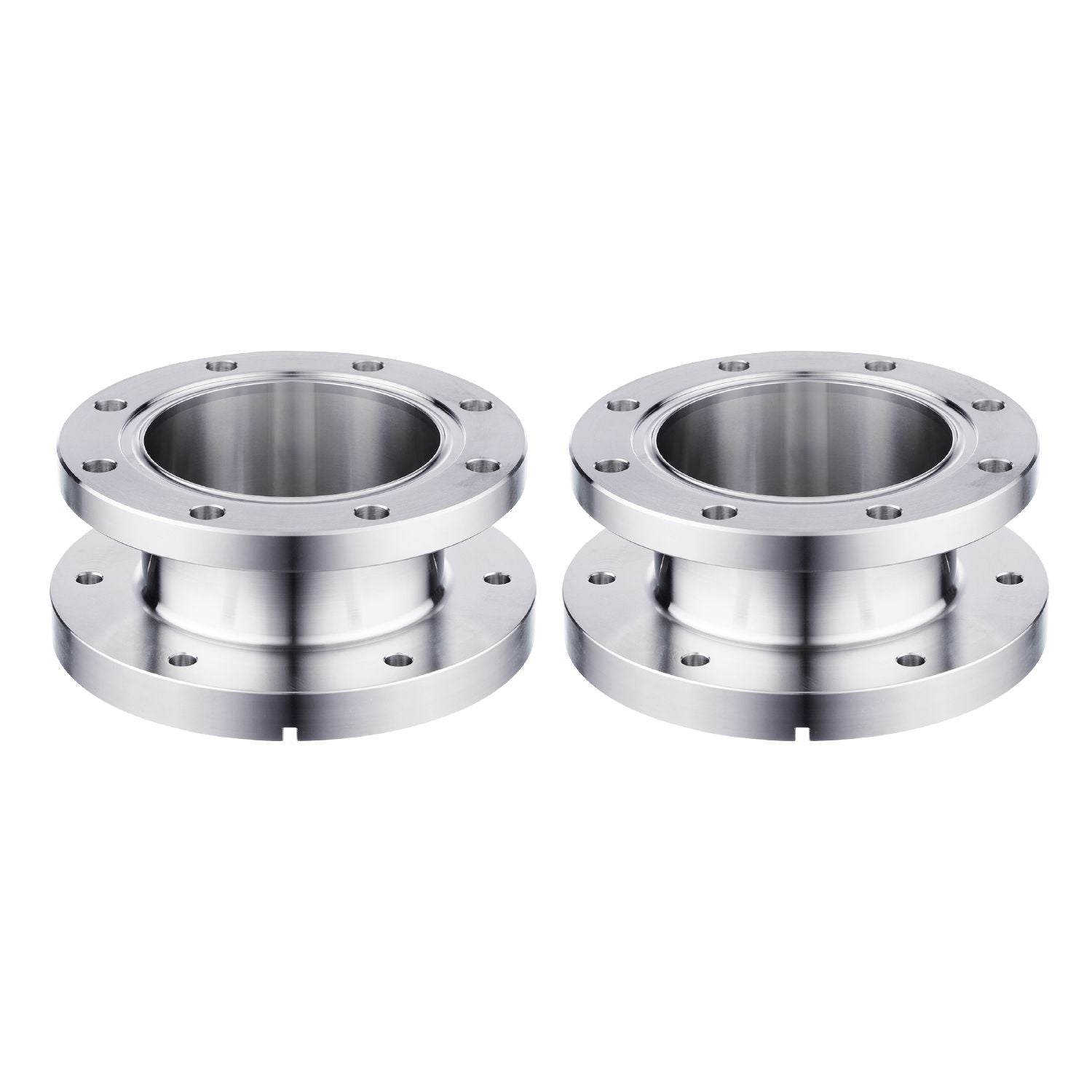

IFM E40526 - process adapters aseptic flange DIN11864-2A ADAPT DIN11864-2A DN100

Installation in combination with the hygienic flow meter (SMF series).
For installation in pipes.
Easy, quick and secure mounting.
Food-grade stainless-steel adapters.
Version with leakage port

Design	for volumetric flow meters SMF
Application	food and beverage industry; hygienic systems
Pressure rating	16 bar 1.6 MPa

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	7323
Materials	stainless steel (1.4404 / 316L)
Nominal diameter	DN100 (4“)
Sensor connection	ifm-specific device flange
Process connection	aseptic flange DIN 11864-2A
Process connection suitable for pipe standard	DIN EN 10357 series A; DIN 11866 series A; DIN 11850 series 2
Surface characteristics Ra/Rz of the wetted parts	Ra ≤ 0.4 µm

Accessories

Items supplied	screws 12

Pack quantity	2 pcs.
