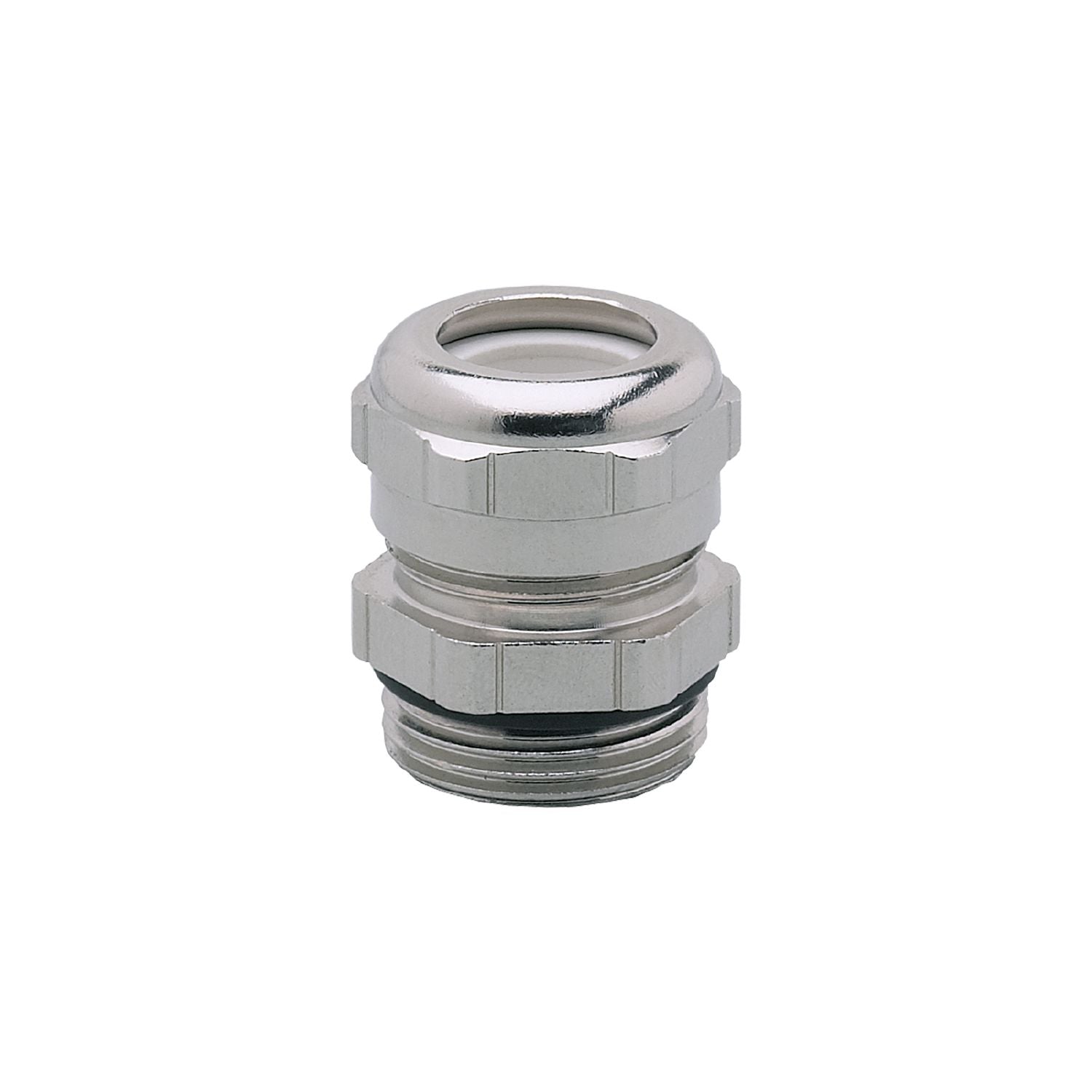

IFM E43019 - Clamp fitting for process sensors FITTING LI G3/4/D16

For the installation of capacitive level sensors in containers.
Easy, quick and secure mounting.
User-friendly setting of the requested immersion depth of the sensor.
Robust stainless steel design for use in harsh industrial environments

Design	for capacitive level sensors LI
Installation	Clamp fitting
Pressure rating [bar]	0.5

Operating conditions

Ambient temperature [°C]	0...60

Weight [g]	67.8
Dimensions [mm]	Ø 31 / L = 36
Materials	brass nickel-plated; TPE; Sealing: FKM
Tightening torque [Nm]	10
Sensor connection	Ø 16 mm
Process connection	threaded connection G 3/4 external thread

Pack quantity	1 pcs.
