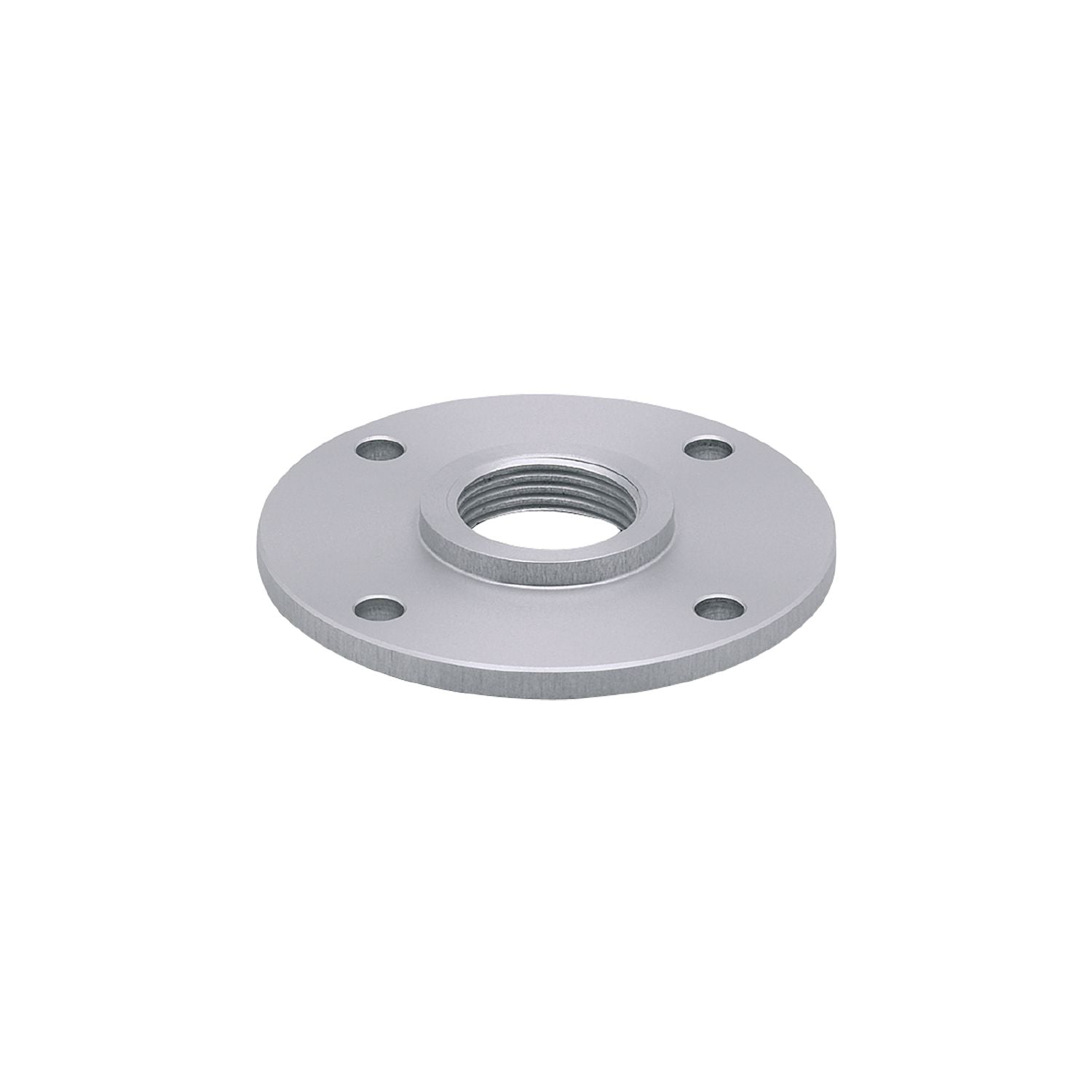

IFM E43202 - Flange plate for level sensors FLANGE PLATE 65-80/G3/4

Optional for the operation of level sensors with guided wave radar.
Easy, quick and inexpensive mounting in the tank lid

Design	for level sensors LR
Tank pressure [bar]	-1...16;(depending on the used seal)

Weight [g]	196.4
Materials	flange: stainless steel (1.4305 / 303)
Tightening torque [Nm]	6...9
Sensor connection	threaded connection G 3/4 internal thread
Process connection	flange Ø 80 mm

Pack quantity	1 pcs.
